nVent CTD484812 HOFFMAN CONCEPT 2DOOR ANSI61

Product Description

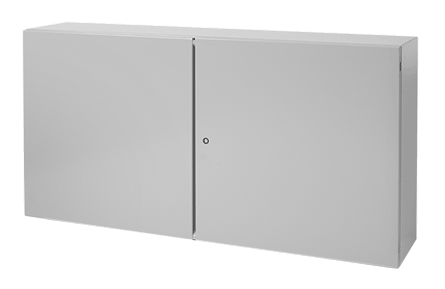

The nVent HOFFMAN CONCEPT 2-door enclosure, model CTD484812, is designed for machine control applications. This enclosure measures forty-eight inches in length, forty-eight inches in width, and twelve inches in depth. It features a NEMA 12 rating, making it suitable for indoor use in non-hazardous environments. The enclosure is made of steel and comes with a concealed hinged cover. This design provides a clean aesthetic and ensures durability.

• Designed for machine control applications
• Two-door access for easy panel installation
• NEMA 12 rated for indoor use

Product Highlights

This enclosure supports streamlined styling and offers features such as quarter-turn latches for security and easy access. The panels are 46.2 inches in width and height, accommodating a variety of equipment.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351029451

Technical Specifications

• Application: Machine Control Applications
• Color: Gray
• Cover Type: Concealed Hinged
• Depth: 12 inches
• Finish: Polyester Powder Painted
• Includes: Panel Mounting Nuts, Panel Grounding Hardware and Sealing Washers
• Length: 48 inches
• Lock: Quarter Turn Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12
• Panel Size: 46.2 inches W x 46.2 inches H
• Series: CW1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42186, VDE Approved, IEC 60529, UL 508A
• Type: 2-Door
• Width: 48 inches
