Nvent CSP3024 Swing-out Panel

Product Description

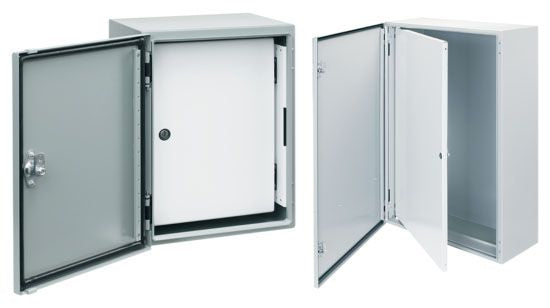

The NVENT CSP3024 is a swing-out panel designed for use inside electrical enclosures, providing a mountable interior surface for organizing and securing control components, terminal blocks, DIN rail, and related hardware. Weighing 22.8 pounds, this panel swings outward on hinges to allow front and rear access to wiring and mounted devices without requiring full removal of the panel. It is a standard-format solution for panel builders, industrial electricians, and control systems integrators working with mid-to-large-format enclosures.

Swing-out panels are commonly specified in commercial and industrial control panel builds where technicians need quick access to both sides of the panel for wiring, troubleshooting, or component replacement. This panel suits applications in manufacturing facilities, process control environments, and mechanical rooms where enclosure space is limited and serviceability is a priority. It is installed by licensed electricians or panel builders following applicable NEC guidelines for enclosure component mounting.

Key Features

• Swing-out design provides front and rear access without full panel removal
• Suitable for mounting terminal blocks, DIN rail, and control components
• Sturdy construction supports organized wiring layouts inside enclosures
• Compatible with standard enclosure mounting configurations

Compatibility

Designed as an OEM-style replacement or direct-fit swing-out panel for compatible NVENT enclosure systems. Refer to enclosure documentation to confirm panel size fitment before installation.

Installation Notes

Installation should be performed by a qualified electrician or panel builder. De-energize the enclosure and verify zero voltage at all terminals before mounting or servicing components on this panel. Follow applicable NEC requirements for enclosure wiring and component spacing. Confirm hinge alignment and panel clearance within the enclosure before final fastening.

Technical Specifications

• Weight: 22.8 pounds
• UPC: 78351012440

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CSP3024
