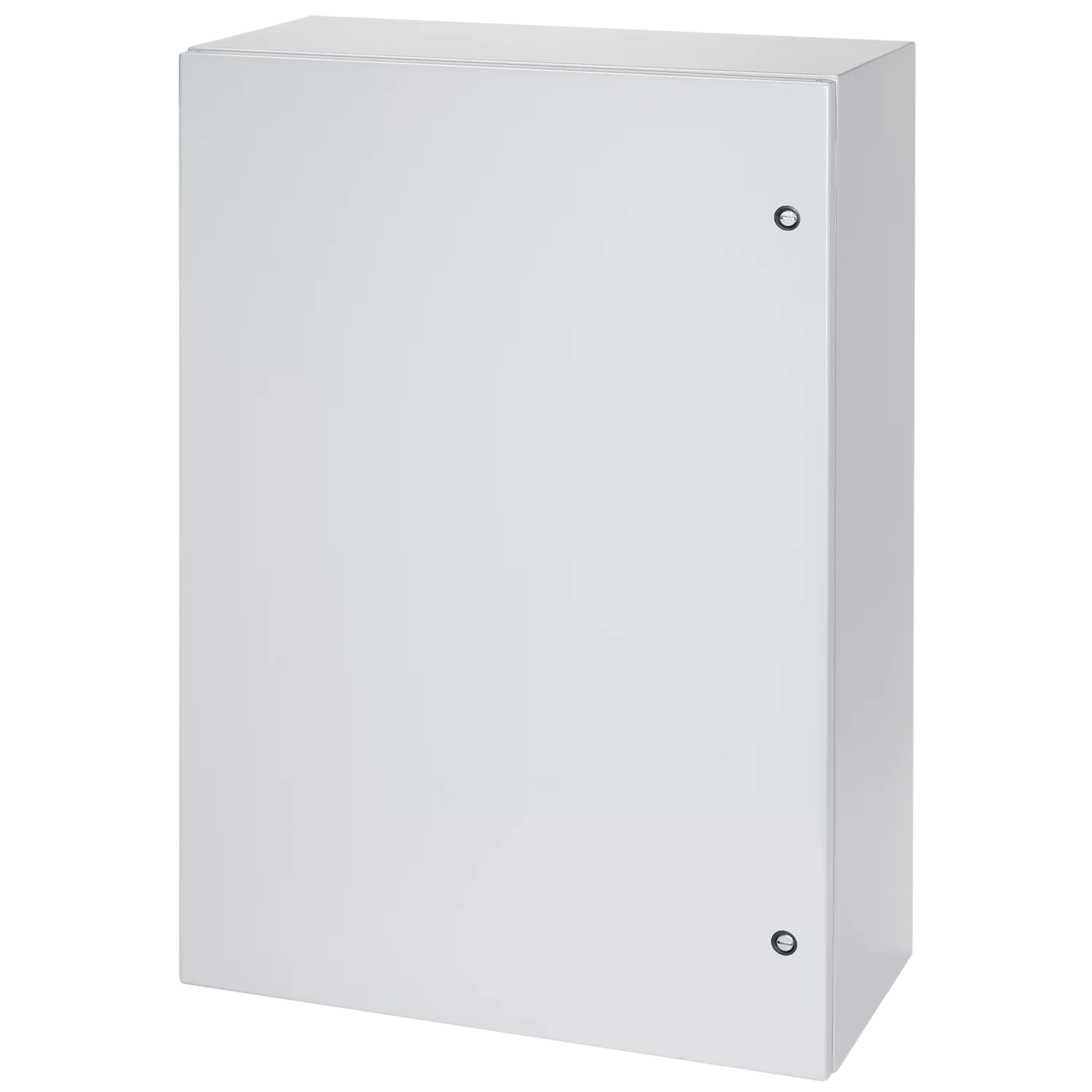

nVent CSD30208LG HOFFMAN Enclosure 30.00x20.00x8.00

Product Description

nVent CSD30208LG is a 1-door enclosure designed for machine control applications. The enclosure measures thirty inches in length, twenty inches in width, and eight inches in depth. It has a NEMA 4/12 rating which provides excellent protection in various environments.

• Seamless foam in place gasket
• Concealed hinged cover for clean appearance
• Quarter turn latch for secure closure

Product Highlights

This enclosure is built from steel and finished with a polyester powder coat. It features a removable door with hidden hinges and is easy to install on walls.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351016019

Technical Specifications

• Application: Machine Control Applications
• Color: Light Gray
• Cover Type: Concealed Hinged
• Depth: 8 inches
• Finish: Polyester Powder Painted
• Includes: Panel Mounting Nuts, Panel Grounding Hardware, and Sealing Washers
• Length: 30 inches
• Lock: Quarter Turn Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/12
• Panel Size: 18.2 inches W x 28.2 inches H
• Series: CW1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997, CSA File No. 42186, IEC 60529, RoHS Compliant, VDE Approved, UL 508A, UL File No. E61997
• Type: 1-Door
• Width: 20 inches
