nVent CSD242010 Enclosure Hoffman 24 in x 20 in x 10 in NEMA 4/12

Product Description

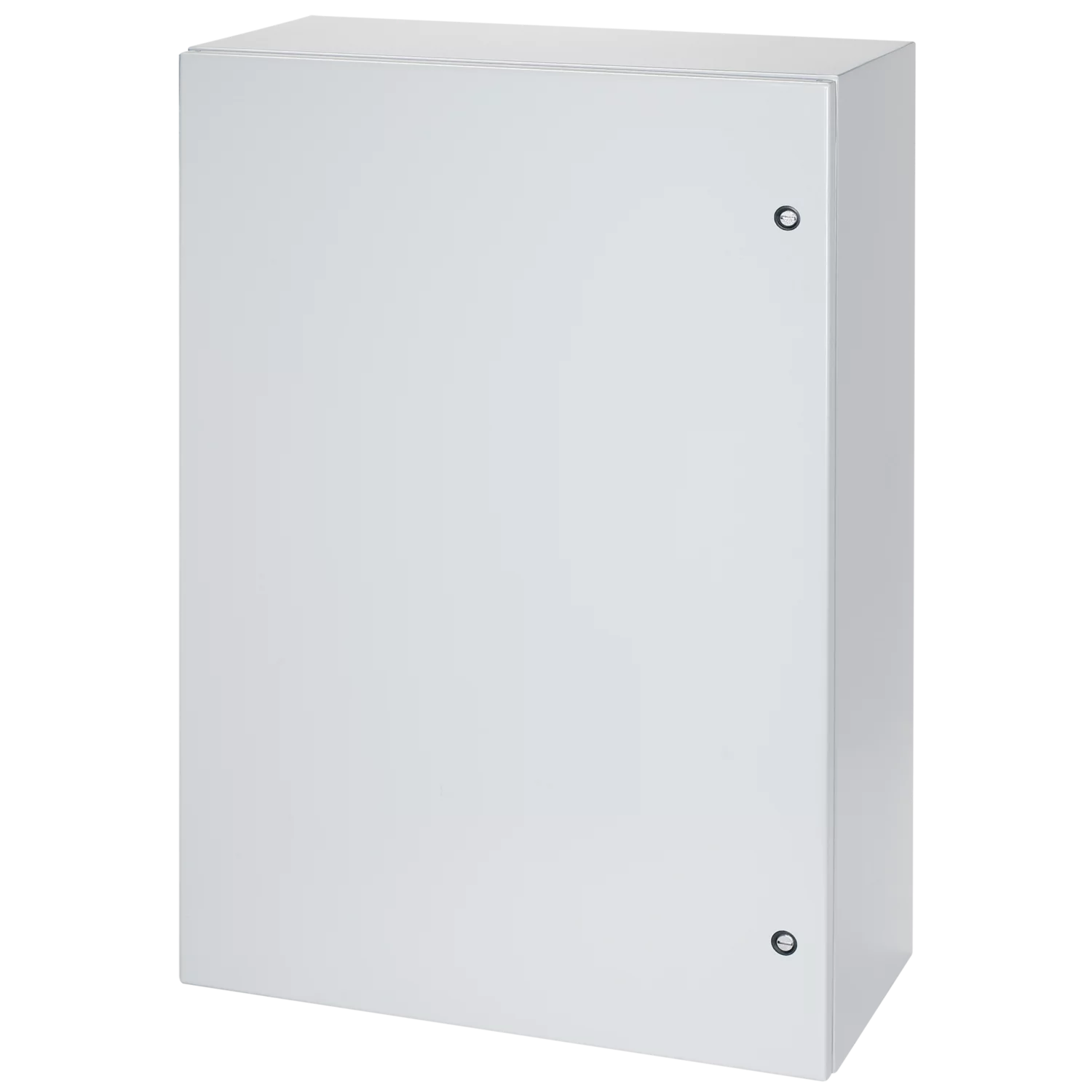

The nVent CSD242010 is a one-door enclosure designed for machine control applications. This enclosure measures twenty-four inches in length, twenty inches in width, and ten inches in depth, featuring a NEMA four/12 rating. It has a concealed hinged cover and is constructed from steel with a durable polyester powder finish.

• Durable steel construction
• NEMA 4/12 rating for environmental protection
• Wall mount installation

Product Highlights

This enclosure provides an attractive and practical solution for housing electrical controls and components in various environments.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: CSD242010

Technical Specifications

• Application: Machine Control Applications
• Color: Gray
• Cover Type: Concealed Hinged
• Depth: 10 inches
• Finish: Polyester Powder Painted
• Includes: Panel Mounting Nuts, Panel Grounding Hardware and Sealing Washers
• Length: 24 inches
• Lock: Quarter Turn Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/12
• Panel Size: 18.2 inches W x 22.2 inches H
• Series: CW1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42186|IEC 60529|RoHS Compliant|VDE Approved|UL 508A|UL File No. E61997
• Type: 1-Door
• Width: 20 inches
