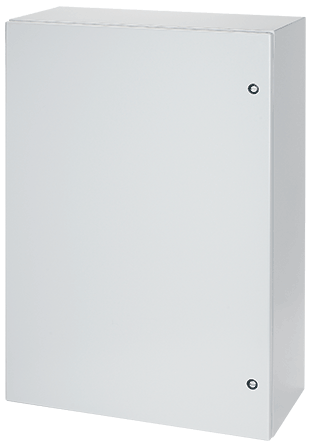

nVent CSD20168LG HOF Enclosure 20 in L x 16 in W x 8 in D

Product Description

The nVent HOFFMAN CSD20168LG is a wall mount enclosure designed for various machine control applications. It features a single door with a concealed hinged cover for added aesthetic appeal. The enclosure measures twenty inches in length, sixteen inches in width, and eight inches in depth. Its NEMA 4/12 rating ensures protection against dust and water ingress.

• Wall mount design for versatile installation.
• Durable steel construction with powder-painted finish.
• Concealed hinged cover for improved aesthetics.

Product Highlights

This enclosure is well-suited for machine control, providing reliable protection and accessibility.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: CSD20168LG

Technical Specifications

• Application: Machine Control Applications
• Color: Light Gray
• Cover Type: Concealed Hinged
• Depth: 8 inches
• Finish: Polyester Powder Painted
• Includes: Panel Mounting Nuts, Panel Grounding Hardware and Sealing Washers
• Length: 20 inches
• Lock: Quarter Turn Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/12
• Panel Size: 14.2 inches W x 18.2 inches H
• Series: CW1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997; CSA File No. 42186; IEC 60529; RoHS Compliant; VDE Approved; UL 508A; UL File No. E61997
• Type: 1-Door
• Width: 16 inches
