nVent CSD201610LG HOFFMAN Wall-Mount Type 4,12 Enclosure

Product Description

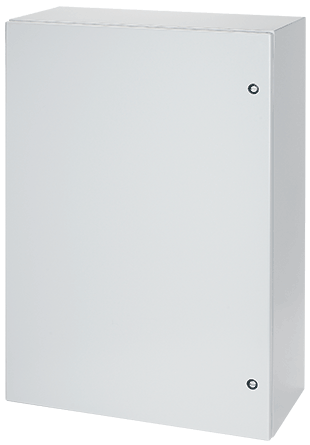

The nVent HOFFMAN CONCEPT CSD201610LG is a wall-mount enclosure designed for machine control applications. This single-door model measures twenty inches in length, sixteen inches in width, and ten inches in depth. It features a NEMA 4/12 rating, making it suitable for various environments. The enclosure includes a concealed hinged cover and a quarter turn latch for security.

• Dimension: 20 inches in length, 16 inches in width, 10 inches in depth
• Material: Steel with polyester powder painted finish
• NEMA 4/12 rating for environmental protection

Product Highlights

This enclosure is ideal for housing electronic equipment and controls. Its design promotes ease of access and installation.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351037609

Technical Specifications

• Application: Machine Control Applications
• Color: Light Gray
• Cover Type: Concealed Hinged
• Depth: 10 inches
• Finish: Polyester Powder Painted
• Includes: Panel Mounting Nuts, Panel Grounding Hardware, and Sealing Washers
• Length: 20 inches
• Lock: Quarter Turn Latch
• Manufacturer Part Number: CSD201610LG
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/12
• Panel Size: 14.2 inches W x 18.2 inches H
• Series: CW1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42186, IEC 60529, RoHS Compliant, VDE Approved, UL 508A
• Type: 1-Door
• Width: 16 inches
