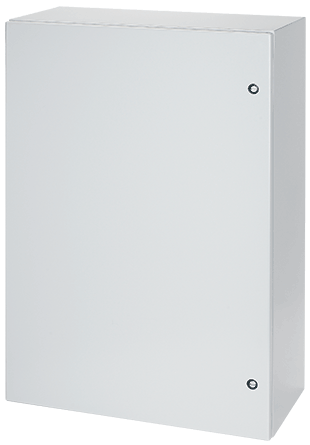

nVent CSD16166 HOF Solid Door Enclosure 1-Door NEMA 4/12

Product Description

nVent HOFFMAN Concept Enclosure, MPN CSD16166, is designed as a 1-door enclosure suited for machine control applications. The dimensions are sixteen inches in length, sixteen inches in width, and six inches in depth. This enclosure meets NEMA 4/12 standards and features a concealed hinged cover for easy access.

• Constructed from steel with a polyester powder paint finish
• Includes panel mounting nuts and grounding hardware
• Designed for wall mounting

Product Highlights

The enclosure is ideal for housing electrical components and protecting them from dust and water ingress, ensuring reliable operation in various environments.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: CSD16166

Technical Specifications

• Application: Machine Control Applications
• Color: Gray
• Cover Type: Concealed Hinged
• Depth: 6 inches
• Finish: Polyester Powder Painted
• Length: 16 inches
• Lock: Quarter Turn Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/12
• Panel Size: 14.2 inches W x 14.2 inches H
• Series: CW1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, RoHS Compliant, VDE Approved, UL 508A
• Type: 1-Door
• Width: 16 inches
