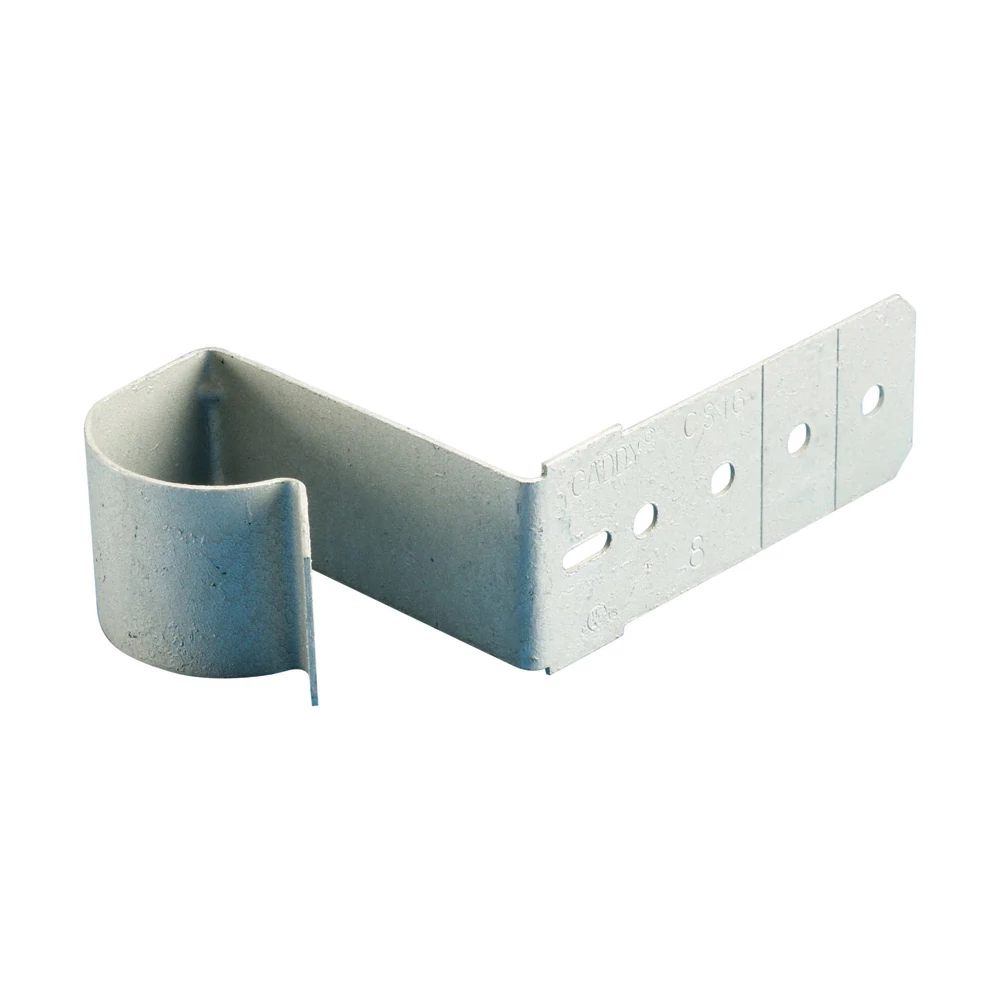

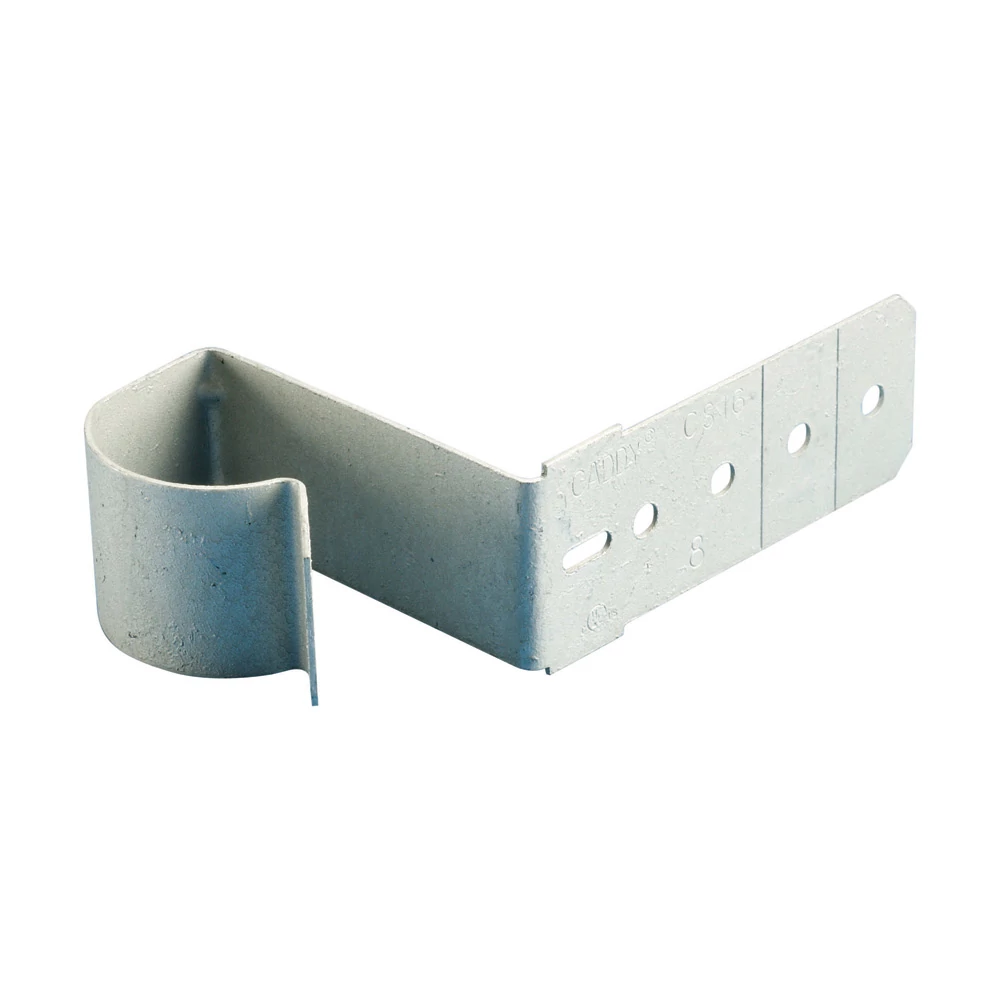

Nvent CS16 attachment stud to cbl/conduit spr stl 1 in EMT conduit

Product Description

The NVENT CS16 is a CADDY CS812 screw-on cable/conduit to stud attachment designed for 1 inch EMT conduit. Constructed from spring steel with a Caddy Armor finish, this attachment supports conduit within 2-1/8 inch D boxes. It is suitable for both wood and metal studs, ensuring proper alignment and eliminating offset bending. This attachment is compliant with NEC Article 358.30(A) and CEC Rules 12-1404 and 12-618 for conduit and armored cable support.

• Accommodates EMT conduit and MC/AC cable for versatile applications.
• Facilitates easy fastener location on studs, aligning conduit with box knockouts.
• Suitable for both wood and metal stud installations, enhancing flexibility.

Product Highlights

This screw-on attachment provides secure and compliant support for 1 inch EMT conduit and MC/AC cable on wood or metal studs, featuring a durable Caddy Armor finish.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CS16
• Country of Origin: US

Technical Specifications

• Type: Screw-On
• Finish: Caddy Armor
• Series: CS812
• Manufacturer: nVent
• Box Depth: 2-1/8 in D Box
• Material: Spring Steel
• Trade Size: 1 Inch
• Applications: Electrical Fixing, Fastening, Data Communication and Low Voltage Applications
• Sub Brand: CADDY
• Certifications: cUL - CSA-C22.2 No. 18.5, UL - ANSI/UL 1565, CULus®, BABA Compliant, UL Recognized, cUL Recognized, cULus Listed, cULus Recognized, cUL ZODZ7.E256718, UL ZODZ.E256718, NEC 358.30(A), CEC 12-1404, CEC 12-618, RoHS Compliant
• Country of Origin: US
• Flange Size: 5/16 to 1/2
• Load Capacity: 15 lb Ultimate Static
• Mounting Type: Side
• Suitable For Use With: EMT, Rigid, IMT and Aluminum Conduit
