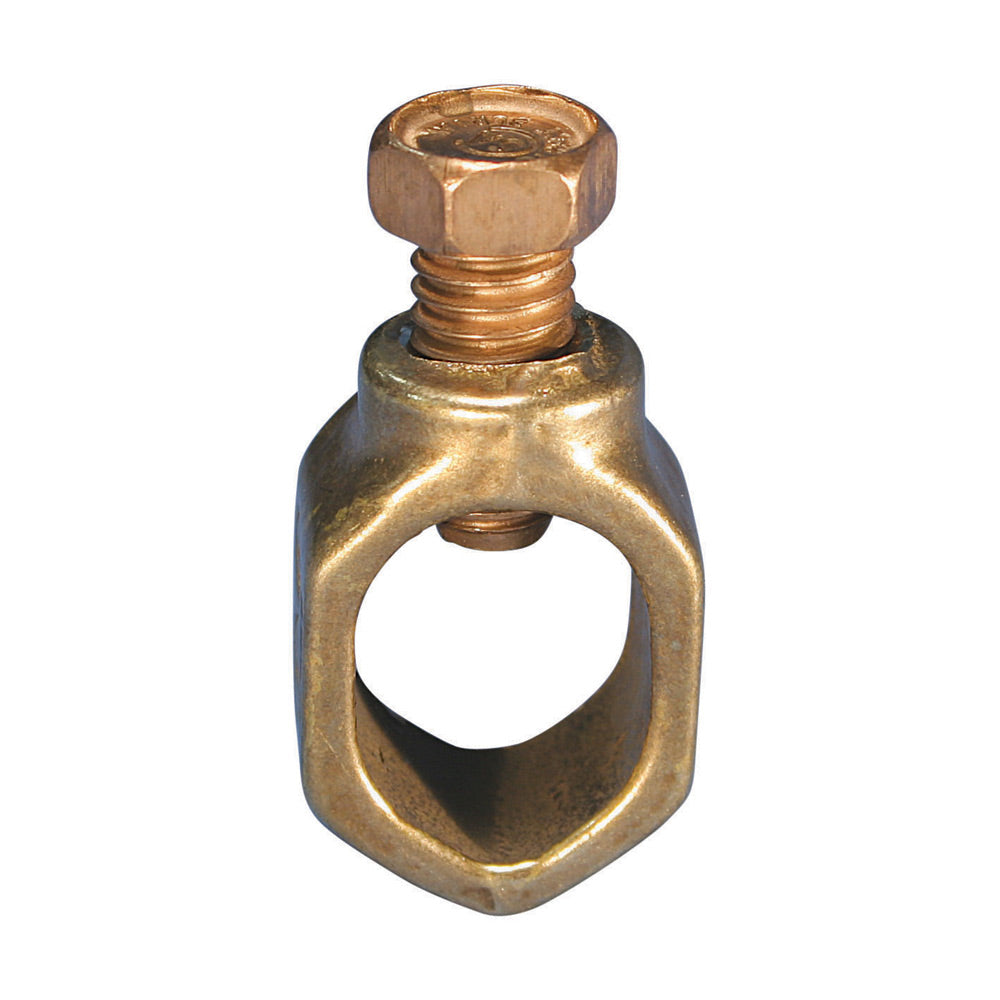

nVent CP58 ERICO Ground Rod Clamp Standard Duty, 1/2 to 5/8 in Diameter Rods

Product Description

The nVent ERICO CP58 Ground Rod Clamp is designed for connecting ground rods with a diameter ranging from one half to five eighths inches. It accommodates solid conductors from 10 AWG to 2 AWG stranded conductors, providing a reliable connection for electrical grounding.

• For use with copper bonded ground rods
• UL Listed parts suitable for direct burial
• Compatible with various grounding applications

Product Highlights

This clamp is suitable for a broad range of grounding tasks, making it versatile for both residential and commercial projects.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78285630703

Technical Specifications

• Conductor Size: 10 AWG Solid to 2 AWG Stranded, 6 sq-mm Solid to 25 sq-mm Stranded
• Conductor Type: Solid/Stranded
• Connection Type: Rod to Conductor
• Manufacturer Part Number: CP58
• Material: Silicon Bronze
• Rod Size: 1/2 to 5/8 in
• Standards/Approvals: IEC EN 62561-1, CSA File No. 46866, cULus Listed, Qualifoudre Approved, RUS Certified
