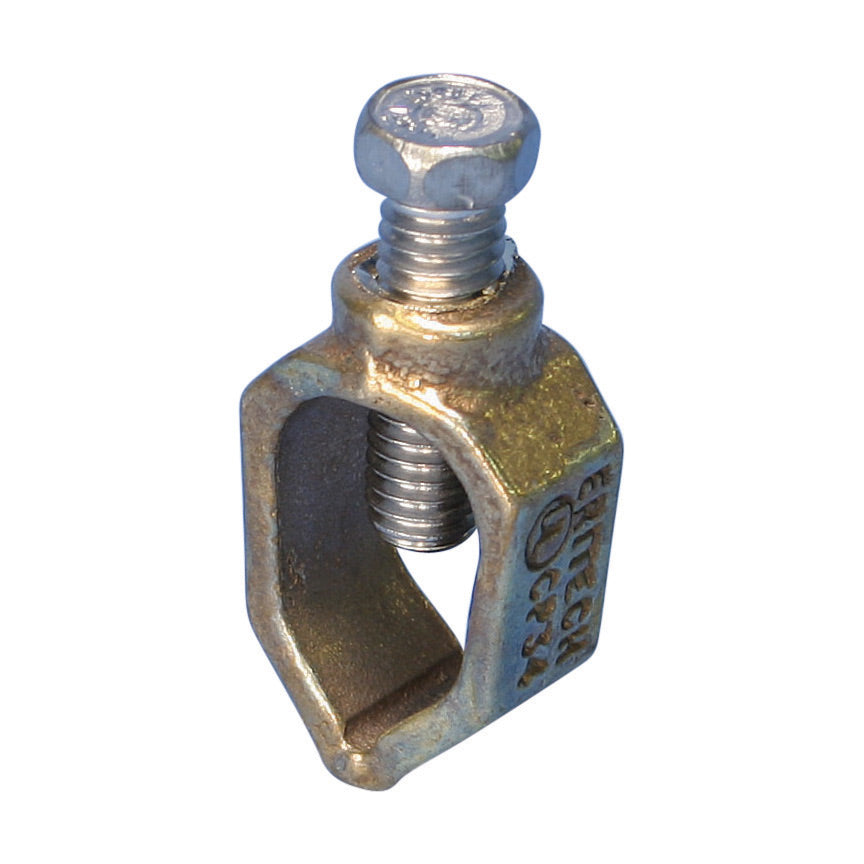

nVent CP34 3/4 Ground Rod Clamp

Product Description

The nVent CP34 Ground Rod Clamp is designed for grounding and bonding applications. This clamp is suitable for use with copper bonded ground rods. It engages solid or stranded conductors, making it versatile for various installations. The clamp accommodates rod sizes from half inch to three-quarters inch. It is made from silicon bronze and measures one point sixty-two inches in length.

• Compatible with copper bonded ground rods
• UL Listed for direct burial in earth or concrete
• Suitable for 8 AWG solid and 2 AWG stranded conductors

Product Highlights

The CP34 clamp provides reliable connections for grounding systems, ensuring compliance with electrical standards.

Product Information

Standard Information

• Manufacturer: nVent
• Category: Grounding & Bonding

Technical Specifications

• Application: Grounding and Bonding
• Conductor Size: 8 AWG Solid/2 AWG Stranded
• Conductor Type: Solid/Stranded
• Connection Type: Rod to Conductor
• Dimensions: 1.62 in L
• Material: Silicon Bronze
• Rod Size: 1/2 to 3/4 in
• Standards/Approvals: IEC EN 62561-1|CSA 46866|cULus Listed|Qualifoudre Approved
• Type: Standard Duty Universal
