Nvent CJ6 Colorado Jim Non-Metallic Cable Support 14/2 AWG, 12/2 AWG, 10/2 AWG, 14/3 AWG, 12/3 AWG, 10/3 AWG, 8/2 AWG, 6/2 AWG

Product Description

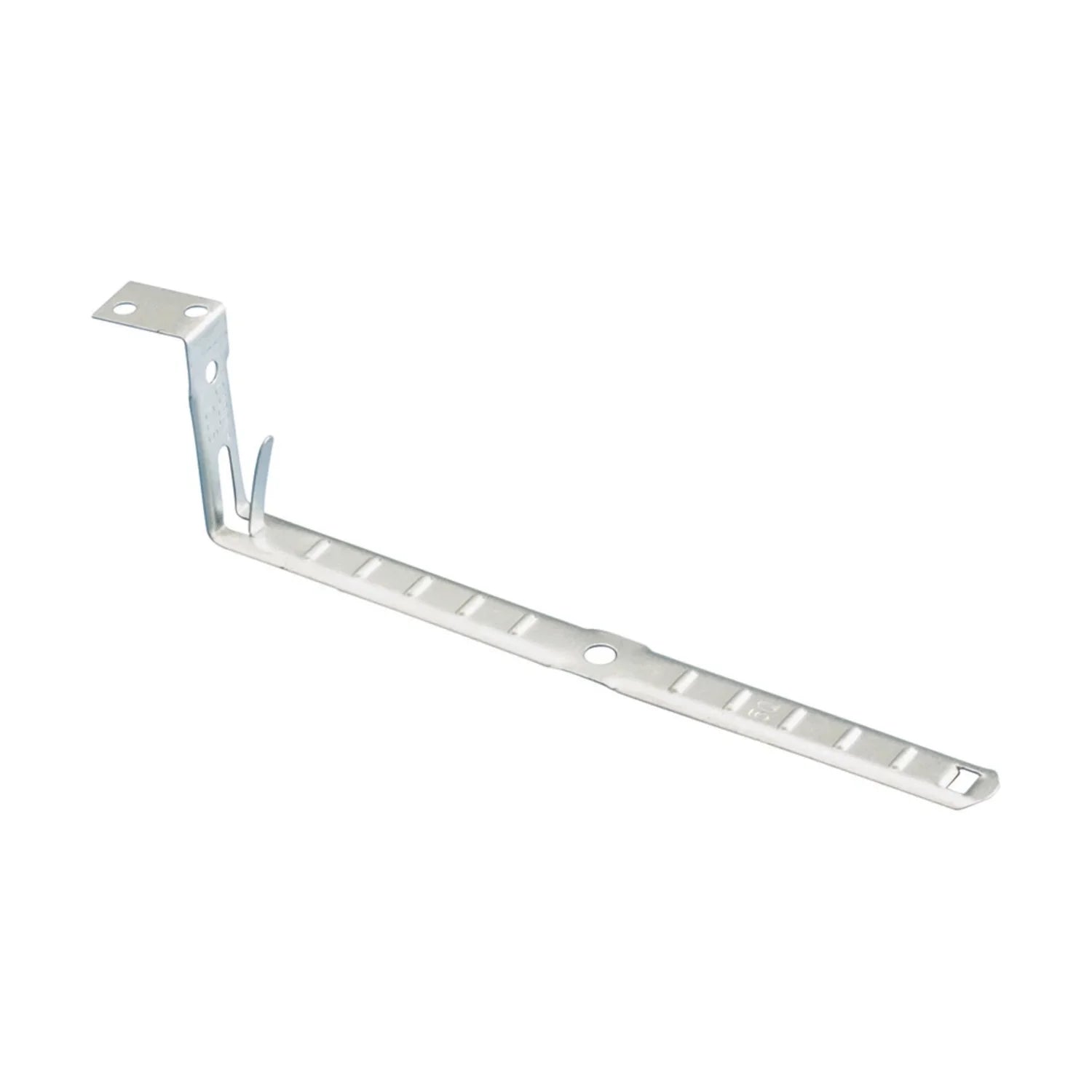

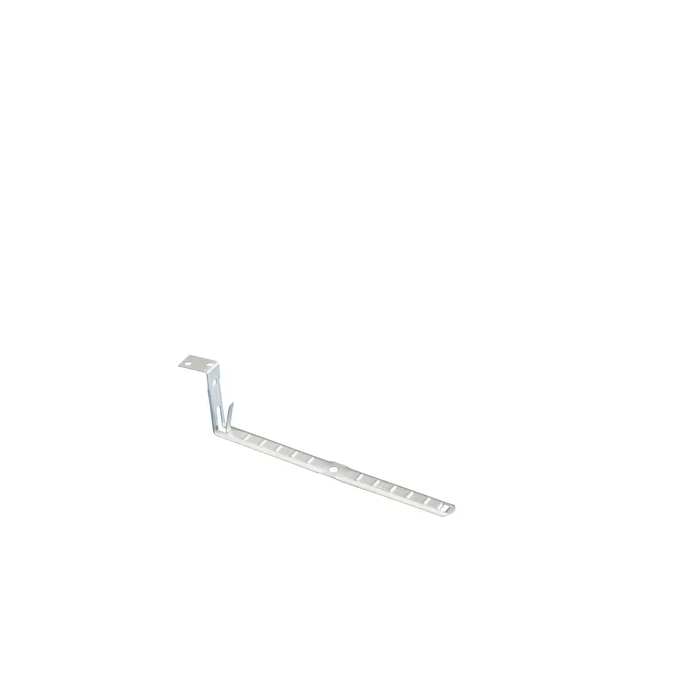

The nVent CJ6 is a Colorado Jim Non-Metallic Cable Support constructed from pre-galvanized steel, designed for efficient cable management. This support accommodates various cable sizes, including 14/2 AWG, 12/2 AWG, 10/2 AWG, 14/3 AWG, 12/3 AWG, 10/3 AWG, 8/2 AWG, and 6/2 AWG. It is suitable for electrical fixing, fastening, data communication, and low voltage applications, providing secure cable organization.

• Easy-to-use locking tab for secure installation
• Cable locating ribs to maintain proper cable separation
• Flared edges for enhanced cable protection

Product Highlights

Flexible pre-galvanized steel cable clip for wood or metal stud mounting.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CJ6

Technical Specifications

• Type: Colorado Jim Non-Metallic
• Finish: Pre-Galvanized
• Manufacturer: nVent
• MPN: CJ6
• Category: Conduit/Cable to Stud Supports
• Cable Size: 14/2 AWG, 12/2 AWG, 10/2 AWG, 14/3 AWG, 12/3 AWG, 10/3 AWG, 8/2 AWG, 6/2 AWG
• Material: Steel
• Application: Electrical Fixing, Fastening, Data Communication and Low Voltage Applications
• Standards/Approvals: UL Recognized, cUL Recognized, cULus Listed, cULus Recognized, cUL DWMU7.E165703, CAN/CSA C22.2 No. 18.4-04, UL DWMU.E165703, ANSI/UL 2239, NEC 300.4(d), BABA Compliant, RoHS Compliant
• CJ6 to Wood - Cable Type: Non-Metallic
• CJ6 to Wood - Cable Size 1: 14-2, 12-2, 10-2, 14-3, 12-3 and 10-3 w/ground
• CJ6 to Wood - Cables Per Fastener 1: Max 6
• CJ6 to Wood - Cable Size 2: 8-2 and 6-2 w/ground
• CJ6 to Wood - Cables Per Fastener 2: Max 4
• CJ6 to Metal Stud - Cable Type: Metal Clad (MC)
• CJ6 to Metal Stud - Cable Size: 14-2, 12-2, 10-2, 14-3, 12-3, 10-3, 14-4, 12-4 and 10-4 w/ground
• CJ6 to Metal Stud - Cables Per Fastener: Max 4
• CJ6S to Furring Strip and Hat Channel - Cable Type 1: Armored Cable (AC)
• CJ6S to Furring Strip and Hat Channel - Cable Size 1: 14-4, 12-2, 10-2, 8-2, 14-3, 12-3, 10-3, 14-4, 12-4 and 10-4 w/ground
• CJ6S to Furring Strip and Hat Channel - Cable Type 2: Flexible Conduit (BX)
• CJ6S to Furring Strip and Hat Channel - Cable Size 2: 5/16", 3/8"
• CJ6S to Furring Strip and Hat Channel - Cables Per Fastener: Max 4
• CJ6IN to Metal Stud (Canada only) - Cable Type: Non-Metallic Sheathed Cable
• CJ6IN to Metal Stud (Canada only) - Cable Size: 14-2, 12-2, 10-2, 14-3, 12-3 and 10-3 w/ground
• CJ6IN to Metal Stud (Canada only) - Cables Per Fastener: Max 4
• Special Features: Cable Clip, Flexible to Stud
