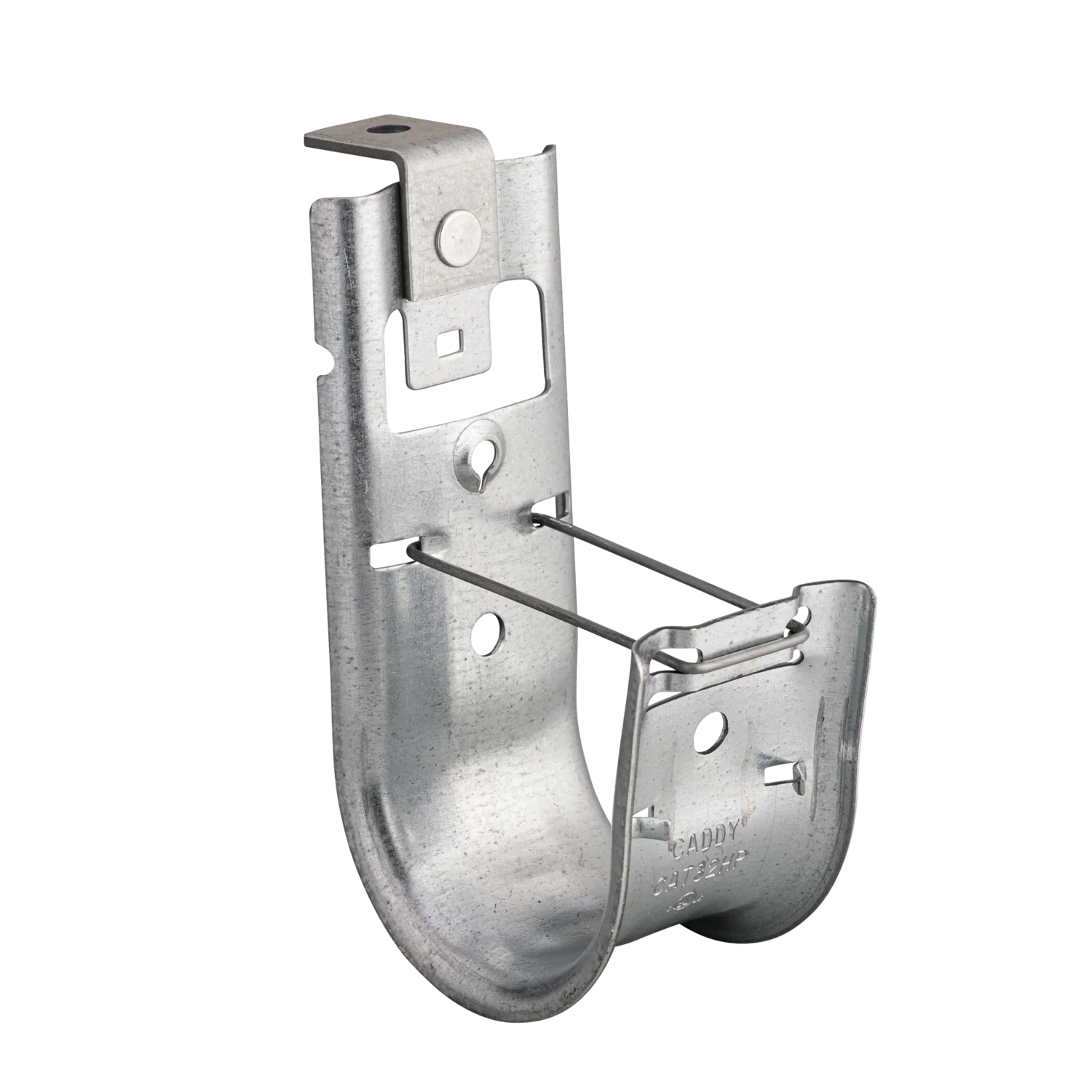

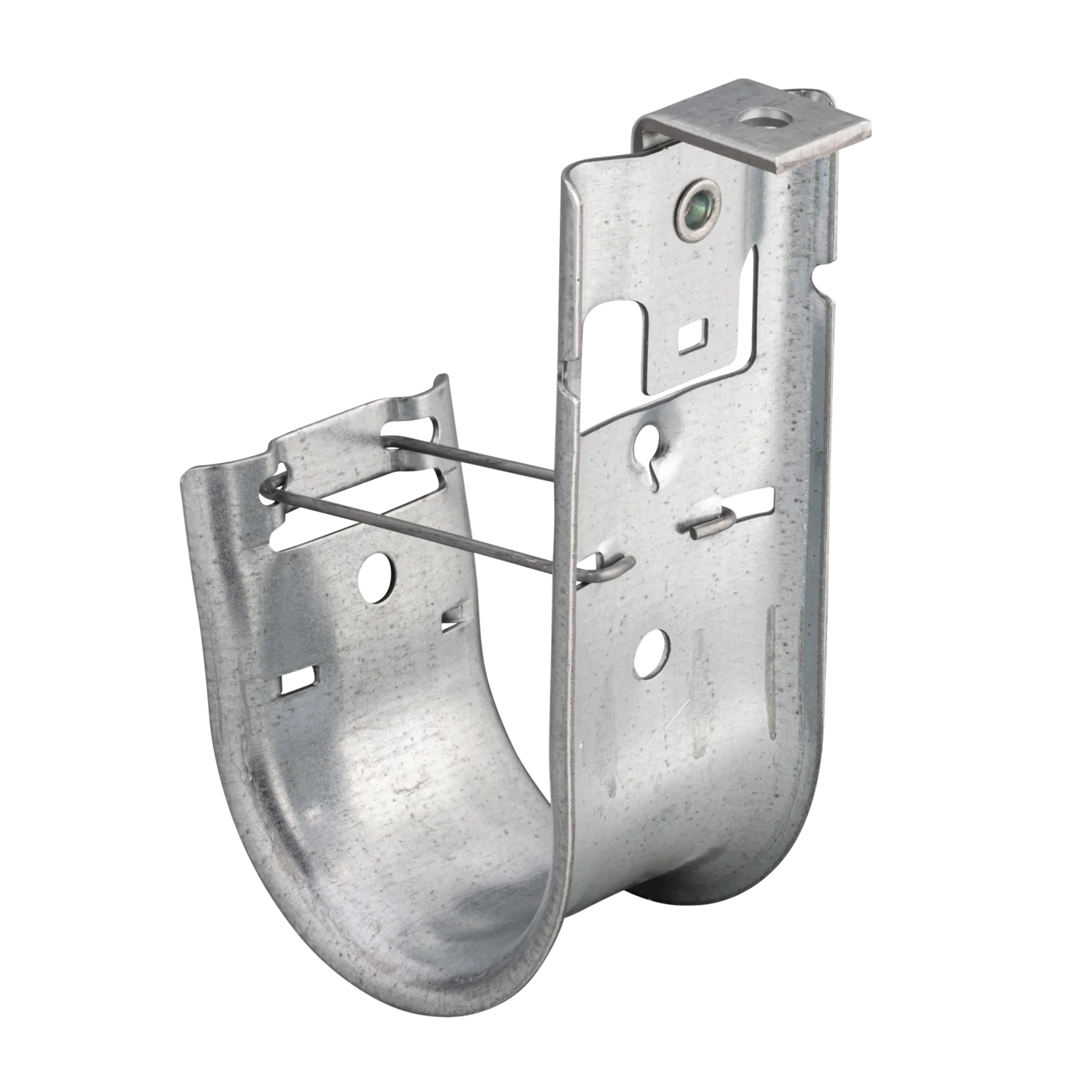

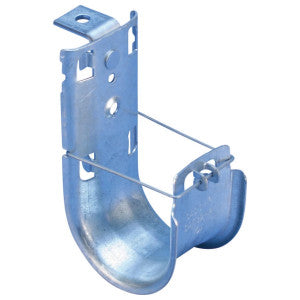

Nvent CAT21HPAB Caddy Cat HP J-Hook with Angle Bracket, 1 5/16 inches dia, 1/4 inches Hole

Product Description

The NVENT CAT21HPAB Caddy Cat HP J-Hook with Angle Bracket simplifies cable management with rapid attachment to surfaces like concrete, steel, or metal decking. Designed for high-performance data cable, it supports Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic cables. It offers superior fill capacity and load ratings.

• Quickly and easily attaches to concrete, steel or composite metal decking
• Provides optimal support for high-performance data cable including category cable, Power over Ethernet (PoE), and fiber optic
• Complies with EN 50174-2

Product Highlights

This J-Hook provides optimal support for high-performance data cables and is a cost-effective alternative to cable trays.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: CAT21HPAB
• Country of Origin: US - United States

Technical Specifications

• Applications: For High-Performance Data Cable Including Cat5e, Cat6, Cat6A, Cat7, Fibre Optic, Datacom and Low Voltage, Electrical Fixing and Fastening
• Load Capacity: 60 lb
• Material: Steel
• Size: 1-5/16 in dia, 1/4 in Hole
• Standard: UL,CUL
• Type: CADDY CAT HP J-Hook with Angle Bracket
• Packaging: 50/Pack
• Brand: nVent Caddy
• Sub Brand: CADDY
• 12-Digit UPC: 782856849551
• Finish: Pregalvanized
• Article Number: 181189
• Diameter: 33.3 mm
• Area: 1174mm²
• Cable Capacity, Cat 5e: 50
• Cable Capacity, Cat 6: 40
• Cable Capacity, Cat 6A: 25
• Hole Size: 6.3 mm
• Static Load: 270N
• UPC: 78285684955
• EAN: 8711893143133
• Standard Packaging Quantity: 50
• Packing Quantity: 1
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131709
• Series: CAT HP
• Specifications: 2.29 sq-in Area, 1/4 in Hole
• Suitable For Use With: High Performance Cable Support System
