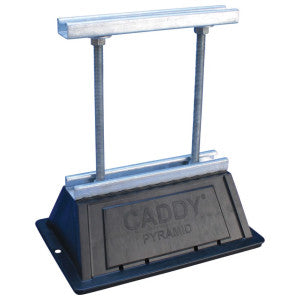

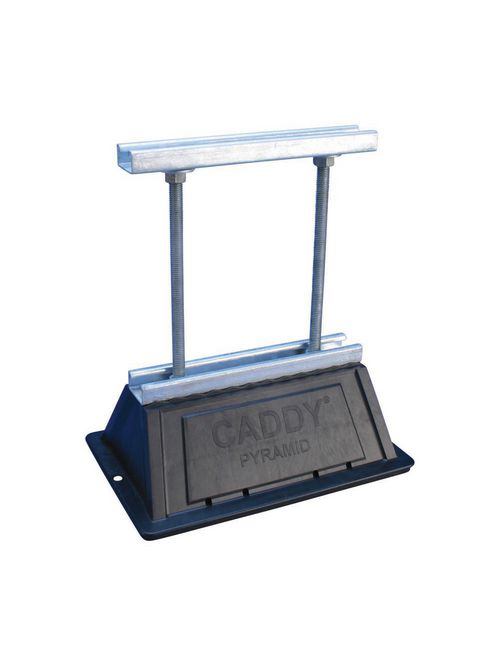

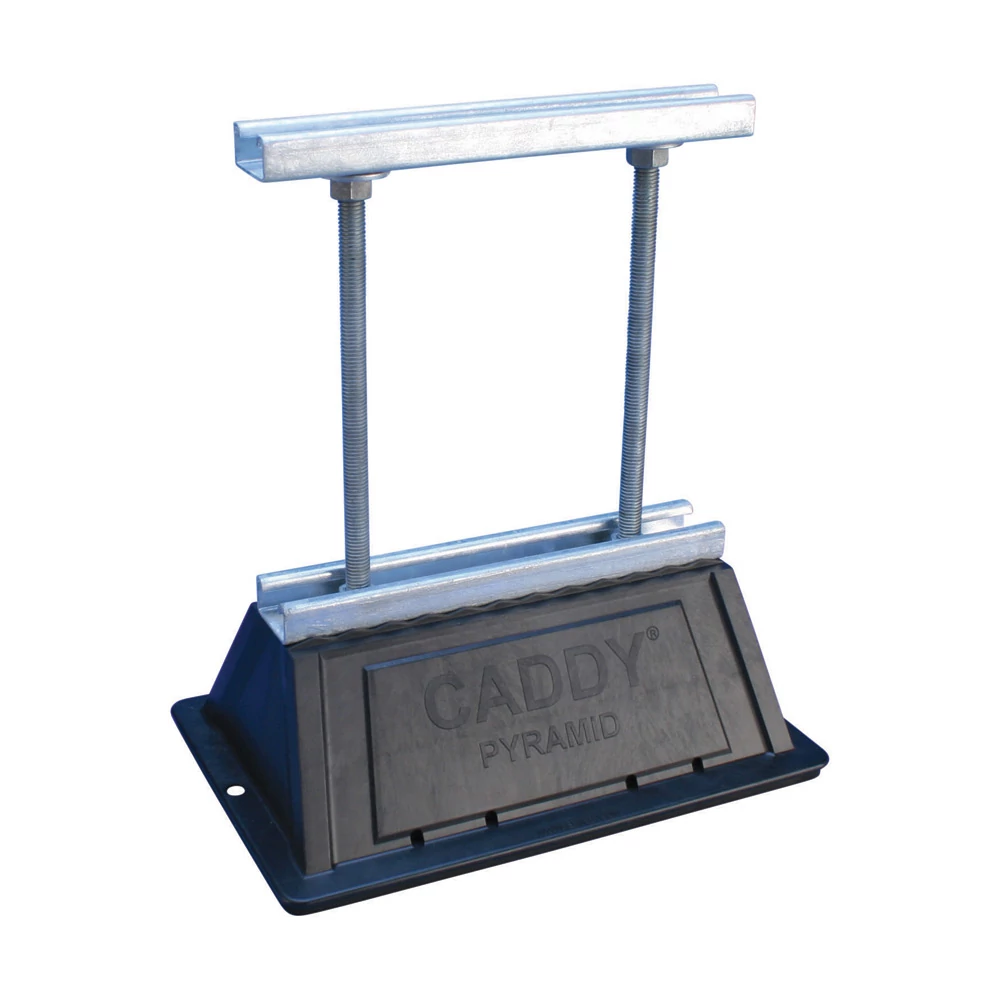

Nvent Caddy PSA10CH13 Pyramid ST Adjustable Strut Support 10 inches x 6 inches-13 inches

Product Description

The NVENT CADDY PSA10CH13 Pyramid ST Adjustable Strut Support features hot-dip galvanization and UV stabilization for lasting performance. It is designed for use with Pyramid ST rooftop systems, pipes, conduits, ducts, and cable trays. The strut support offers height adjustability for navigating obstructions on rooftops.

• Hot-dip galvanized and UV stabilized for long lasting performance
• Foam bottom offers low abrasion interface for better roof membrane protection
• Height adjustability provides effective navigation of pipe, conduit, duct and cable tray around obstructions

Product Highlights

The adjustable strut support is compatible with various rooftop surfaces and provides superior load distribution. Ready to use out of the box, saving installation time and labor.

Product Information

Standard Information

• Brand: NVENT CADDY
• Manufacturer Part Number: PSA10CH13
• Country of Origin: United States

Technical Specifications

• UNSPSC Code: 30101800
• Type: Adjustable
• Length: 12-1/2 in
• Height: 6 - 13 in
• Width: 8 in
• For Use With: Pyramid ST Rooftop System, Pipe, Conduit, Duct and Cable Tray
• Material: Polyethylene, Polypropylene, Steel
• Finish: Hot Dipped Galvanized
• Applications: Datacom and Low Voltage; Electrical Fixing and Fastening; HVAC, Plumbing and Refrigeration; Rooftop
• Temperature: -50 to 150 °F
• Static Load Safety Factor: 3:1
• Length 1 (L1): 10"
• Length 2 (L2): 12 1/2"
• Static Load (F): 1000lbf
• UPC: 782856843030
• EAN: 8711893139693
• Standard Packaging Quantity: 5
• Packing Quantity: 1
• ECCN: EAR99
• UNSPSC: 30241504
• Use With: Pipe, Conduit, Duct and Cable Tray, Rooftop Surface
• Fitting Type: Adjustable Strut Support
• Catalog Number: PSA10CH13
