Nvent CADDY K8 Cable/Conduit Clip 1/2 inches EMT, 1/2 inches Rigid, 12-3 MC/AC, 0.709 inches Max

Product Description

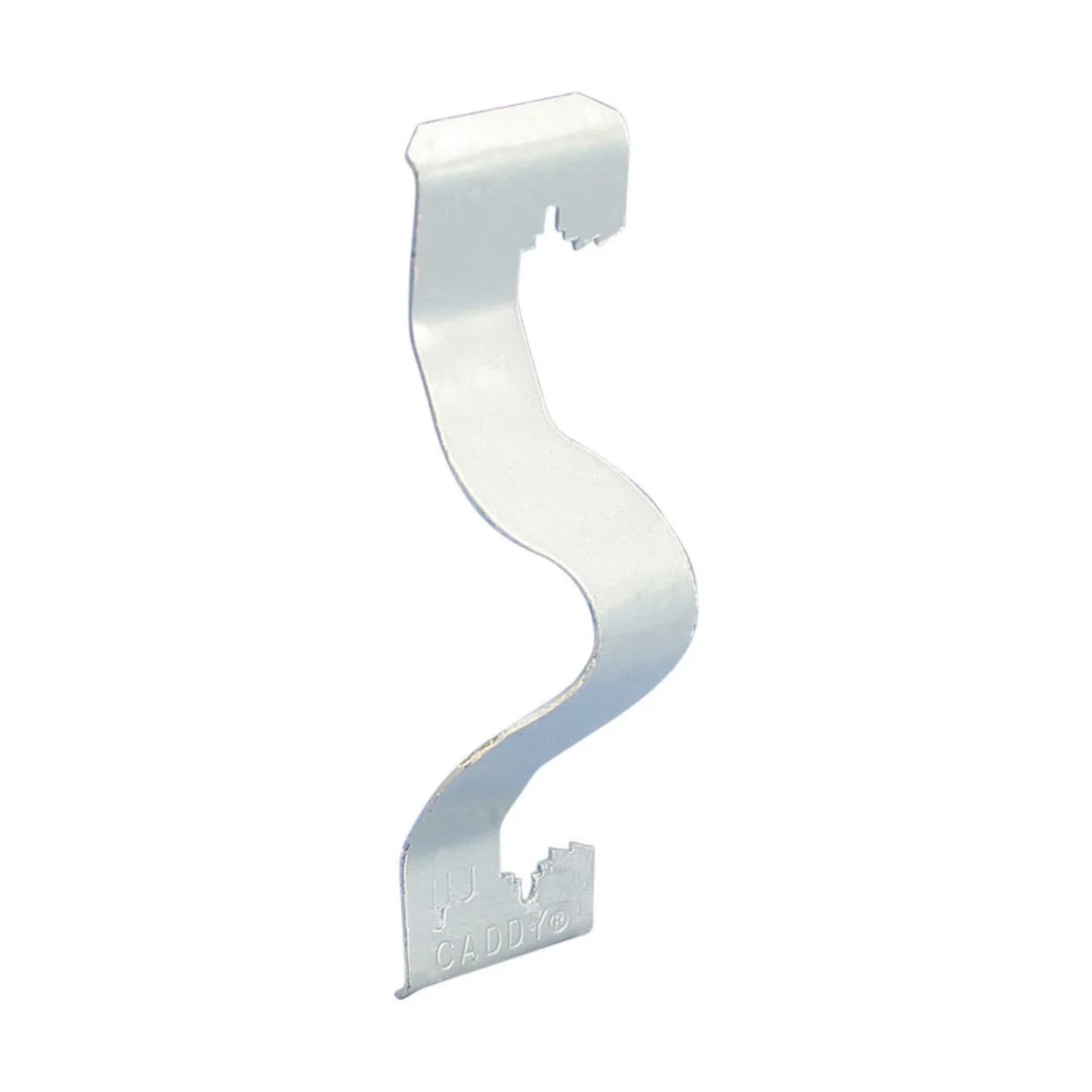

The NVENT CADDY K8 is a cable and conduit clip designed to support conduit to rod, wire, or flange. It can also be used for flexible metallic tubing, armored cable, portable cables, control tubes and communications cable. It is available for EMT, rigid, ENT, IMT, MC/AC and aluminum conduit.

• Supports conduit to rod, wire or flange
• Can also be used for flexible metallic tubing, armored cable, portable cables, control tubes and communications cable
• No installation tools required

Product Highlights

The NVENT CADDY K8 clip is suitable for use with 12-3 AWG MC/AC cable and EMT/Rigid conduit. Made of spring steel with CADDY Armour finish.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: K8
• Country of Origin: United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1/2"
• Rigid Conduit Size: 1/2"
• MC/AC Cable Size: 12-3
• Outer Diameter (OD): 0.71" Max
• Static Load 1 (F1): 220N
• Static Load 2 (F2): 445N
• Static Load 3 (F3): 70N
• Cable Size: #12 Wire #8, #9, #10 Wire 14-2 (.433" - .475" OD) 14-3 (.453" - .500" OD) 12-2 (.467" - .510" OD) 12-3 (.489" - .535" OD)
• Load Capacity: 25/100 lb
• Outside Diameter: 0.709 in
• Conduit Size: 1/2 in
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
• Catalog ID: CADK8
• Suitable For Use With: 12-3 AWG MC/AC Cable
• Mounting Type: Spring
• Wire Size: 8 AWG, 9 AWG, 10 AWG, 12 AWG
• Flange Size: 1/8 to 1/4 in THK
• Rod Size: 3/16 in, 1/4 in
• Article Number: 170660
• Brand: NVENT Caddy
• MPN: K8
• Country of Origin: United States
