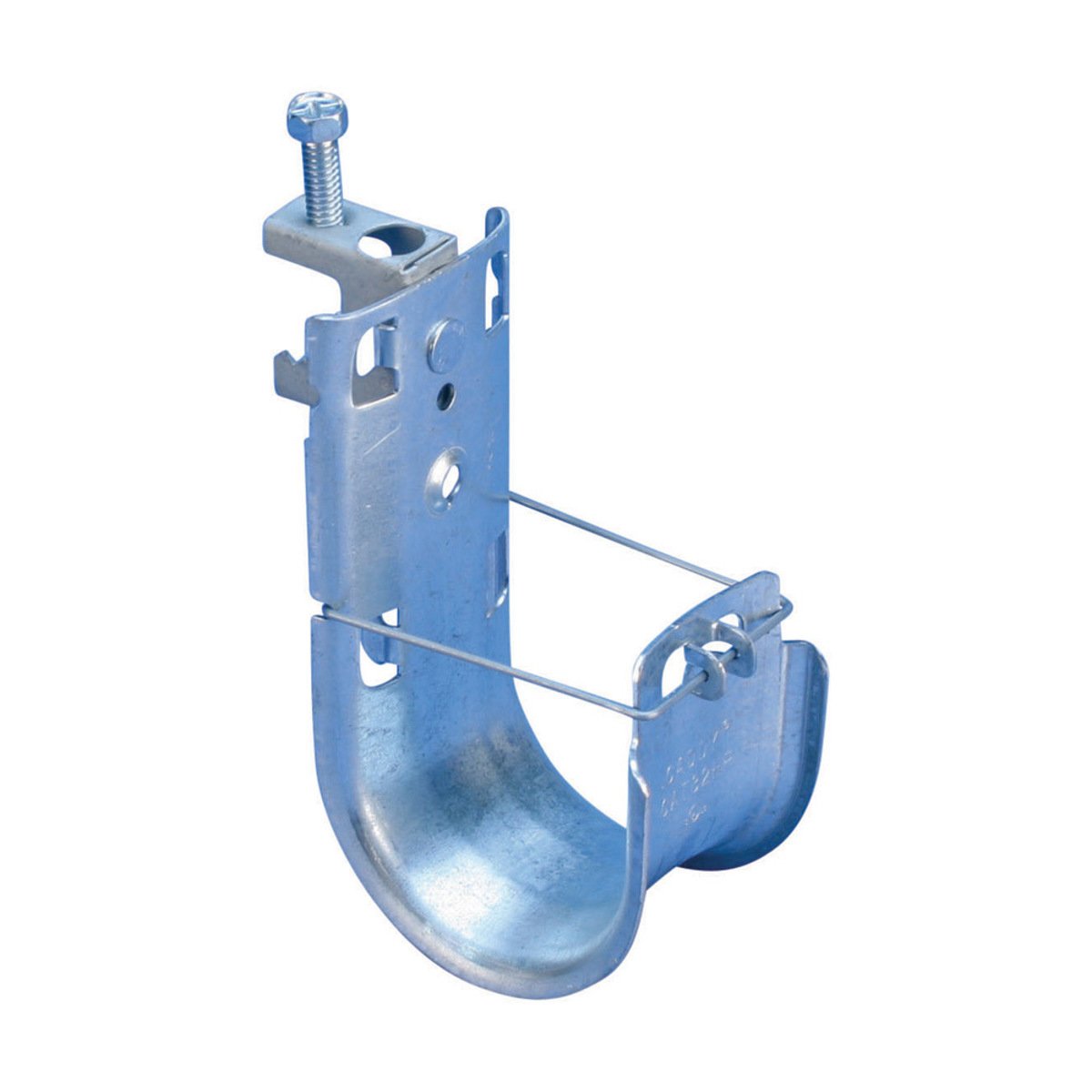

nVent CADDY CAT32HPBC Cat HP J-Hook with BC Beam Clamp, 2 Diameter, 1/2 Max Flange

Product Description

nVent CADDY CAT32HPBC is a reliable J-hook system designed for high-performance cable support. This product features a BC beam clamp and is suitable for cables including Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic. It has a diameter of two inches and can support a maximum flange thickness of half an inch.

• Easy installation to beam flanges
• Supports high-performance data cables
• Superior fill capacity over non-continuous alternatives

Product Highlights

This J-hook is built for optimal cable support while ensuring proper bend radius for data integrity.

Product Information

Standard Information

• Material: Spring Steel, Steel
• Country of Origin: United States

Technical Specifications

• Internal Diameter: 2 inches
• Maximum Flange Thickness: 0.5 inches
• Load Capacity: 60 lb static
• Packaged Quantity: 50
• Manufacturer Part Number: CAT32HPBC
• Standard Compliance: UL Listed, cULus Listed, EN 50174-2, ISO/IEC 14763-2, ANSI/TIA 568/569, CSA Approved
