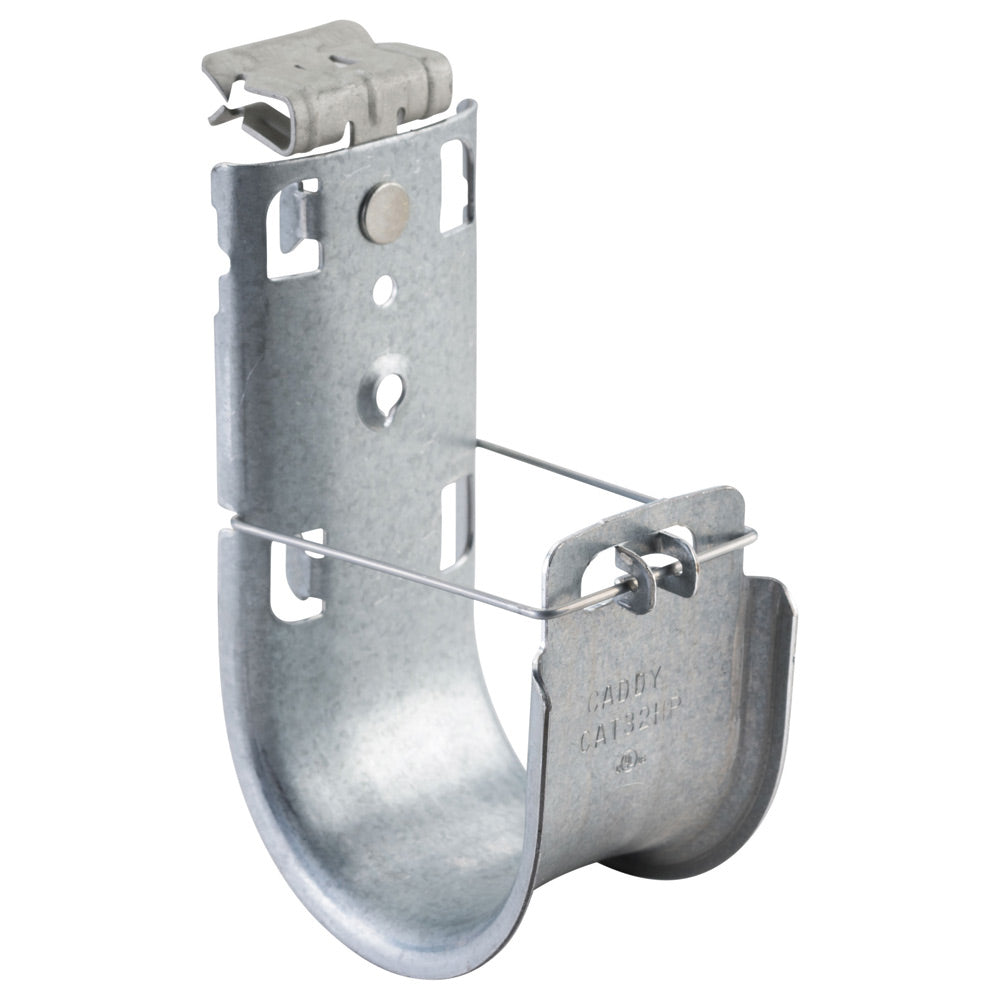

nVent CADDY CAT32HP24SM J-Hook with Hammer-On Flange Clip, 2 Dia

Product Description

nVent CADDY CAT32HP24SM is a J-Hook designed for high-performance cable support. It is suitable for a range of data cables, including up to Cat 7 and fiber optic cables. This tool requires only a hammer for installation, making it user-friendly. The J-Hooks feature rounded edges to support proper bend radius for data cables and ensure optimal performance.

• Supports high-performance data cables including Cat 5e to Cat 7 and fiber optic cables.
• Rounded edges on J-Hooks maintain proper bend radius for enhanced cable safety.
• Cost-effective alternative to traditional cable trays.

Product Highlights

These J-hooks provide a superior fill capacity and load rating than many non-continuous cable support systems.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Material: Steel, Spring Steel

Technical Specifications

• Load Capacity: 60 lb Static
• Size: 2 inches Diameter
• Specifications: 3.97 sq-in Area, 1/8 to 1/4 in THK Flange
• Finish: Pre-Galvanized
• Standards: UL, cUL, ANSI/TIA 568/569, EN 50174-2, ISO/IEC 14763-2
• Application: Suitable for Datacom and Low Voltage, Electrical Fixing and Fastening
