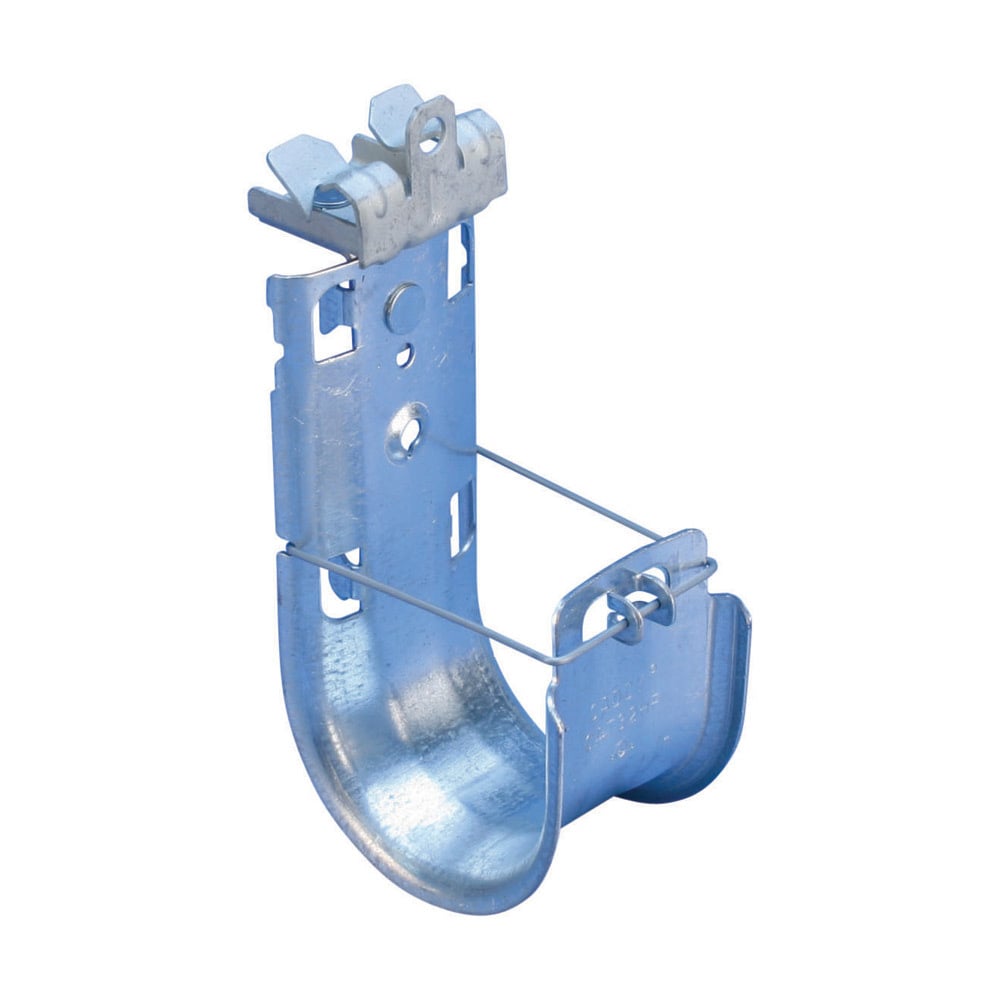

nVent CADDY CAT21HP24 J-Hook with Hammer-On Flange Clip, Swivel, 1 5/16 Dia

Product Description

The nVent CADDY CAT21HP24 is a J-hook designed for high-performance cable support systems. It requires only a hammer for installation and rotates three hundred sixty degrees for optimal cable support. This J-hook is effective for Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic cable. Its design includes rounded edges that maintain proper bend radii, ensuring the integrity of high-performance data cables.

• Supports a variety of cable types
• Superior load rating compared to traditional methods
• Meets compliance standards including EN 50174-2

Product Highlights

This product offers an economical alternative to expensive cable trays and ensures reliable support for various cabling applications.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Type: J-HOOKS

Technical Specifications

• Diameter: 1 5/16 inches
• Load Capacity: 60 lb Static
• Material: Spring Steel/Steel
• Mounting Type: Swivel
• Specifications: 2.29 sq-in Area, 1/8 to 1/4 inches thick flange
• Standards/Approvals: UL Listed, cULus Listed, EN 50174-2, ISO/IEC 14763-2, ANSI/TIA 568/569, CSA Approved
• Country of Origin: United States
• Manufacturer Part Number: CAT21HP24
