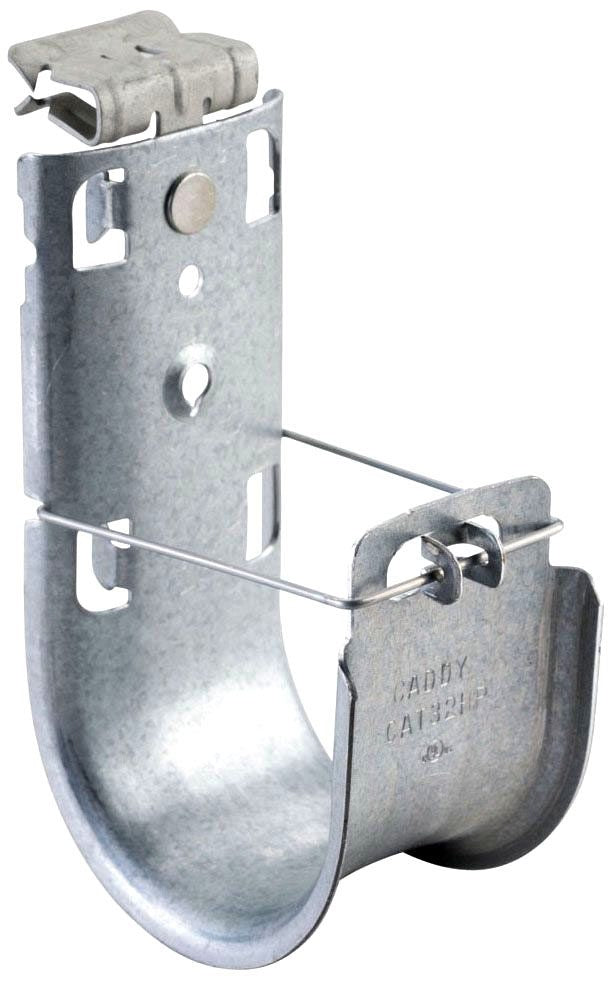

nVent CADDY CAT16HP912SM J-Hook with Hammer-On Flange Clip 1 Inch Diameter

Product Description

The nVent CADDY CAT16HP912SM offers a robust solution for supporting high-performance data cables. Manufactured in the United States, this J-Hook features a hammer-on flange clip designed for quick and easy installation, providing a reliable method for cable management in data communications and networking environments.

• Designed for 1-inch diameter cables with flange sizes between half an inch and three-quarters of an inch.
• Supports up to 60 pounds of static load, ensuring stability and security.
• Made with durable spring steel and finished with Caddy Armor for superior corrosion resistance.

Product Highlights

Optimal for structured cabling systems, the CAT16HP912SM facilitates the organization and routing of data cables, ensuring compliance with industry standards for bend radius.

Product Information

Standard Information

• Brand: nVent CADDY
• MPN: CAT16HP912SM

Technical Specifications

• Material: Spring Steel/Steel
• Finish: Caddy Armor/Pre-Galvanized
• Load Capacity: 60 lb Static
• Standards/Approvals: UL Listed, cULus Listed, EN 50174-2, ISO/IEC 14763-2, ANSI/TIA 568/569, DIN 4102-12 E30/E60/E90, CSA Approved
