nVent CADDY 812MB1824 B18-EM Box/Conduit Hanger with Flange Clip, 1/2, 3/4 EMT, 1/8-1/4 Flange

Product Description

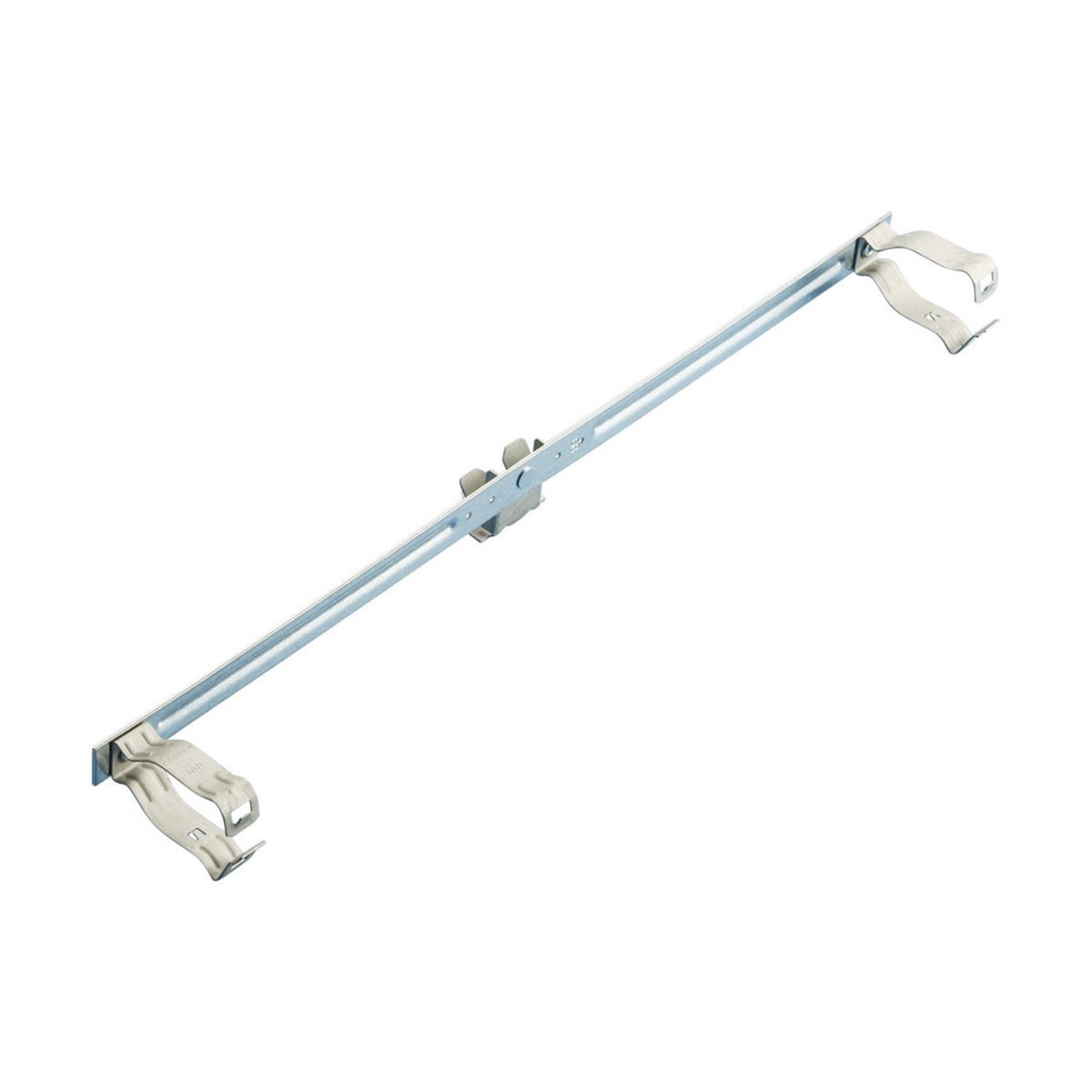

The Nvent CADDY 812MB1824 is a combination snap closed box and conduit hanger. This hanger is compatible with half and three-fourth inch EMT conduits and is designed for flanges that range from one-eighth to one-quarter inch thick. The unit is suitable for use with electrical boxes and EMT conduit installations and is constructed from durable spring steel.

• NEC and CEC compliant
• Surface mounting capability
• Spring steel construction for strength

Product Highlights

This product is ideal for supporting electrical boxes and conduits. It simplifies installation by eliminating the need for offset bending of conduit, ensuring a clean and efficient setup.

Product Information

Standard Information

• Manufacturer: Nvent CADDY
• Part Number: 812MB1824

Technical Specifications

• Conduit Size: 1/2 inch, 3/4 inch
• Flange Size: 1/8 inch to 1/4 inch thick
• Material: Spring Steel
• Category: Clips and Clamps
• Standards/Approvals: cULus Listed, NEC Certified, CEC Certified
• Application: Datacom, Telecom, Electrical Installation
• Mounting Type: Surface
