Nvent CADDY 812M58SM Flange Side Mt Clip - 1/2-3/4Emt To 1/2Flange

Product Description

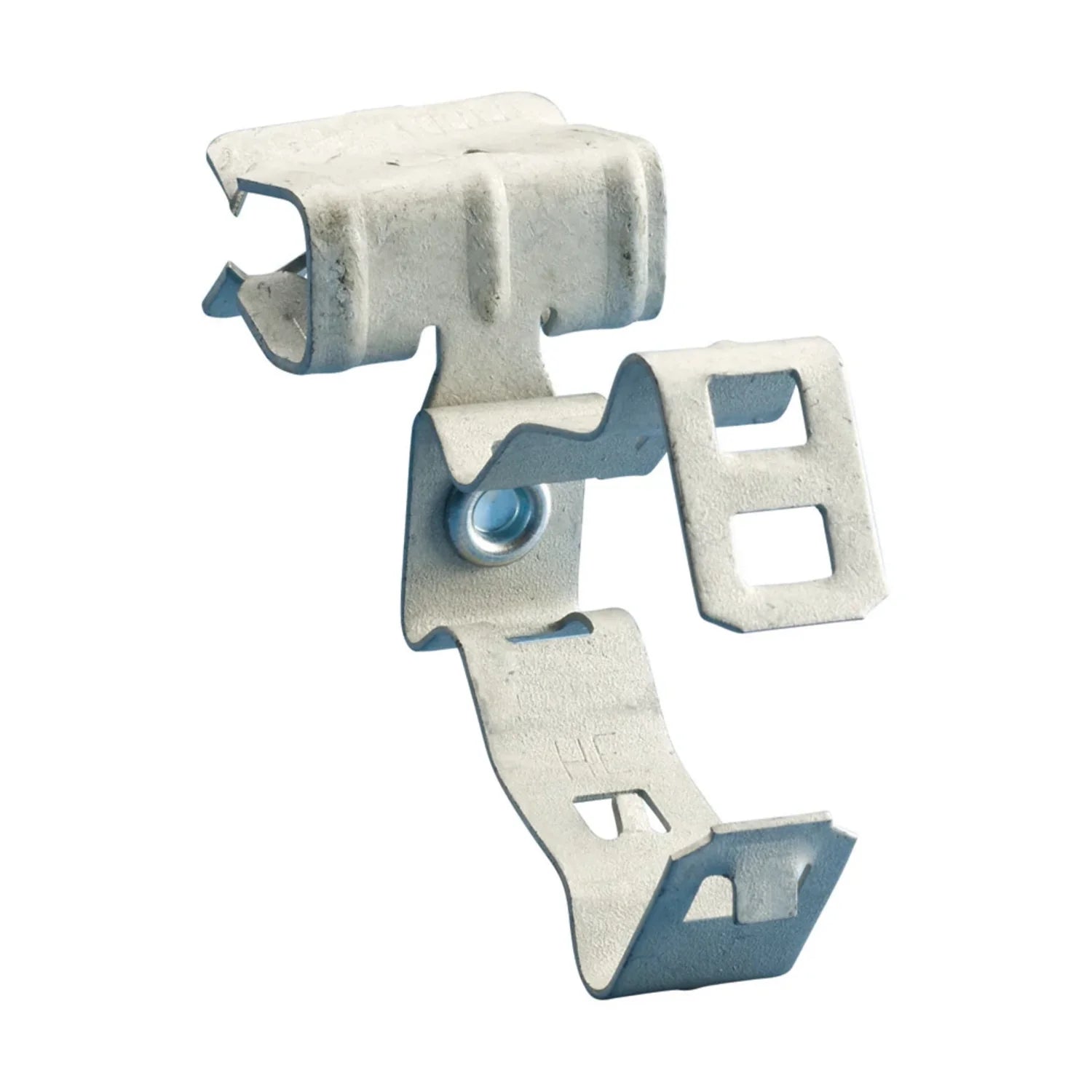

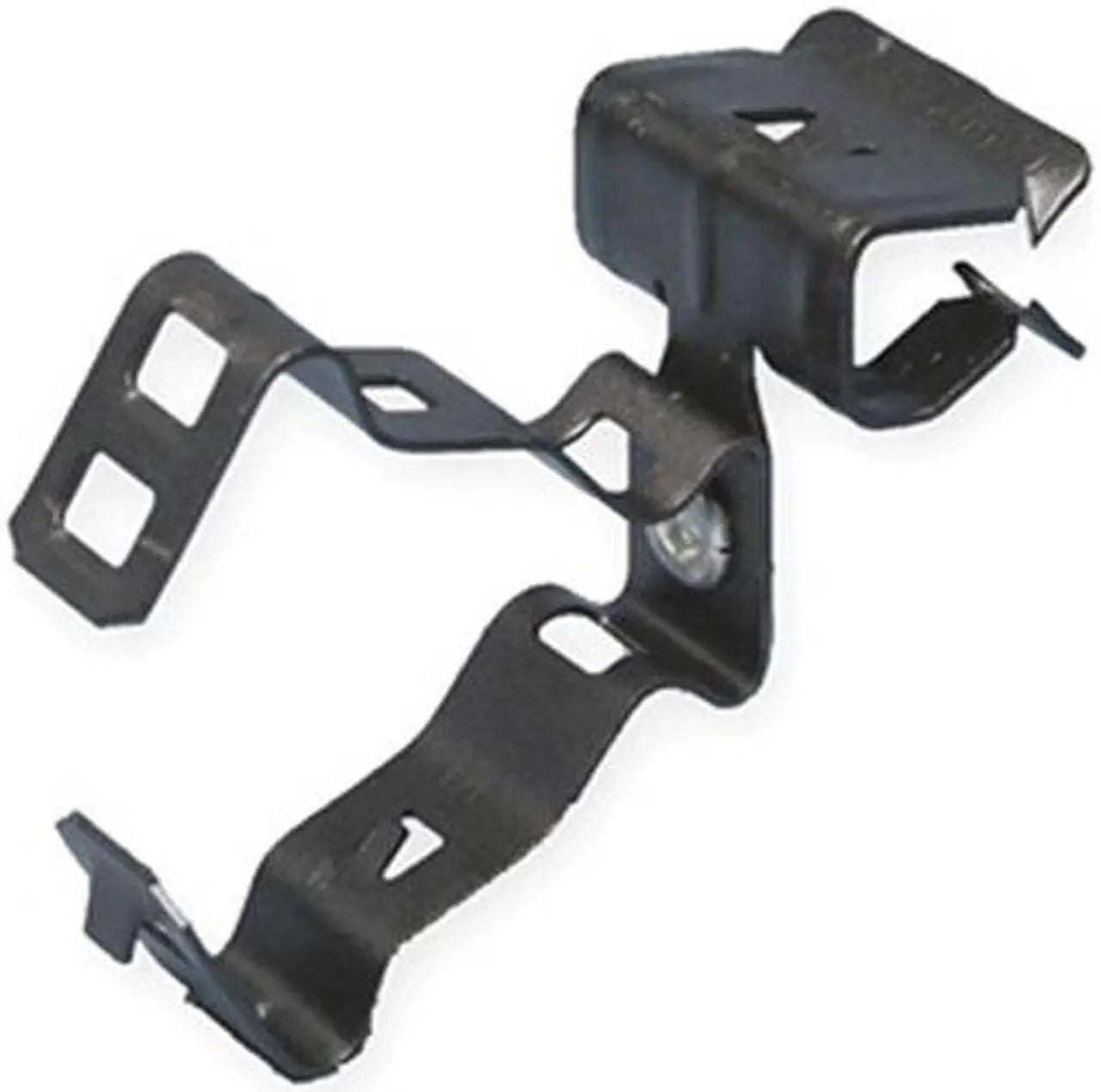

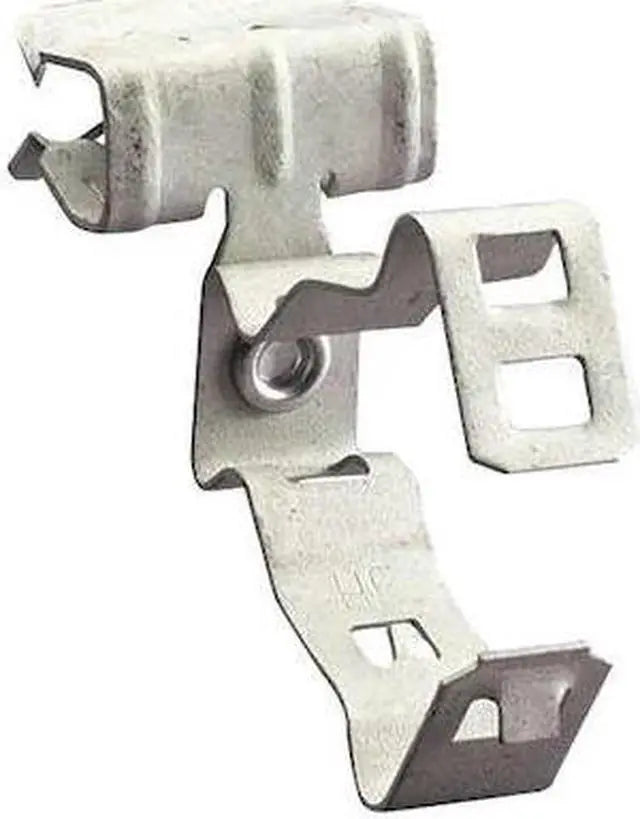

The NVENT CADDY 812M58SM is a conduit/pipe to flange clip with a snap close design. Part of the H-MSM series, it fits 1/2 in and 3/4 in conduit sizes, with a 25 lb load capacity and 0.709 to 1.181 in outside diameter. Designed for 5/16 to 1/2 in flanges and side mounting, it's suitable for EMT conduit. Constructed from spring steel with Caddy Armor finish.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 deg
• Requires only a hammer to install

Product Highlights

The 812M58SM clip supports conduit/pipe or cable from beam flanges. It features a snap close clip that pivots 360 degrees and installs with just a hammer.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 812M58SM
• Country of Origin: US

Technical Specifications

• Application: Datacom and Low Voltage and Electrical Application
• Conduit Size: 1/2 in, 3/4 in
• Finish: Caddy Armor
• Flange Size: 5/16 to 1/2 in
• Load Capacity: 25 lb
• Manufacturer Part Number: 812M58SM
• Material: Spring Steel
• Mounting Type: Side
• Series: H-MSM
• Standards/Approvals: cULus Listed
• Suitable For Use With: EMT Conduit
• Type: Snap Close
• Outer Diameter (OD): 0.710" - 1.18"
• Flange Thickness (FT): 5/16" - 1/2"
• Static Load (F): 25lb
• Outside Diameter: 0.709 to 1.181 in
• Brand: Caddy
