nVent CADDY 5120300EG EZ Riser for Close Quarters, 3 Pipe, 3.5 OD

Product Description

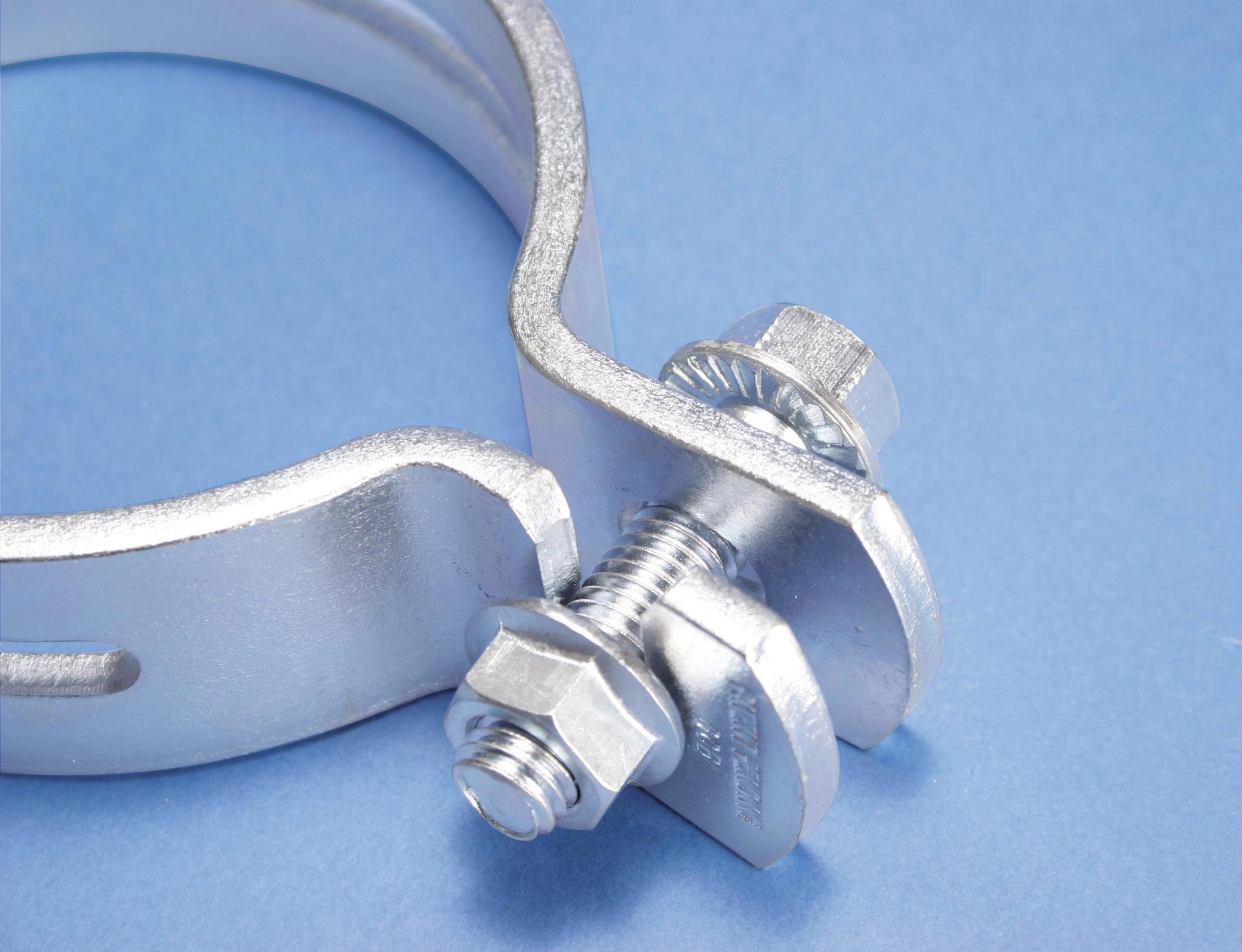

The nVent CADDY EZ Riser 5120300EG is designed for efficient support of vertical steel pipe risers in tight spaces. This clamp features slotted holes that facilitate simple installation without the need to remove hardware, effectively reducing lost time looking for dropped components. The innovative design allows for quick installation compared to standard clamps.

• Conforms to Federal Specification WW-H-171 (Type 8)
• Made from electro-galvanized steel for durability
• Short ears accommodate limited space installations

Product Highlights

Ideal for HVAC, plumbing, and refrigeration applications.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 5120300EG

Technical Specifications

• Pipe Size: 3 inches
• Load Capacity: 530 lb Static
• Outside Diameter: 3.5 inches
• Dimensions: 1-3/16 inches H x 8-5/8 inches W
• Material: Steel
• Finish: Electro-Galvanized
• Location: Indoor
• Type: Riser
• UNSPSC Code: 39121311
