Nvent Caddy 5120250EG EZ Riser Clamp 2-1/2 in Pipe Replacement MPN

Product Description

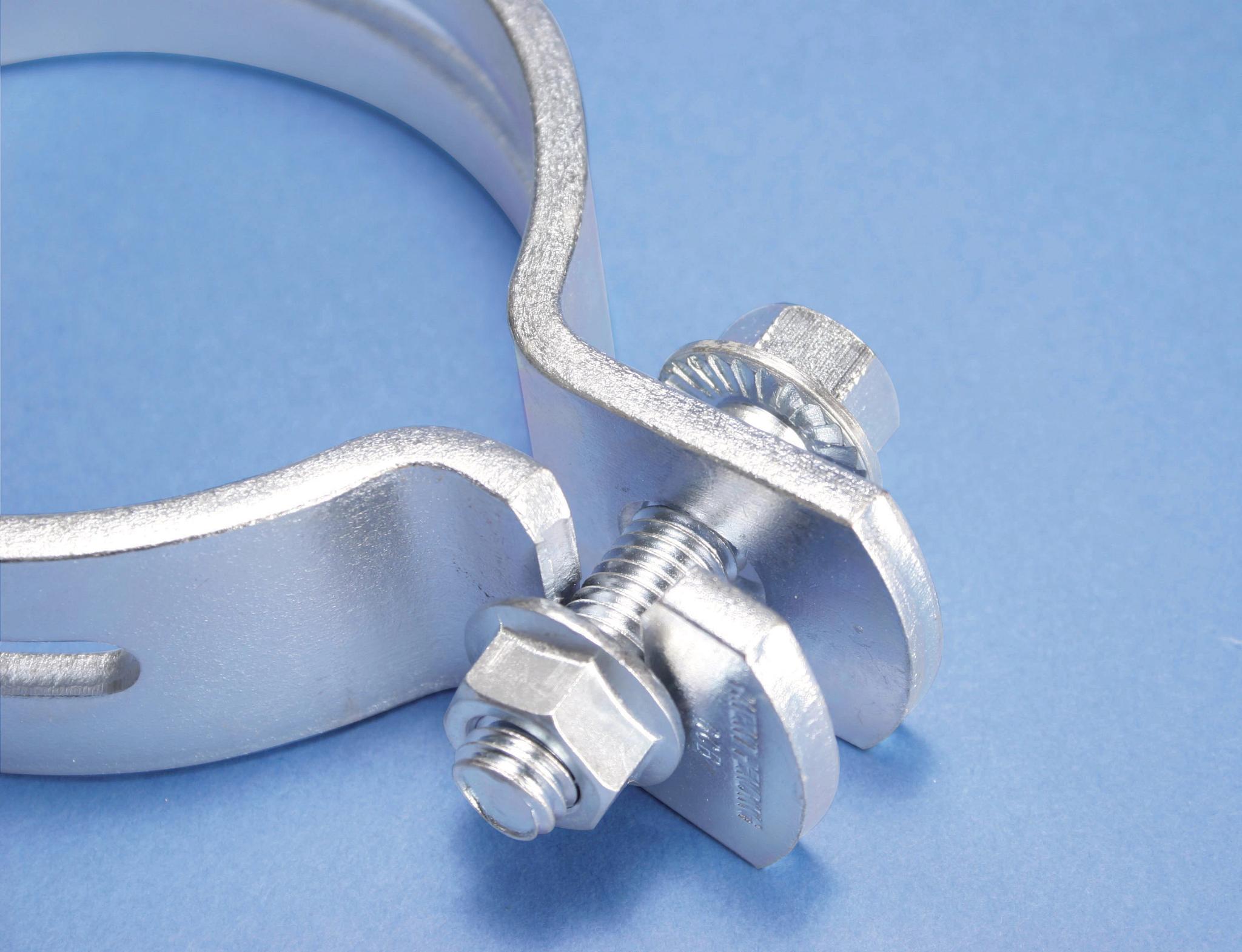

The nVent Caddy EZ Riser Clamp 5120250EG is designed for supporting vertical steel pipe risers in tight spaces. This product simplifies installation with features that eliminate lost hardware. It installs faster than standard riser clamps and fits in narrow areas where larger clamps cannot be used.

• Easy installation without requiring removal of hardware
• Short ears allow access in close quarters
• Electro-galvanized finish for corrosion resistance

Product Highlights

This riser clamp ensures secure support for pipes with a maximum outside diameter of two and seven-eighths inches. The clamp can handle a static load of up to three hundred ninety pounds.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 5120250EG

Technical Specifications

• Dimensions: 1-3/16 in H x 7-5/8 in W
• Load Capacity: 390 lb Static
• Material: Steel
• Pipe Size: 2-1/2 in
• Outside Diameter: 2-7/8 in
• Import/Export: Import
• Type: Riser
• UNSPSC Code: 39121311
