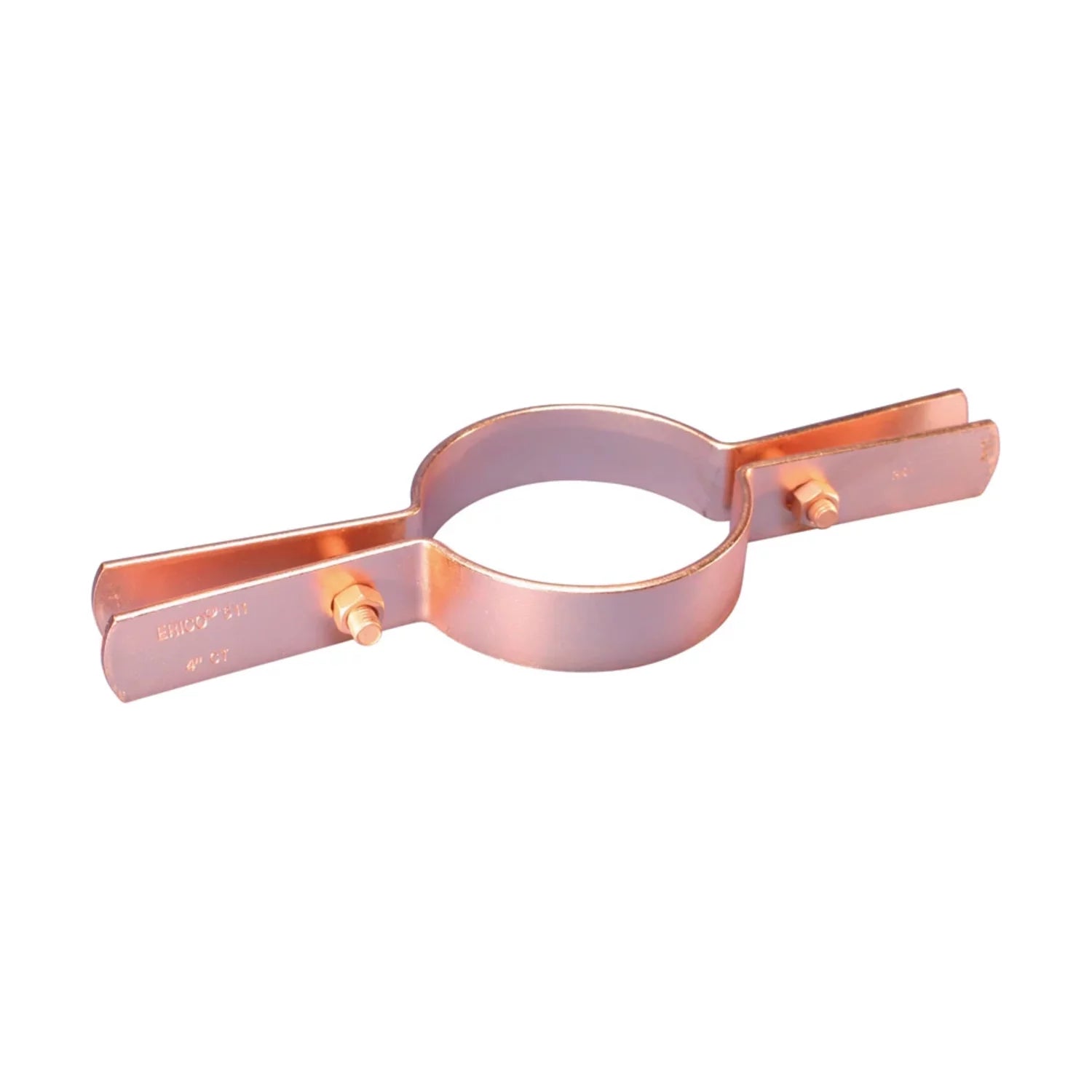

nVent Caddy 5110200CP EZ Riser for Copper Tube, 2 Pipe, 2 1/8 OD

Product Description

The nVent Caddy EZ Riser Clamp 5110200CP is designed for securing copper tubes. It is compatible with two-inch pipes and features a 2.125-inch outside diameter. This riser clamp provides essential support for various applications in plumbing, HVAC, and refrigeration.

• Accessible bolts from the front for easy installation
• Eliminates the need for wrenches on the backside due to the serrated washer head design
• Rated for a static load of up to 150 pounds

Product Highlights

This product is ideal for supporting K or L type copper tubing risers in indoor environments. Its design allows for quick and efficient assembly.

Product Information

Standard Information

• Manufacturer: nVent Caddy
• Part Number: 5110200CP

Technical Specifications

• Overall Dimensions: 1.5 inches L x 10.375 inches W x 1.25 inches H
• Bolt Diameter: 3/8 inches
• Load Capacity: 150 lb Static
• Material: Steel
• Finish: Electro-Plated Copper
• Pipe Size: 2 inches
• Standards/Approvals: Federal Specification WW-H-171 Type 8, MSS SP-58 Type 8, ANSI/MSS-SP-69
• UNSPSC Code: 31160000
