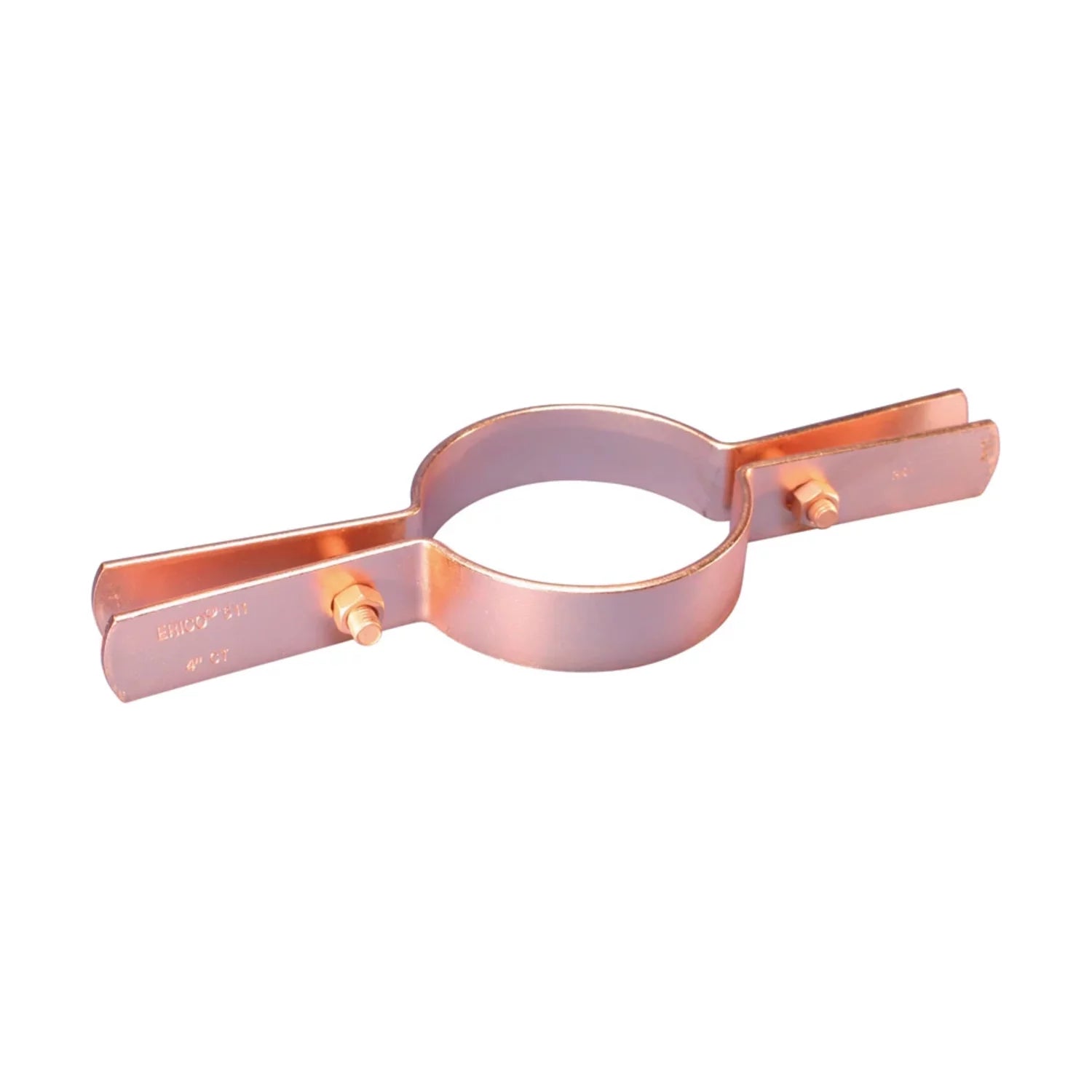

nVent CADDY 5110100CP EZ Riser for Copper Tube, 1 Pipe, 1 1/8 OD

Product Description

The nVent CADDY EZ Riser Clamp, MPN 5110100CP, is designed for supporting copper tubing in various applications. This riser clamp is suitable for indoor use and offers a secure grip of one-inch pipes with a bolt diameter of three-eighths inches.

• Bolts are accessible from the front, enhancing ease of installation.
• Serrated washer head design eliminates the need for a wrench on the back side.
• Holds a static load capacity of one hundred twenty pounds.

Product Highlights

This clamp is built for vertical K or L type copper tubing risers and complies with federal specifications for safety standards.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 5110100CP

Technical Specifications

• Diameter: 1 inch
• Location: Indoor
• Type: Riser
• Load Capacity: 120 lb Static
• Material: Steel with Electro-Plated Copper finish
• Dimensions: 1-1/4 inches L x 9-1/4 inches W x 1 inch H
• Outside Diameter: 1-1/8 inches
• Standards/Approvals: Federal Specification WW-H-171 Type 8, MSS SP-58 Type 8
