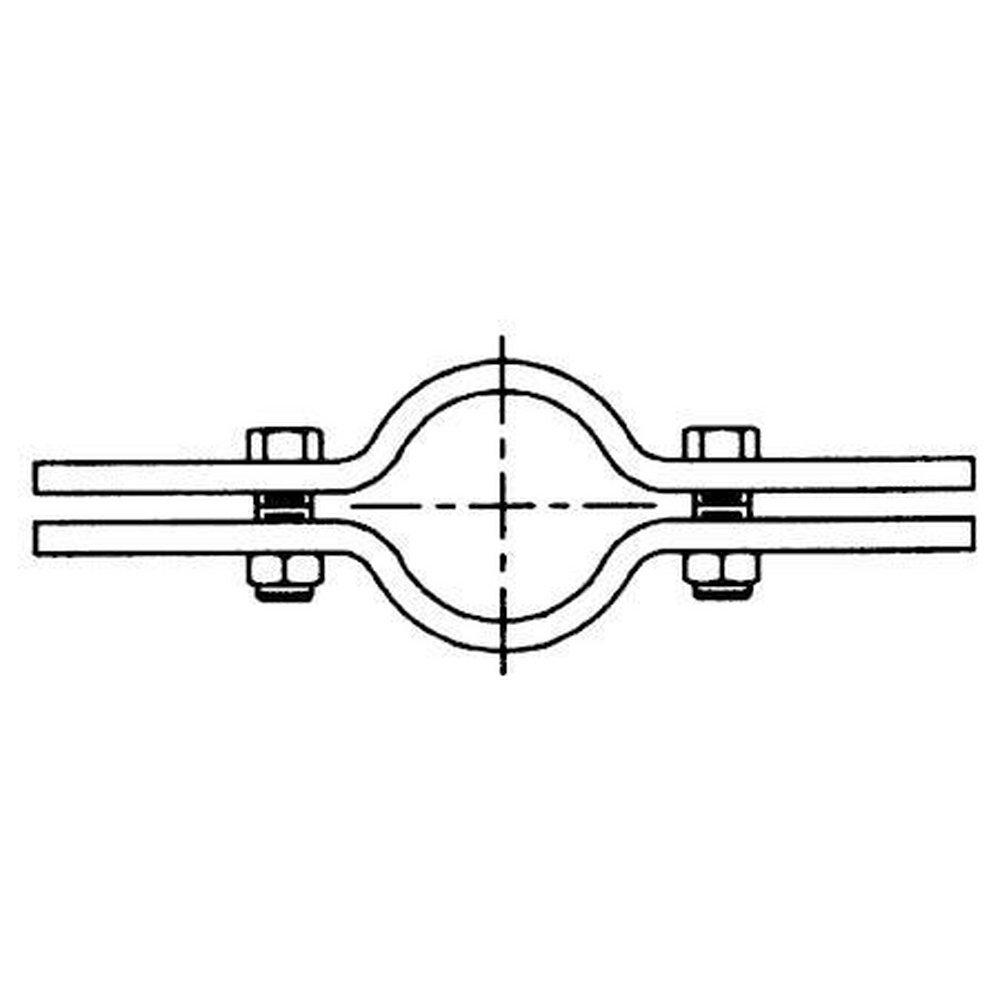

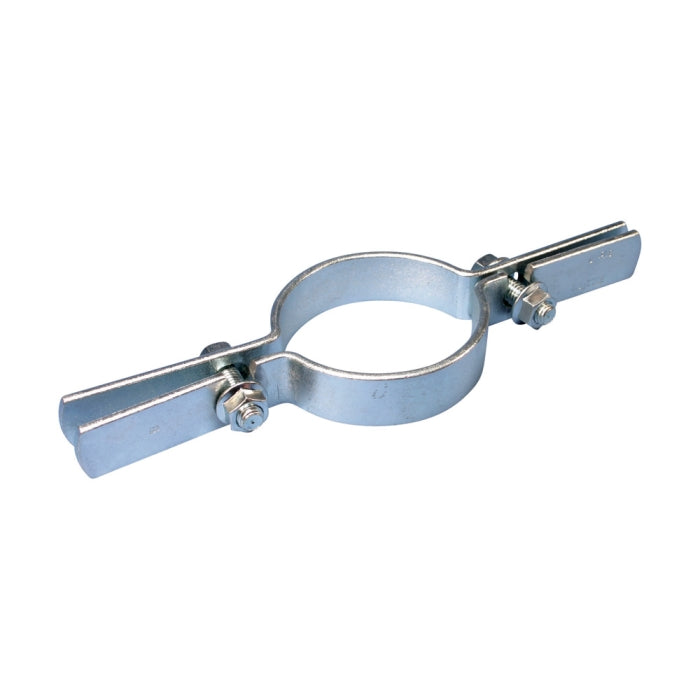

nVent CADDY 5100250EG 510 2-1/2 in. Electrogalvanized Steel Riser Clamp for Fire Protection

Product Description

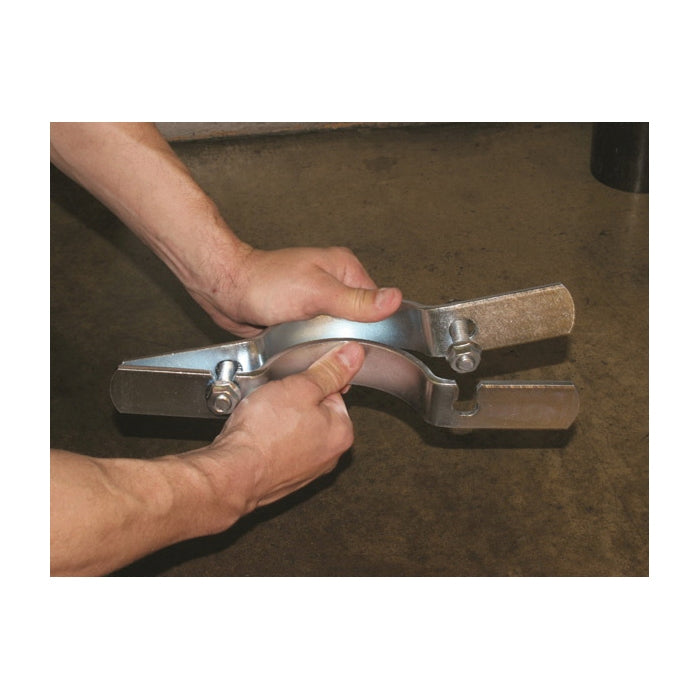

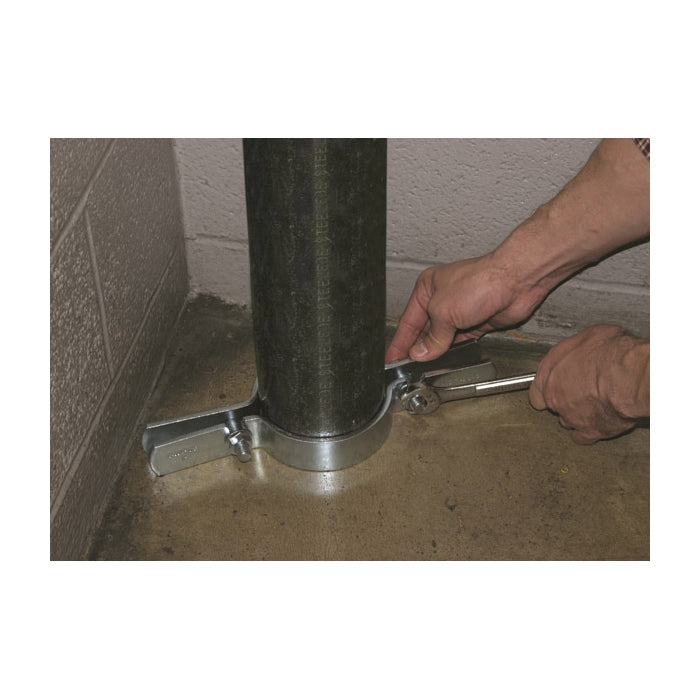

The nVent CADDY 5100250EG is a riser clamp designed for suspending vertical steel pipe risers. This model features slotted holes, allowing for quick assembly without removing hardware. This reduces the chance of losing small parts during installation. The unique design of the clamp means that no wrenches are needed to tighten bolts, making the process efficient. The clamp also provides a strong hold with a static load capacity of three hundred ninety pounds.

• Electro-Galvanized steel construction
• Designed for easy installation
• Ideal for vertical steel pipe risers

Product Highlights

This riser clamp combines user-friendly design with robust materials to deliver effective support for vertical pipe systems.

Product Information

Standard Information

• Brand: nVent CADDY
• MPN: 5100250EG

Technical Specifications

• Material: Steel
• Pipe Size: 2-1/2 in
• Outside Diameter: 2-7/8 in
• Dimensions: 1-3/16 in H x 11 in W
• Load Capacity: 390 lb Static
• Finish: Electro-Galvanized
• Series: 510
• Domestic/Import: Import
