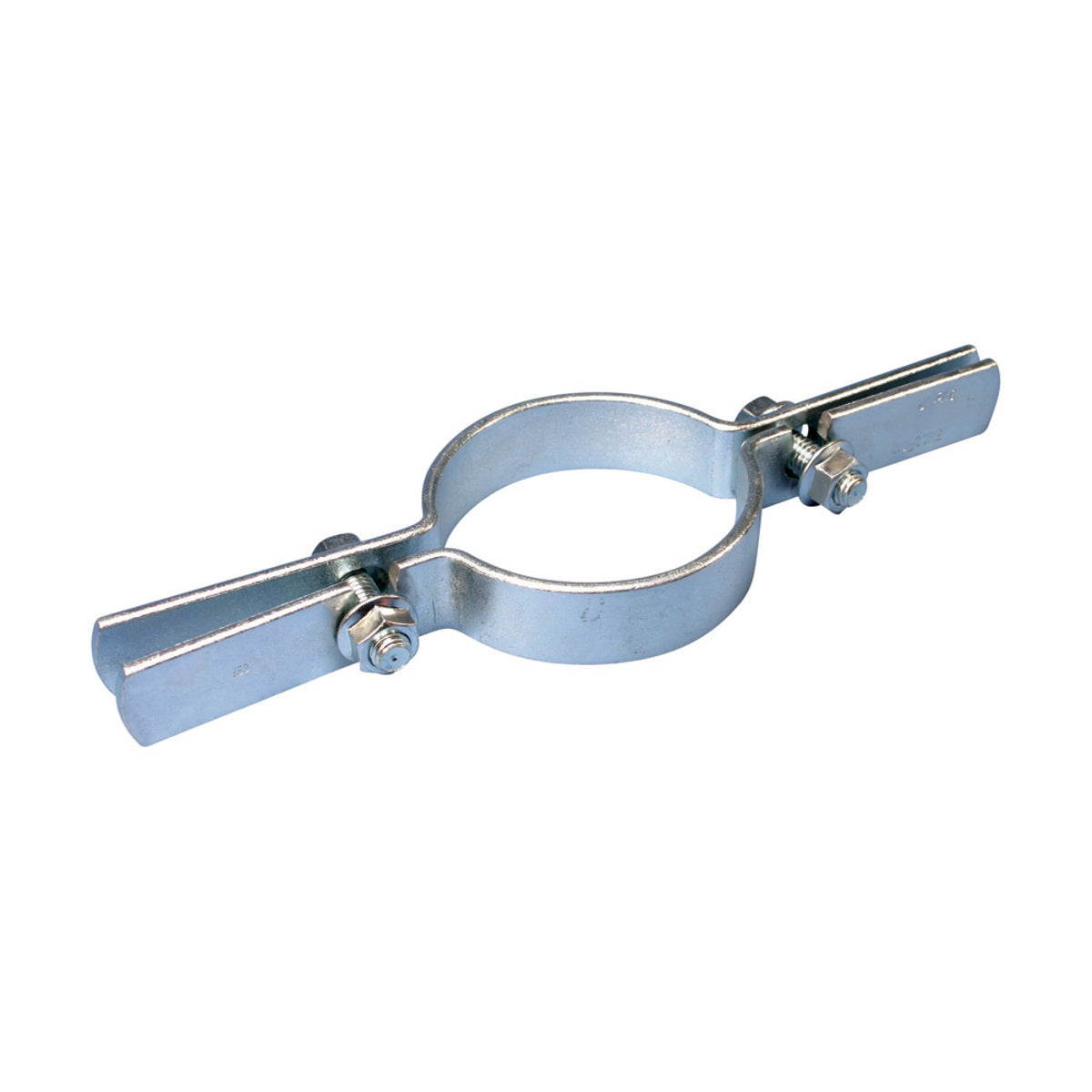

nVent CADDY 5100200EG EZ Riser, Steel, EG, 2 Pipe, 2.375 OD

Product Description

The nVent CADDY 5100200EG EZ Riser is a specialized clamp designed for easy installation of vertical steel pipe risers. It is made from steel and features an electro-galvanized finish for enhanced corrosion resistance. This riser clamp is suitable for various applications, including HVAC, plumbing, and fire sprinkler systems.

• Designed for 2-inch pipes.
• Supports a static load of 255 pounds.

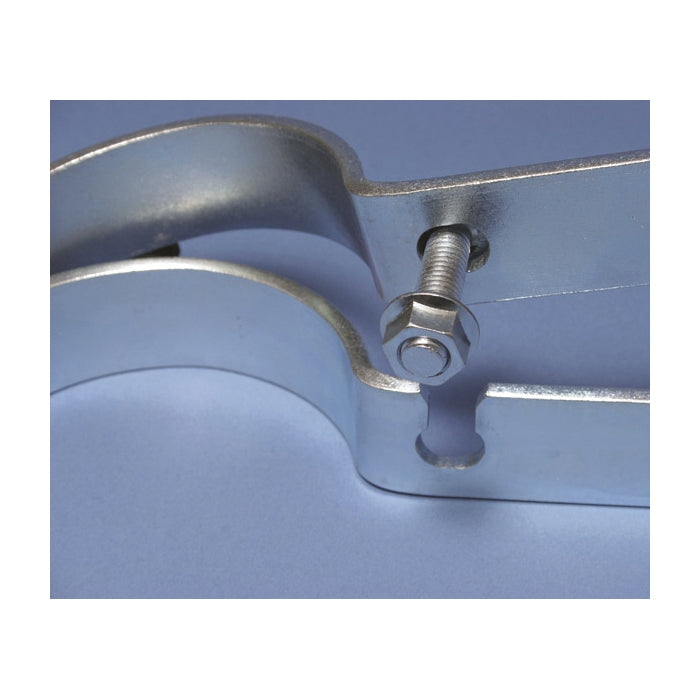

• Slotted holes for quick and easy installation.

Product Highlights

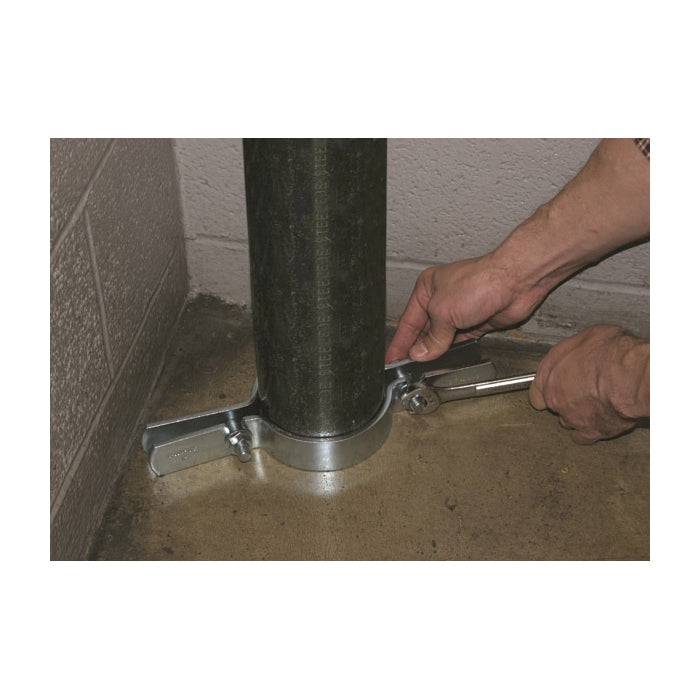

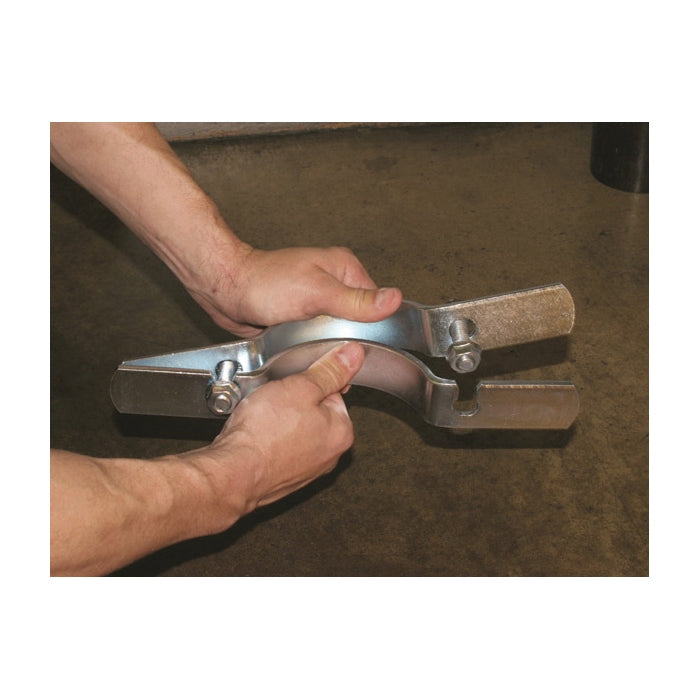

The 5100200EG EZ Riser Clamp simplifies the installation process by eliminating the need for hardware removal. It features serrated flange head bolts, allowing for installation without wrenches.

Product Information

Standard Information

• Brand: nVent CADDY
• Manufacturer: nVent

Technical Specifications

• Catalog Number: 5100200EG
• Item Type: Riser Clamps
• Pipe Size: 2 inches
• Outside Diameter: 2-3/8 inches
• Load Capacity: 255 lb Static
• Dimensions: 1-3/16 inches H x 10-1/4 inches W
• Finish: Electro-Galvanized
• Country of Origin: China
