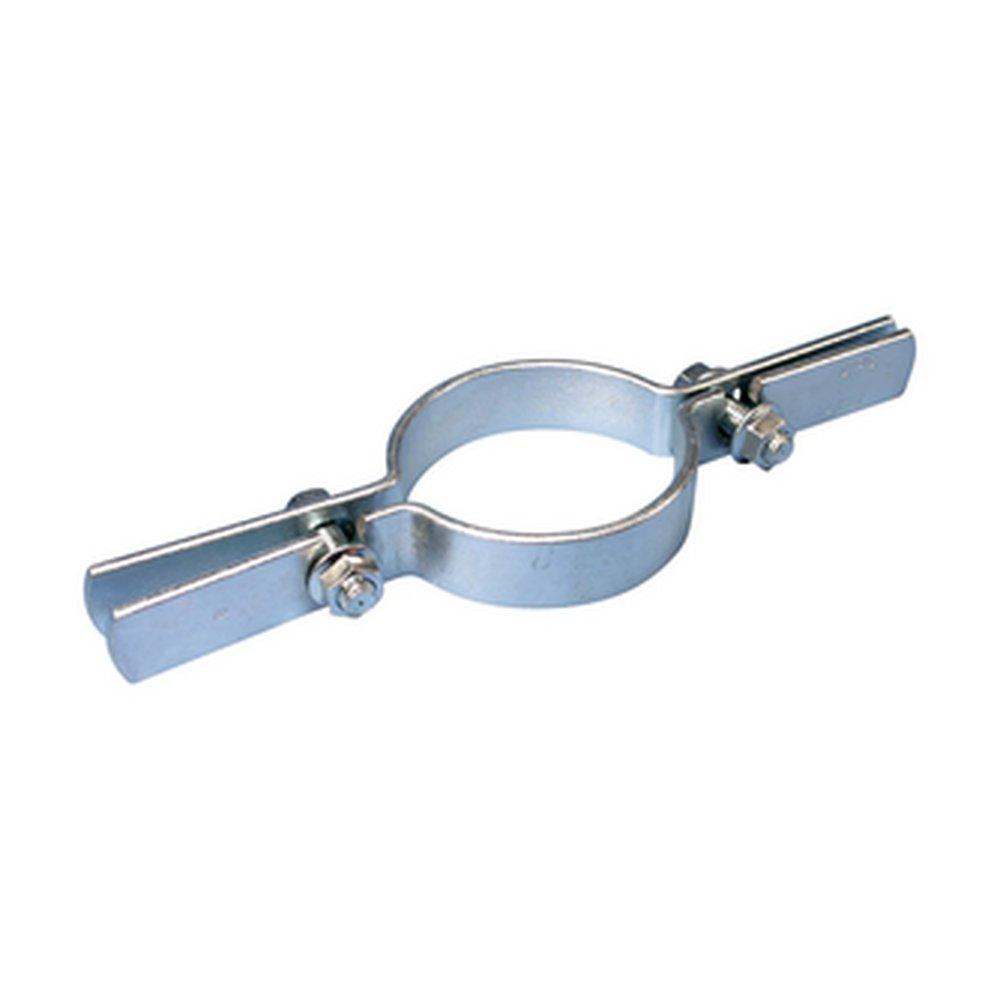

nVent CADDY 5100125EG 510 1-1/4 in. Electrogalvanized Steel Riser Clamp

Product Description

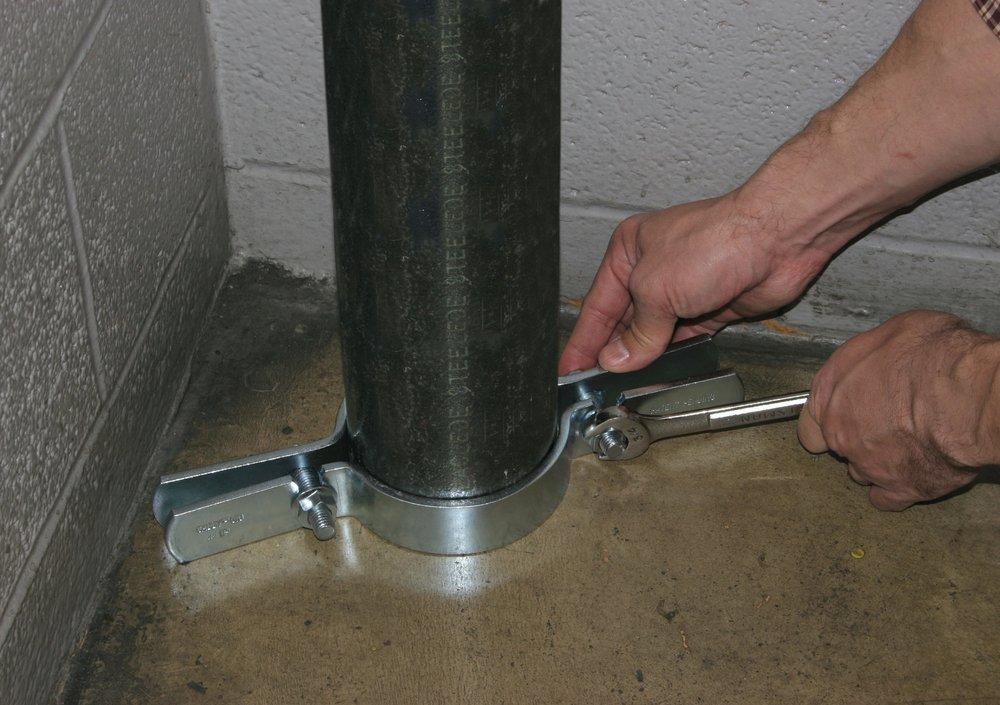

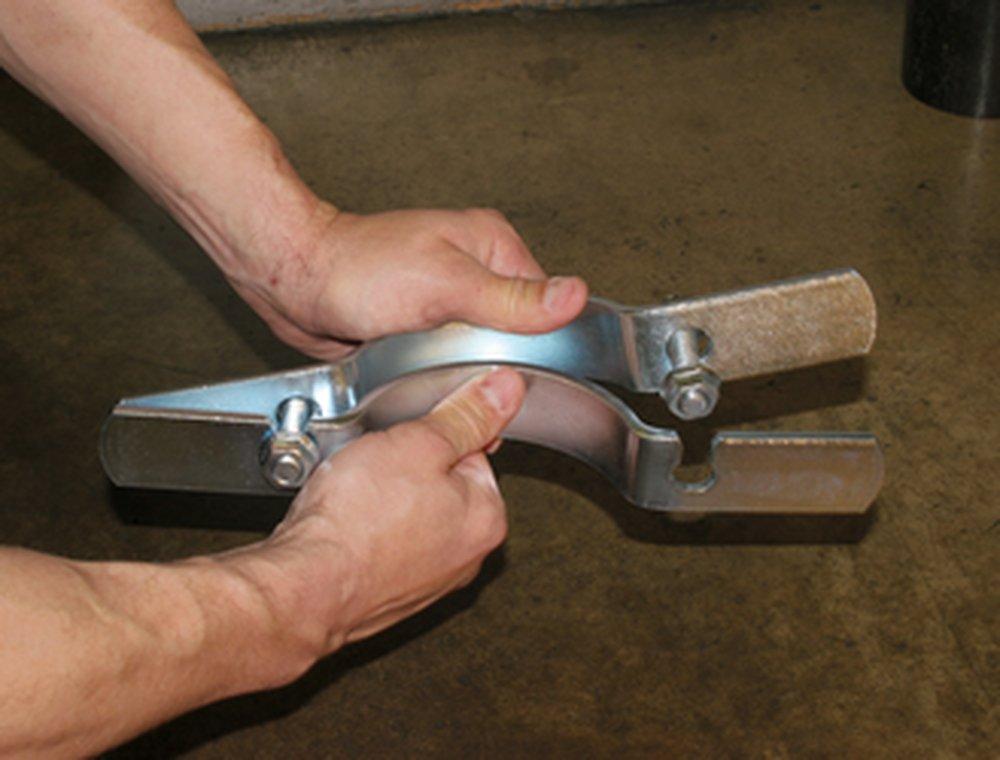

The nVent CADDY 5100125EG is a riser clamp designed for 1-1/4 inch pipe applications. This product simplifies the installation of vertical steel pipe risers. The clamp includes slotted holes, allowing for easy assembly without removing hardware, thus reducing the chances of losing bolts or nuts. The design of the clamp enables faster installation compared to standard options.

• Electro-galvanized finish for corrosion resistance.
• Recommended for vertical steel pipes, including fire sprinkler, HVAC and plumbing systems.
• Enhanced load capacity of 255 pounds static load.

Product Highlights

This product is suitable for various installations in HVAC, plumbing, and refrigeration systems. It is designed to last with a corrosion-resistant finish.

Product Information

Standard Information

• Brand: nVent CADDY
• MPN: 5100125EG

Technical Specifications

• Application: Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications
• Dimensions: 7/8 in H x 9-1/2 in W
• Domestic/Import: Import
• Finish: Electro-Galvanized
• Load Capacity: 255 lb Static
• Material: Steel
• Pipe Size: 1-1/4 in
• Series: EZR
• Torque Rating: 19 ft-lb
• Standards/Approvals: cULus Listed, Federal Specification WW-H-171 Type 8, MSS SP-58 Type 8, ANSI/MSS-SP-69
