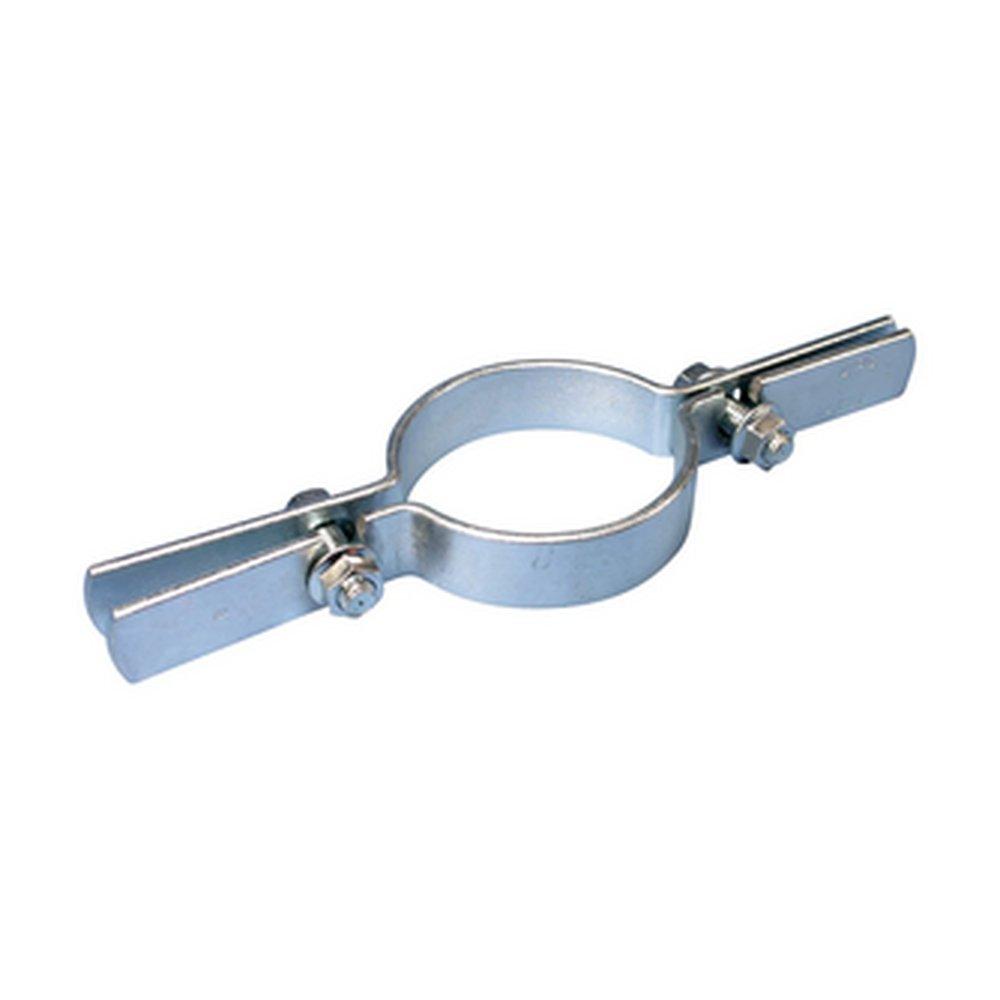

nVent CADDY 5100100EG 1 in. Electrogalvanized Steel Riser Clamp E5100100EG

Product Description

The nVent CADDY 5100100EG is a riser clamp designed for suspending vertical steel pipe risers. It features slotted holes to facilitate quick installation without the need for removing hardware. This reduces the chance of losing nuts or bolts during the assembly process. The clamp installs quickly compared to standard riser clamps and integrates a special serrated flange head design that allows for tightening without the use of wrenches. The clamp is suitable for pipes with a diameter of one inch and can support a static load of up to two hundred fifty-five pounds.

• Recommended for suspending vertical steel pipe risers
• Slotted holes make assembly easy, eliminating loose hardware
• Serrated flange head bolts eliminate the need for wrenches

Product Highlights

The nVent CADDY 5100100EG is built to simplify the installation process for HVAC and plumbing professionals.

Product Information

Standard Information

• Brand: nVent CADDY
• MPN: 5100100EG

Technical Specifications

• Dimensions: 1 in H x 9 in W
• Finish: Electro-Galvanized
• Load Capacity: 255 lb Static
• Material: Steel
• Outside Diameter: 1.315 in
• Pipe Size: 1 in
• Series: 510
• Domestic/Import: Import
