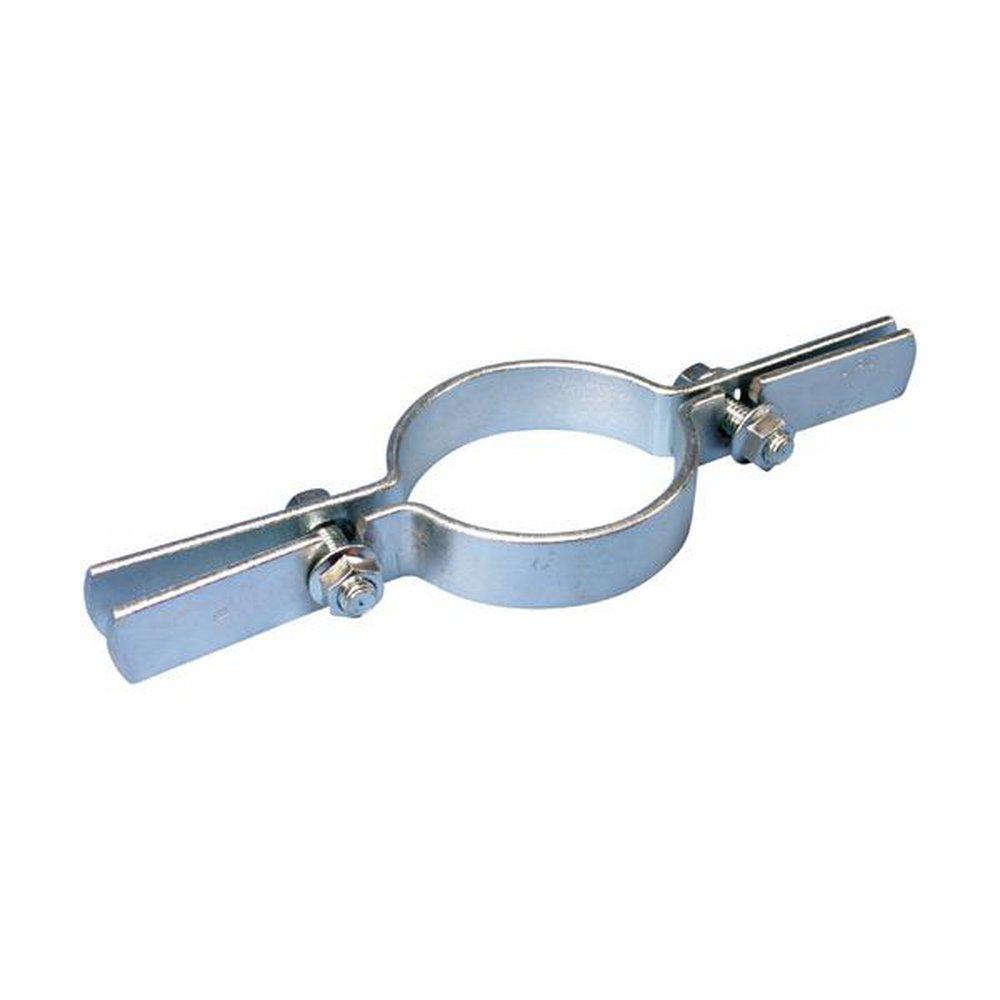

nVent CADDY 5100050EG Electrogalvanized Steel Riser Clamp for Fire Protection

Product Description

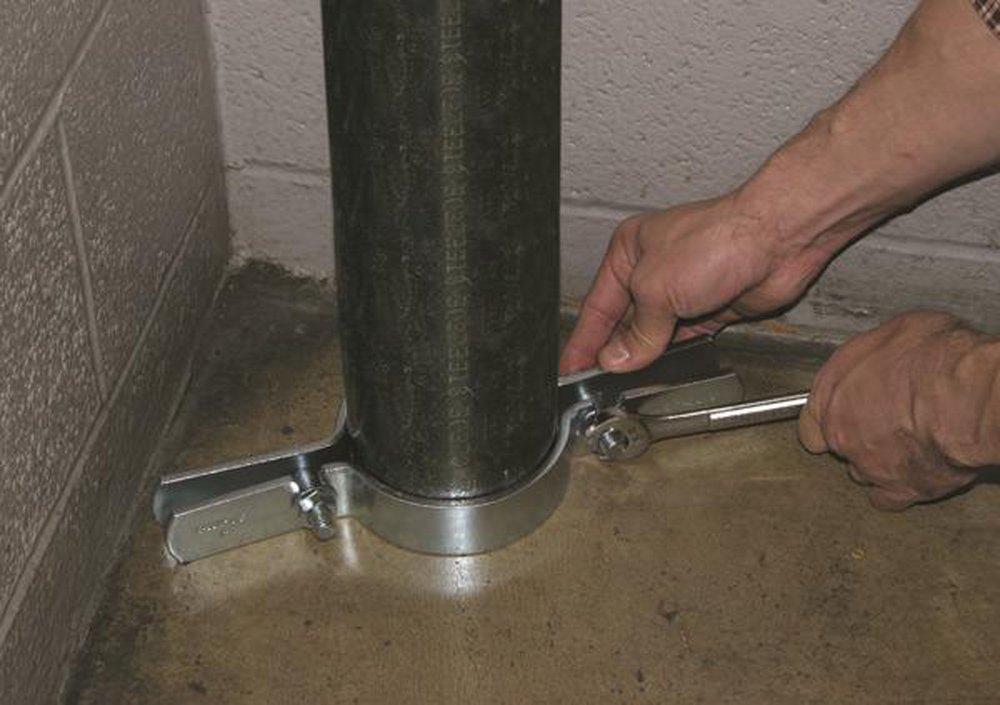

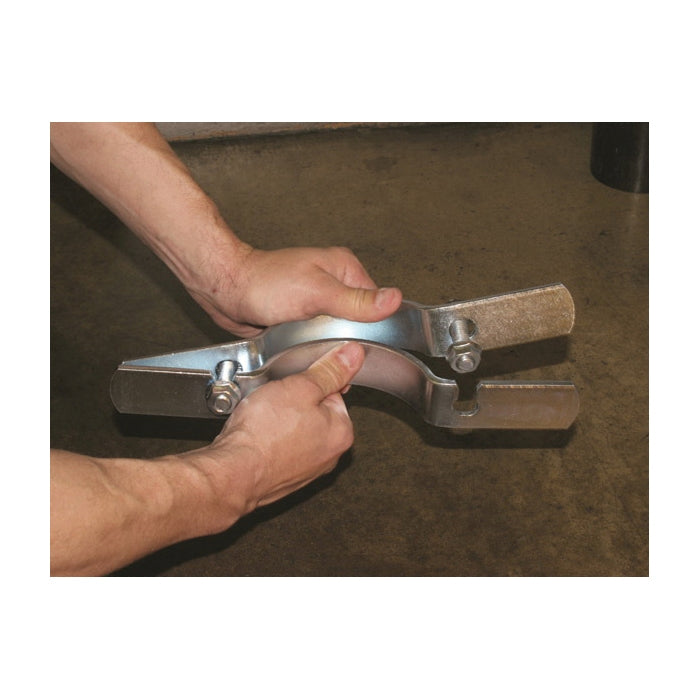

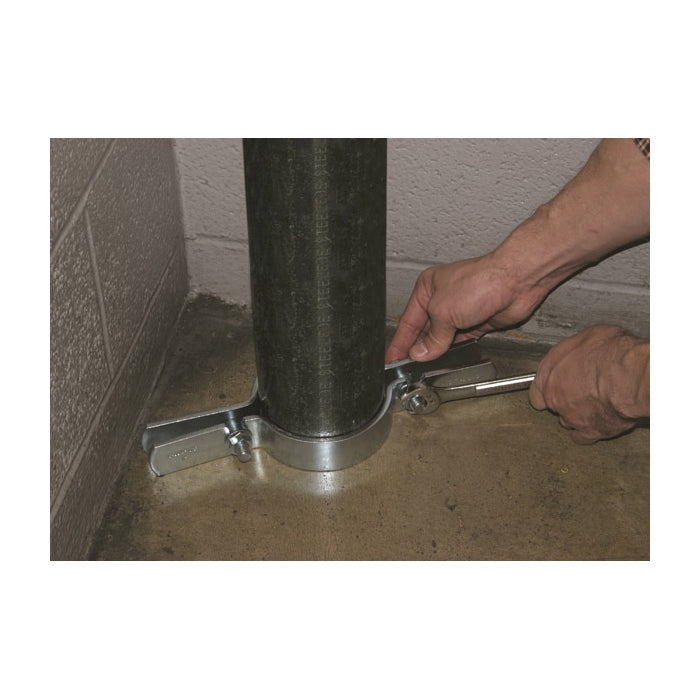

The nVent CADDY 5100050EG is an efficient riser clamp designed for suspending vertical steel pipe risers. The design features slotted holes that allow for quick installation without needing to remove hardware. This feature saves time and improves efficiency during installation. With serrated flange head bolts, there is no need for wrenches on both the bolt and nut, simplifying the process even further.

• Recommended for vertical steel pipe risers
• Simple assembly with slotted holes
• Superior corrosion resistance

Product Highlights

This riser clamp ensures a secure fit for pipe applications while providing ease of use for installers.

Product Information

Standard Information

• Brand: nVent CADDY
• Part Number: 5100050EG

Technical Specifications

• Material: Steel
• Finish: Electro-Galvanized
• Pipe Size: 1/2 in
• Load Capacity: 255 lb Static
• Outside Diameter: 0.84 in
• Dimensions: 1 in H x 8-1/2 in W
• Series: 510
• Domestic/Import: Import
