nVent CADDY 454017 Superfix 454 Standard Duty, 4.2524.488 OD, 4 Pipe

Product Description

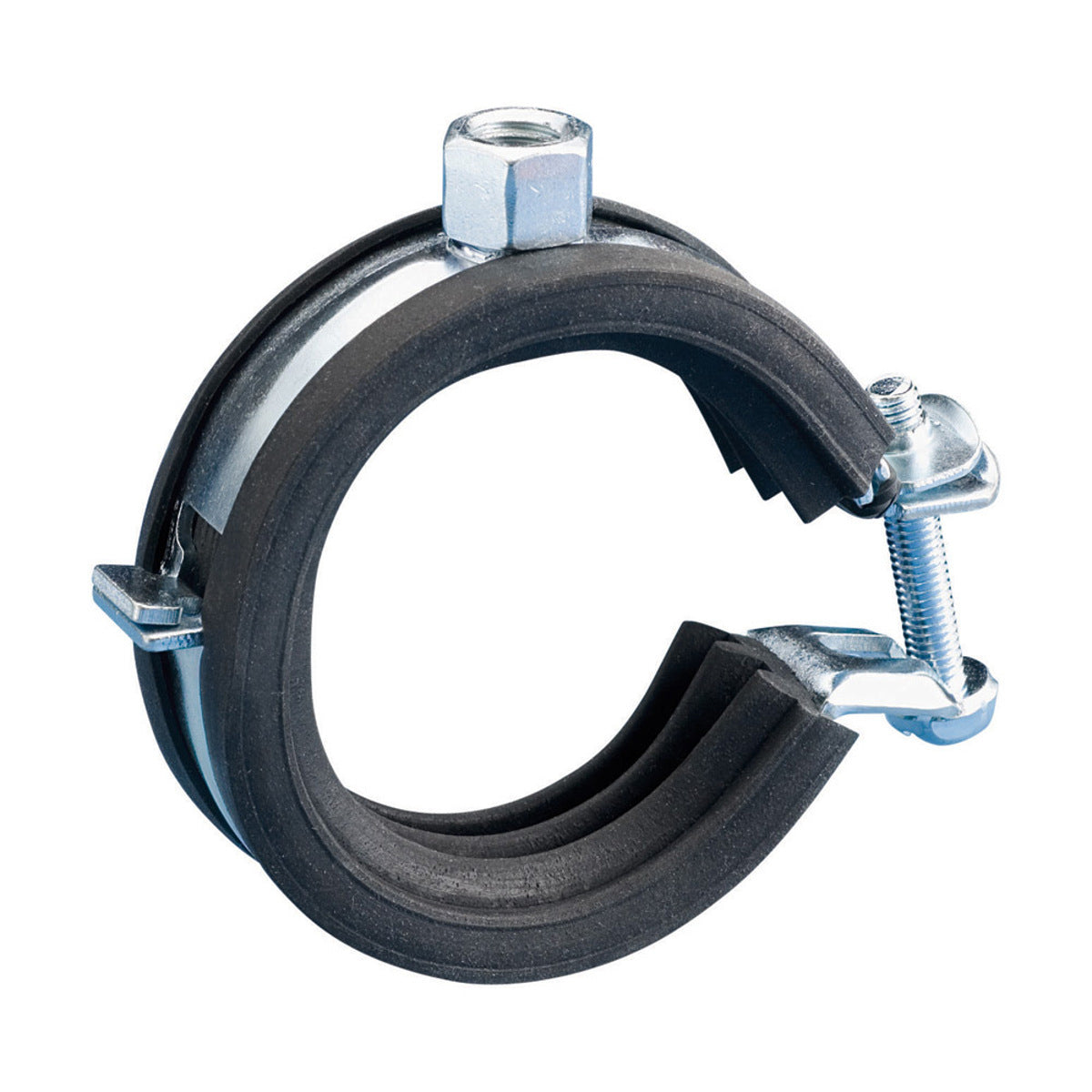

The nVent CADDY Superfix 454, MPN 454017, is a pipe clamp that simplifies installation for HVAC, plumbing, and refrigeration applications. This clamp is designed for use with steel and copper pipes from one quarter inch to four inches in diameter. Its unique hinged design allows for easy assembly without disassembly, making it suitable for quick installations. The clamp can be secured with one hand, enhancing efficiency on the job.

• Supports pipe sizes from one quarter inch to four inches
• Electro-galvanized coating provides corrosion resistance
• Designed for easy, no-tool closure with one-handed operation

Product Highlights

The nVent CADDY Superfix 454 features a robust all-steel design, ensuring reliable performance even in heated environments. This product meets various standards for sound insulation and is well-suited for professional-grade systems in commercial settings.

Product Information

Standard Information

• Catalog Number: 454017
• Manufacturer: nVent
• Brand: nVent CADDY
• Country of Origin: China
• UPC: 782856590606
• Item Type: nVent CADDY Superfix
• Application: HVAC, Plumbing and Refrigeration

Technical Specifications

• Pipe Size: 4 inches
• Load Capacity: 300 lb
• Temperature Rating: -58 to 230 degrees F
• Finish: Electro-Galvanized
• Dimensions: 1-1/8 inches thick
• Series: 454
• Specifications: 4.252 to 4.488 inches outside diameter
