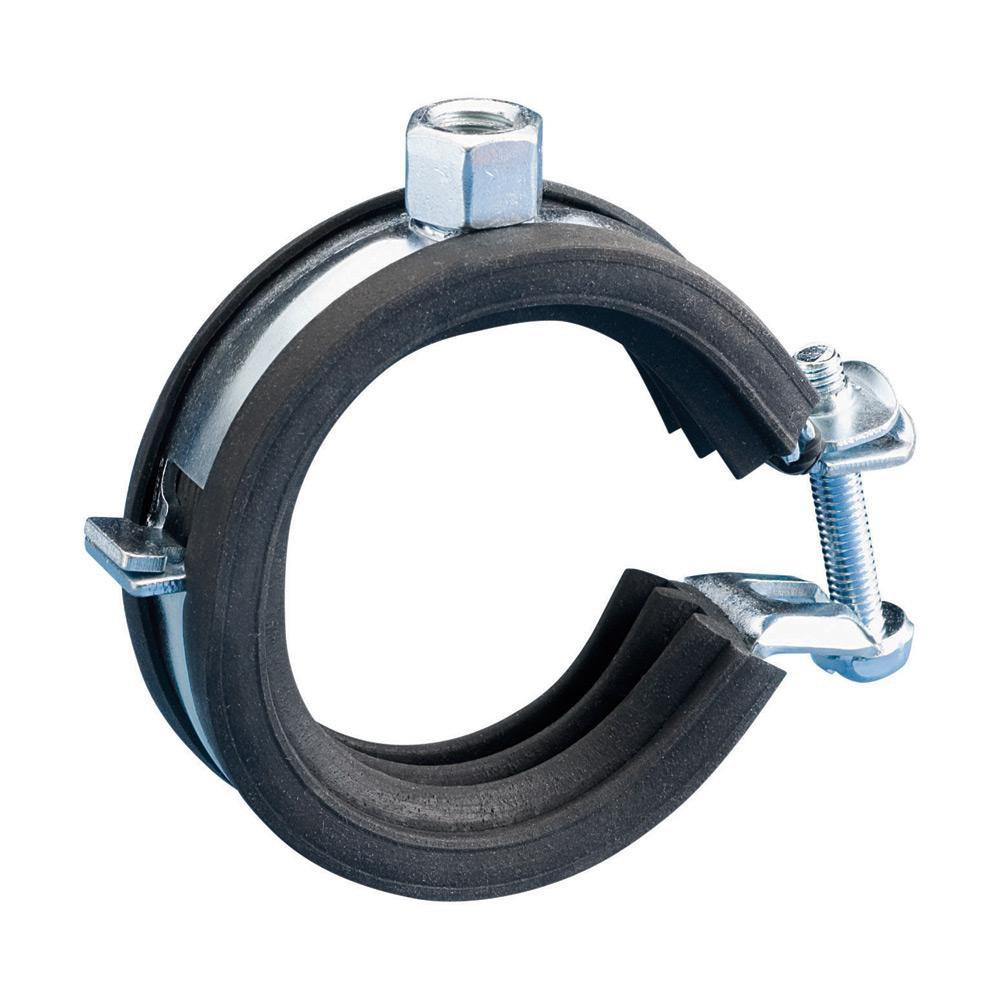

nVent CADDY 454009 Superfix 454 Series 2 in. Threaded Electrogalvanized EPDM, SBR and Steel Pipe Clamp

Product Description

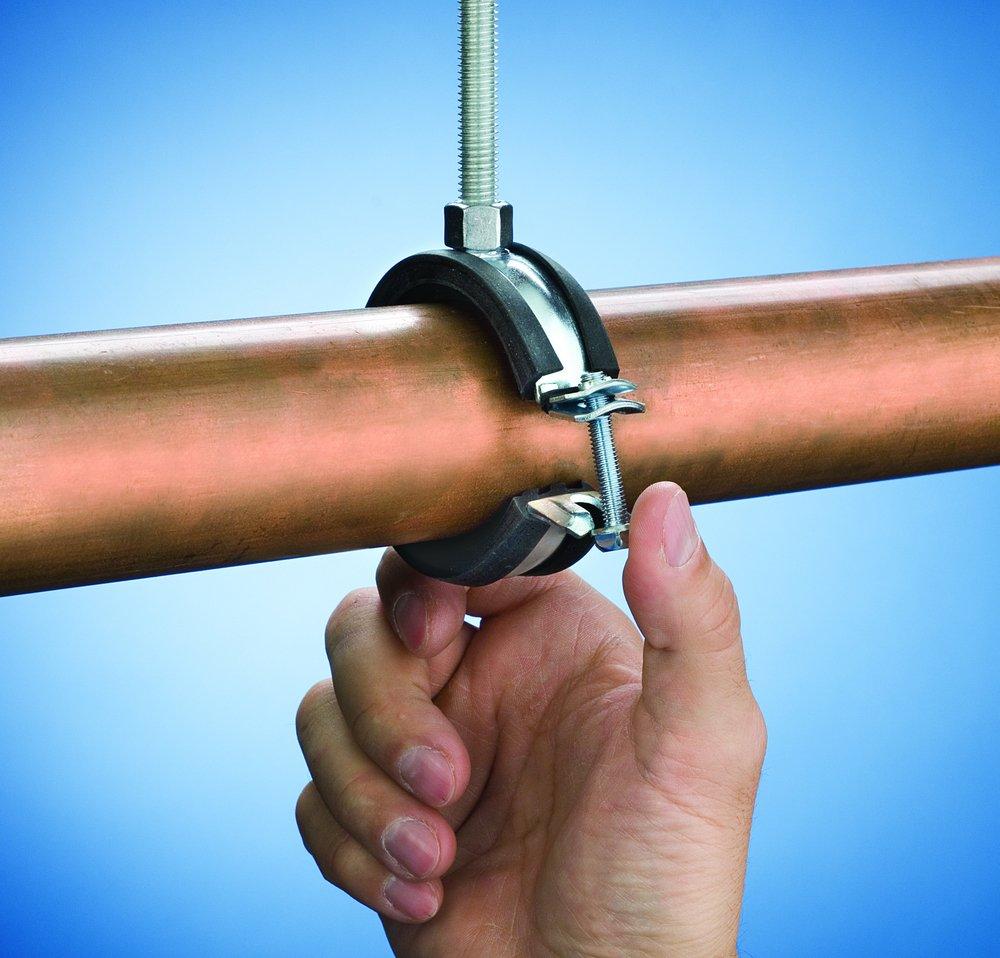

The nVent CADDY Superfix 454 is designed for securing steel and copper pipes easily. With a unique hinged mechanism, it allows for quick installation without the need to take the clamp apart. The clamp can be closed with one hand, simplifying the installation process. After installation, you can tighten the screw to secure the pipe firmly.

• Hinged design for easy installation
• Compatible with 2 inch diameter copper tube
• Durable steel construction with electro-galvanized finish

Product Highlights

This product is ideal for suspending non-insulated piping systems and complies with various industry standards.

Product Information

Standard Information

• Brand: nVent CADDY
• MPN: 454009

Technical Specifications

• Cushion Material: EPDM/SBR
• Domestic/Import: Import
• Finish: Electro-Galvanized
• Load Capacity: 180 lb
• Material: Steel
• Outside Diameter: 2.125 to 2.283 inches
• Pipe Size: 2 inch Copper Tube
• Series: 454
• Temperature Rating: -58 to 230 degrees F
• Thickness: 15/16 inches
• Type: Standard Duty
