nVent CADDY 454006 Superfix 454 Standard Duty, 1.261.378 OD, 1 Pipe, 1 1/4 Copper Tube

Product Description

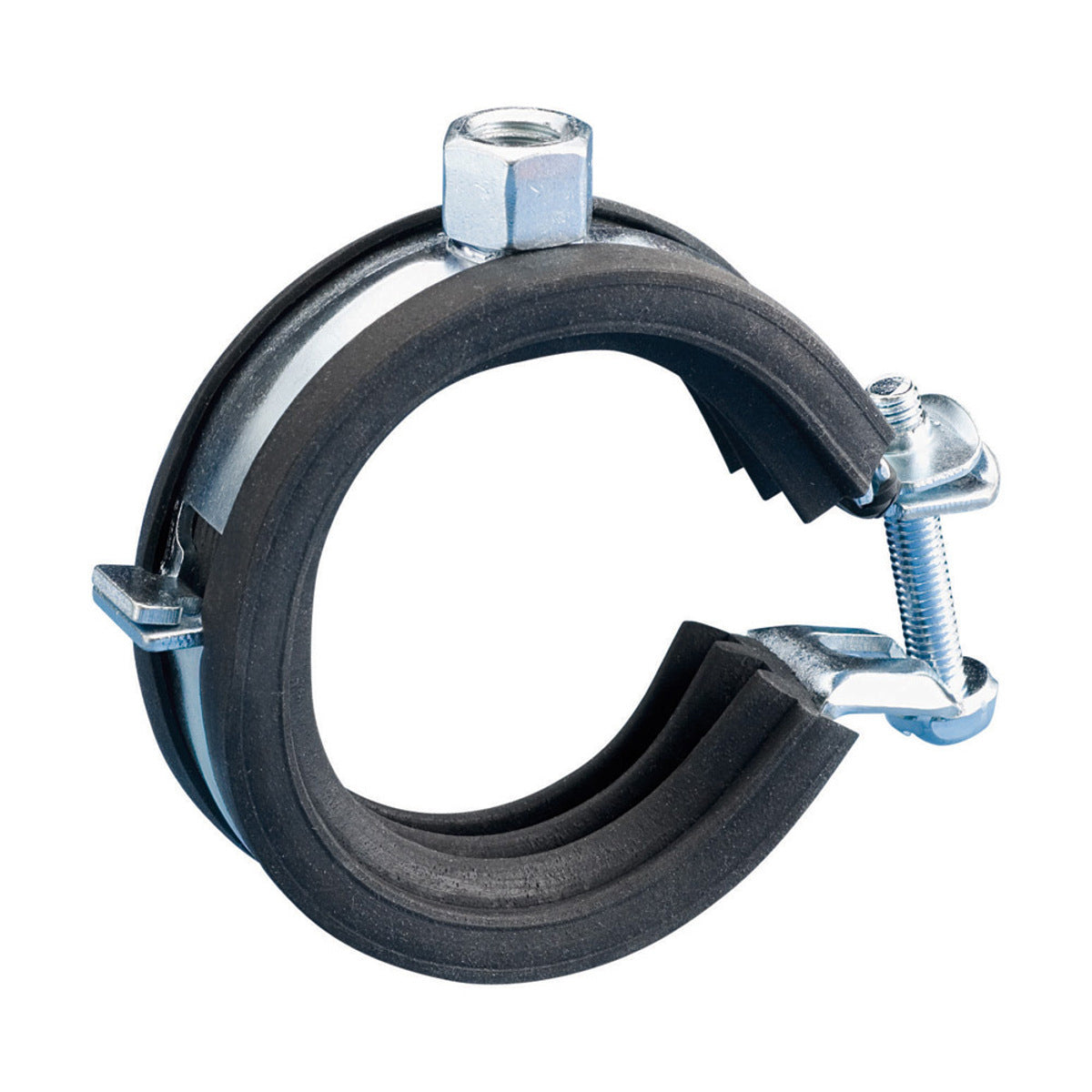

nVent CADDY Superfix 454 is a pipe clamp designed for standard duty applications. This product is suitable for both steel and copper pipes ranging from one and one-fourth inches to one inch in diameter. The clamp features a unique hinged design that allows for easy installation and secure fastening without the need for disassembly.

• Applicable for HVAC, plumbing, and refrigeration systems.
• Cushioned with EPDM/SBR material for better support and protection.
• Easy one-handed operation; no need to turn screws during installation.

Product Highlights

This clamp is constructed from steel and is electro-galvanized to resist corrosion. It is rated for loads up to one hundred eighty pounds and operates effectively in temperatures from negative fifty-eight to two hundred thirty degrees Fahrenheit.

Product Information

Standard Information

• Brand: nVent CADDY
• Catalog Number: 454006

Technical Specifications

• Application: HVAC, Plumbing and Refrigeration
• Cushion Material: EPDM/SBR
• Load Capacity: 180 lb
• Material: Steel
• Finish: Electro-Galvanized
• Pipe Size: 1-1/4 in Copper Tube, 1 in Iron Pipe
• Temperature Rating: -58 to 230 deg F
• Series: 454
