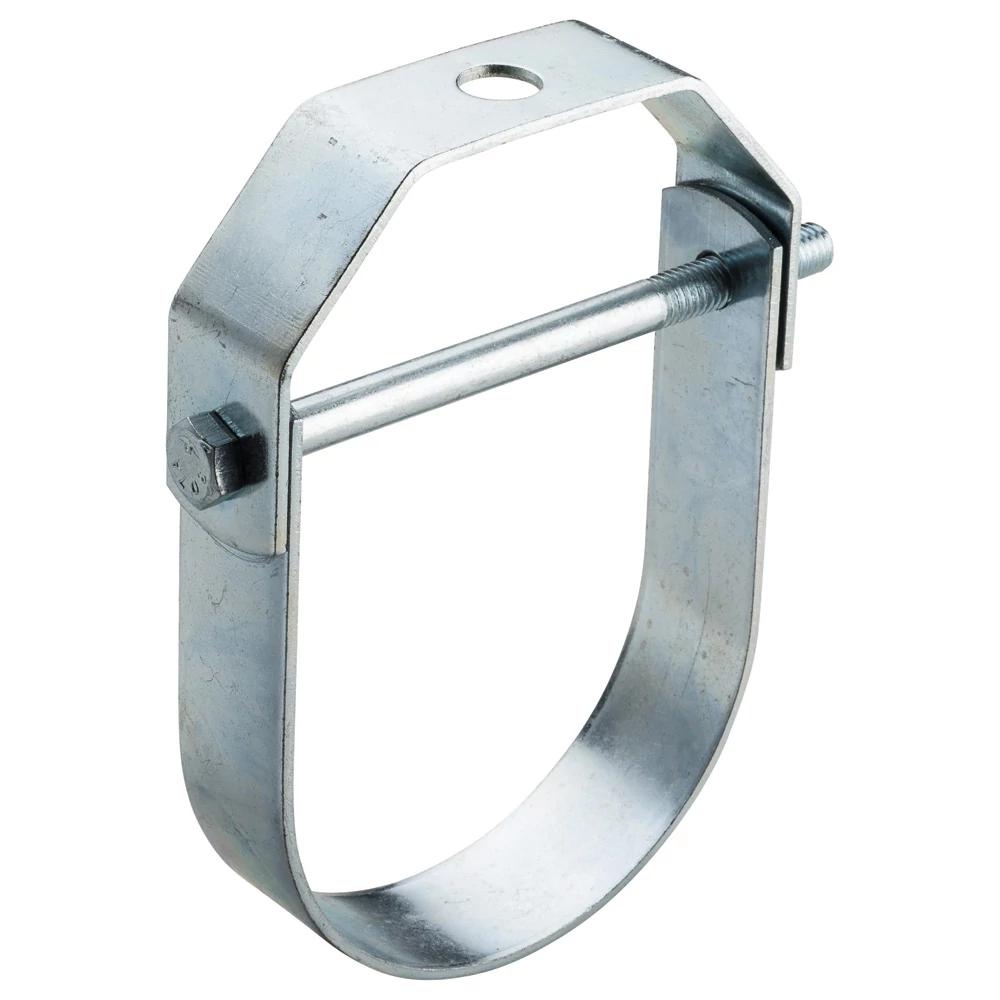

nVent CADDY 4010500EG 401 Clevis Hanger 5 Pipe 5.563 OD Replacement 4010500EG

Product Description

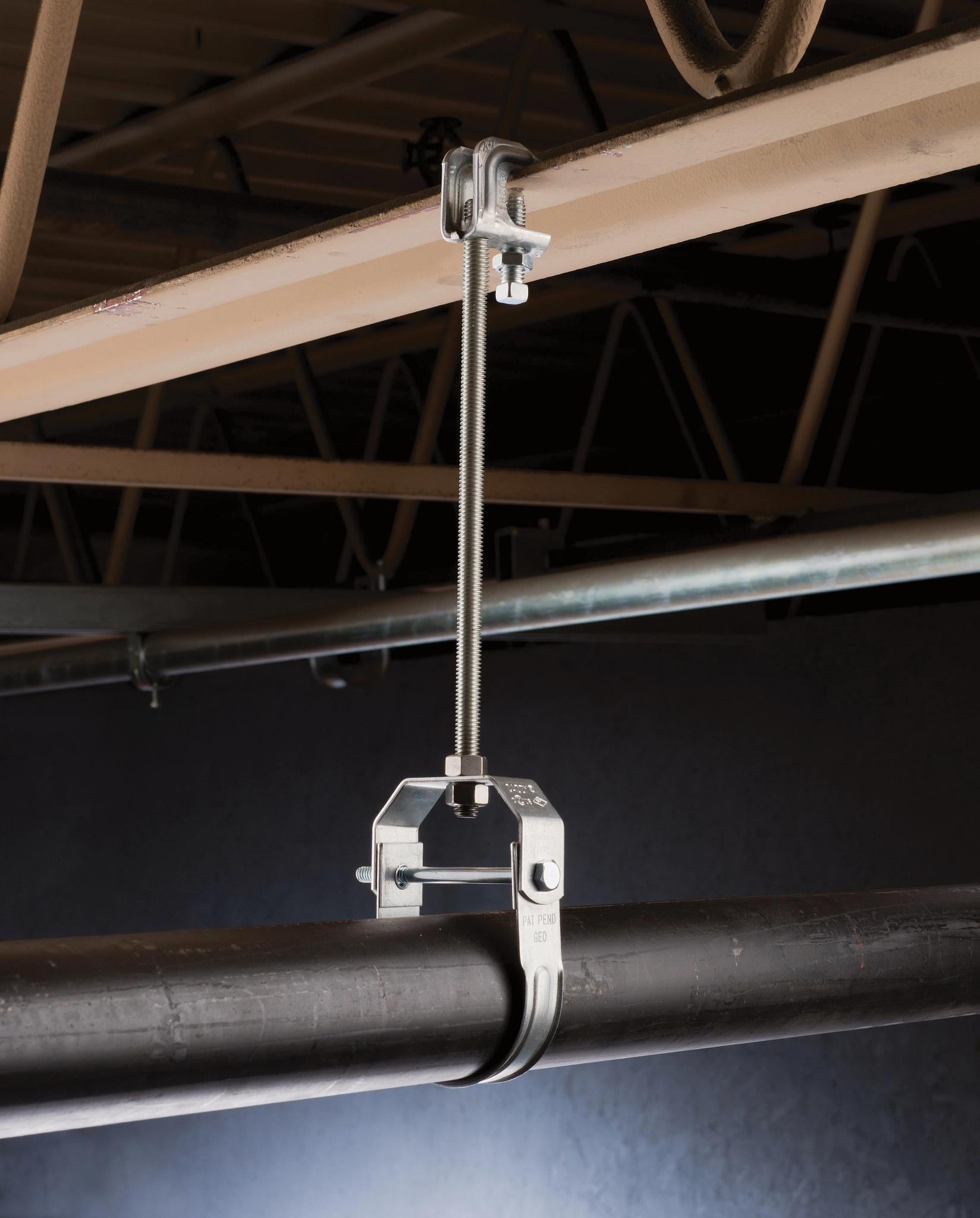

The nVent CADDY 4010500EG is a clevis hanger designed for use with five-inch pipes. It offers a reliable suspension system, capable of supporting a load of up to fourteen hundred and thirty pounds. The steel construction features an electro-galvanized finish, which enhances its durability and corrosion resistance. This hanger allows for flexible installation as it pivots to let the pipe be fed from either direction.

• Supports up to 1430 lb load capacity
• Designed for five-inch pipes
• Clevis bottom pivots for ease of installation

Product Highlights

The 4010500EG clevis hanger is ideal for the suspension of stationary non-insulated pipe lines.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 4010500EG

Technical Specifications

• Material: Steel
• Finish: Electro-Galvanized/Pre-Galvanized
• Pipe Size: 5 in
• Rod Size: 5/8 in
• Load Capacity: 1430 lb
• Dimensions: 9-1/16 in H
• Specifications: 5.563 in OD
• Suitable For Use With: Suspension of Stationary Non-Insulated Pipe Line
