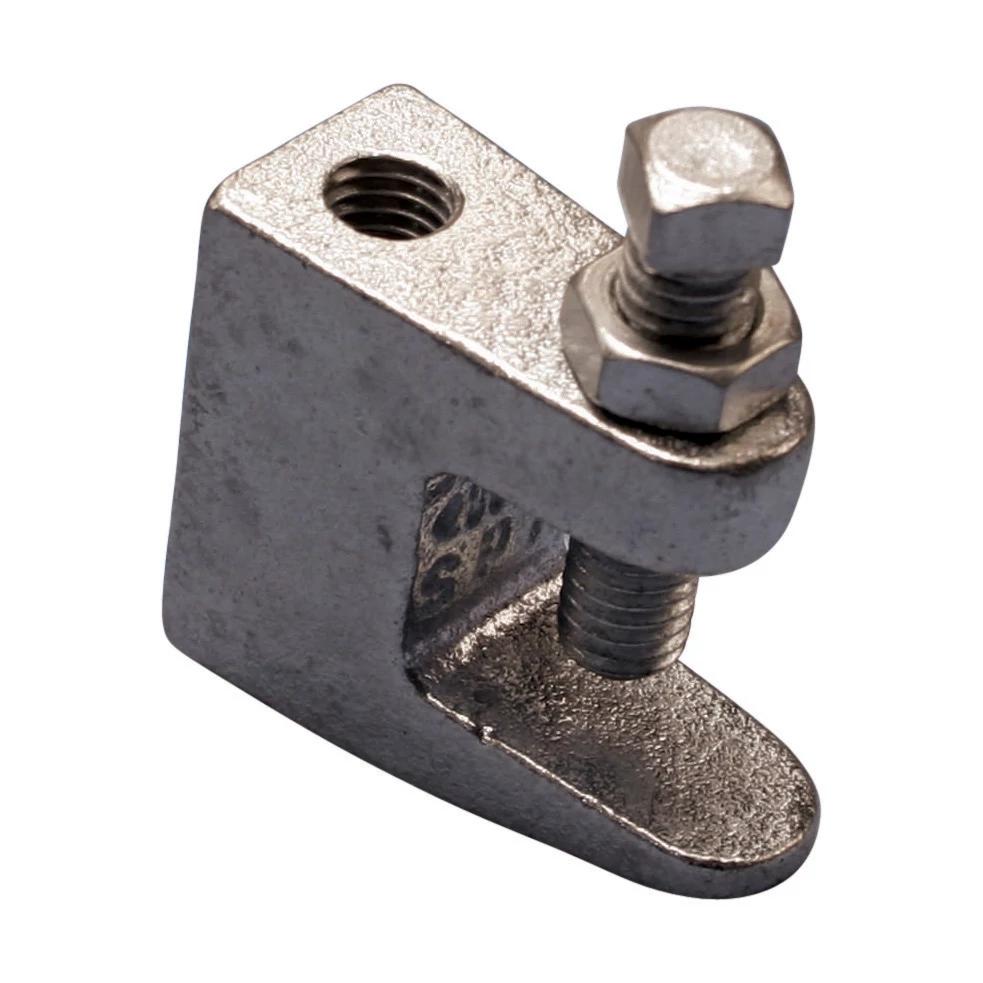

nVent CADDY 3000075PL Universal Beam Clamp 3/4 in Rod 760/950 lb Static Load

Product Description

The nVent CADDY 3000075PL Universal Beam Clamp is designed for 3/4 inch rods and can accommodate a maximum flange thickness of thirteen-sixteenths inches. This clamp is capable of supporting static loads up to seven hundred sixty to nine hundred fifty pounds. It is suitable for use with beams and purlins in various applications.

• Compatible with beam and purlin structures
• Load capacity: 760/950 lb static
• Constructed from durable steel materials

Product Highlights

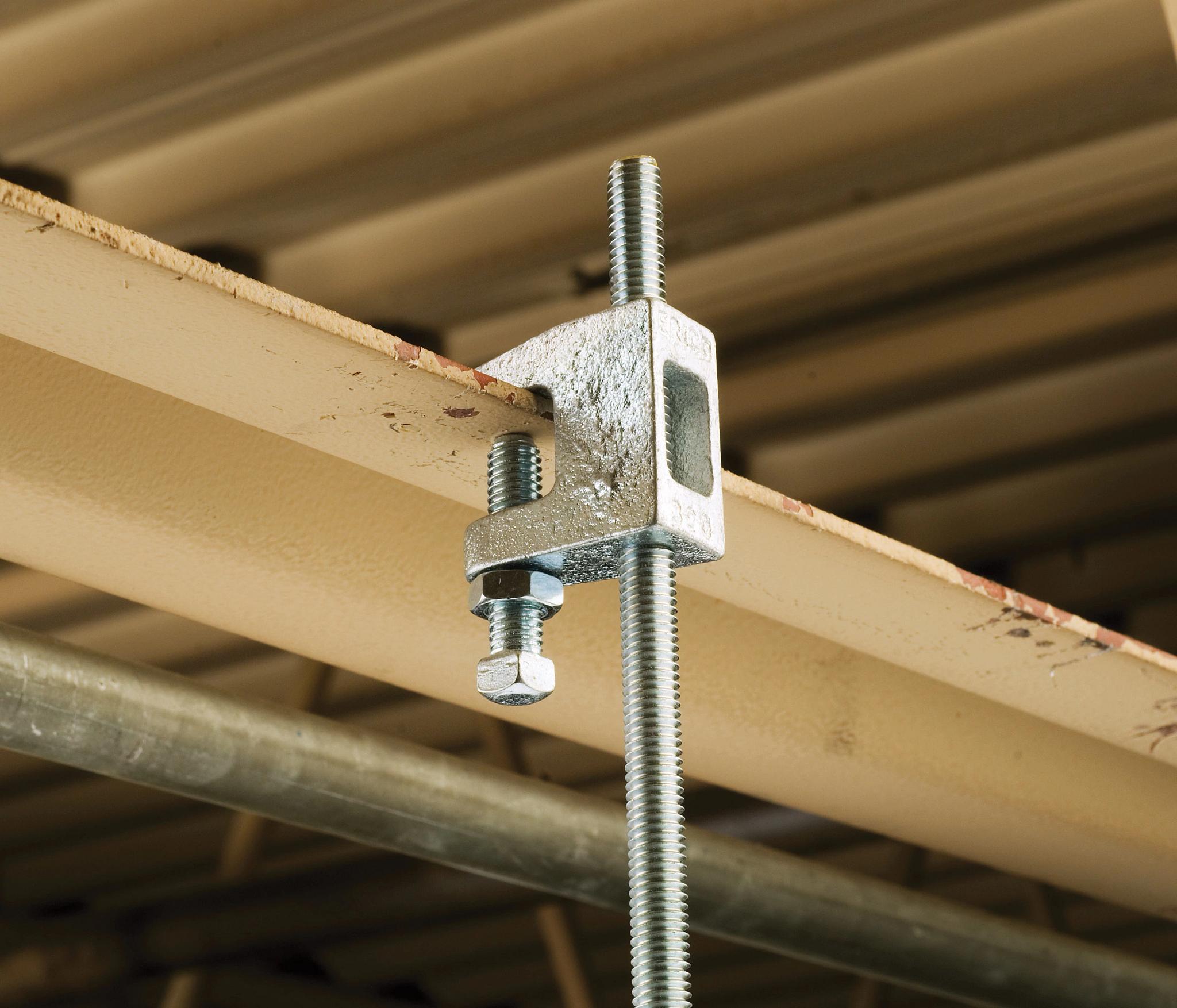

This clamp is reliable for securing electrical and HVAC installations.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 3000075PL

Technical Specifications

• Type: Universal
• Material: Steel
• Rod Size: 3/4 inch
• Flange Thickness: 13/16 inch
• Load Capacity: 760/950 lb static
• Specifications: 1-1/8 inch Hole, 5 ft-lb Torque
• APprovals: cULus Listed, UL Listed, FM Approved
• Suitable For Use With: Beam/Purlin
