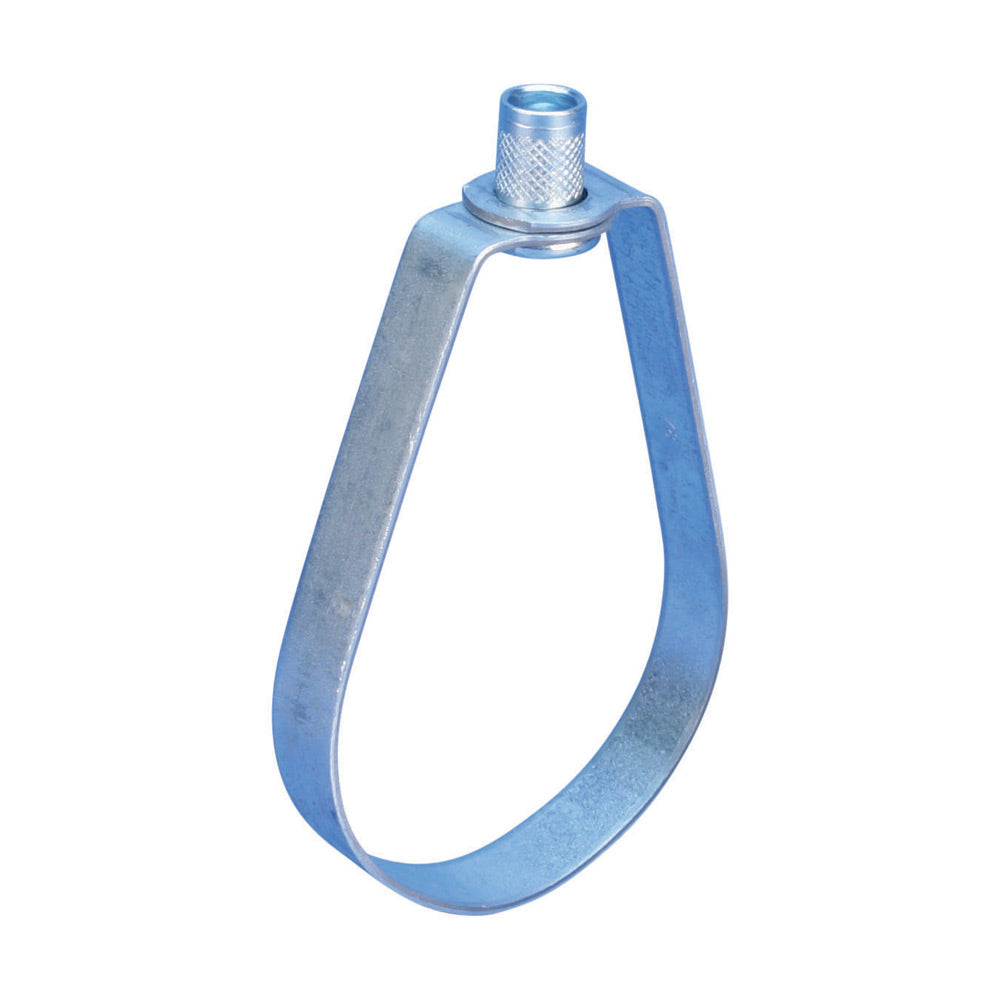

nVent CADDY 1000800EG 100 Heavy Duty Loop Hanger 8 Pipe 8.625 OD

Product Description

The nVent CADDY 1000800EG is a heavy-duty loop hanger designed for use with eight-inch pipes. This product is made from steel and has a pre-galvanized finish, ensuring durability and resistance to rust. It meets industry standards by conforming to Federal Specification WW-H-171 (Type 10) and Manufacturers Standardization Society (MSS) SP-58 (Type 10).

• For eight-inch pipes with an outside diameter of eight and five-eighths inches.
• Rated for a load capacity of one thousand two hundred fifty pounds.
• Ideal for the suspension of stationary non-insulated pipe lines.

Product Highlights

This loop hanger is suitable for various applications in electrical and plumbing installations, ensuring reliable and safe pipe support.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 1000800EG

Technical Specifications

• Type: Heavy Duty Swivel
• Pipe Size: 8 in
• Rod Size: 7/8 in
• Load Capacity: 1250 lb
• Material: Steel
• Finish: Pre-Galvanized
• Dimensions: 13-1/8 in H
• Specifications: 8-5/8 in OD
• Suitable For Use With: Suspension of stationary non-insulated pipe line
