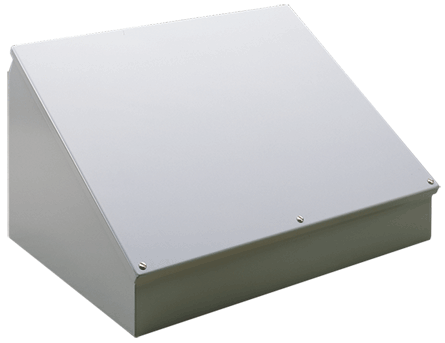

nVent C8C16 HOF O/T Consolet Enclosure Power 8 in L x 16 in W x 7.09 in D

Product Description

The nVent HOFFMAN C8C16 is a Consolet enclosure designed for housing small control or instrumentation devices. It measures eight inches in length, sixteen inches in width, and seven point zero nine inches in depth. This enclosure features a NEMA 12/13/IP65 rating, making it suitable for a variety of environments.

• Constructed from fourteen gauge steel.
• Seams are continuously welded and ground smooth.
• Control panel attaches using a continuous hinge along the bottom edge.

Product Highlights

This enclosure is ideal for surface mounting and provides a sloped cover for improved accessibility. It is suitable for placing on desktops or pedestals.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: C8C16

Technical Specifications

• Application: For mounting control devices requiring access at a thirty or sixty degree angle.
• Color: Gray
• Cover Type: Continuous Hinged/Sloped
• Depth: 7.09 inches
• Finish: Polyester Powder Painted
• Length: 8 inches
• Material: Steel
• Mounting Type: Surface
• NEMA Rating: NEMA 12/13/IP65
• Series: C5 Series
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94
• Width: 16 inches
