Nvent C6 C Series Electrical Box Bracket To Stud, 2 1/2 feet, 3 5/8 feet, 5 1/2 feet, 6 feet Wall Depth, 5.89 feet

Product Description

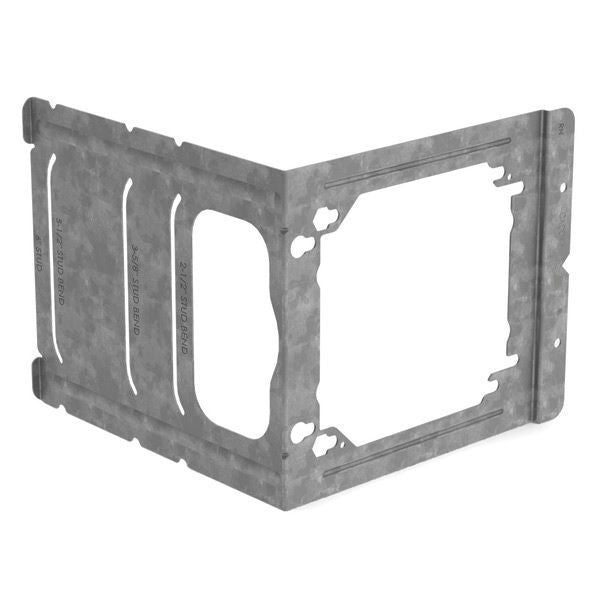

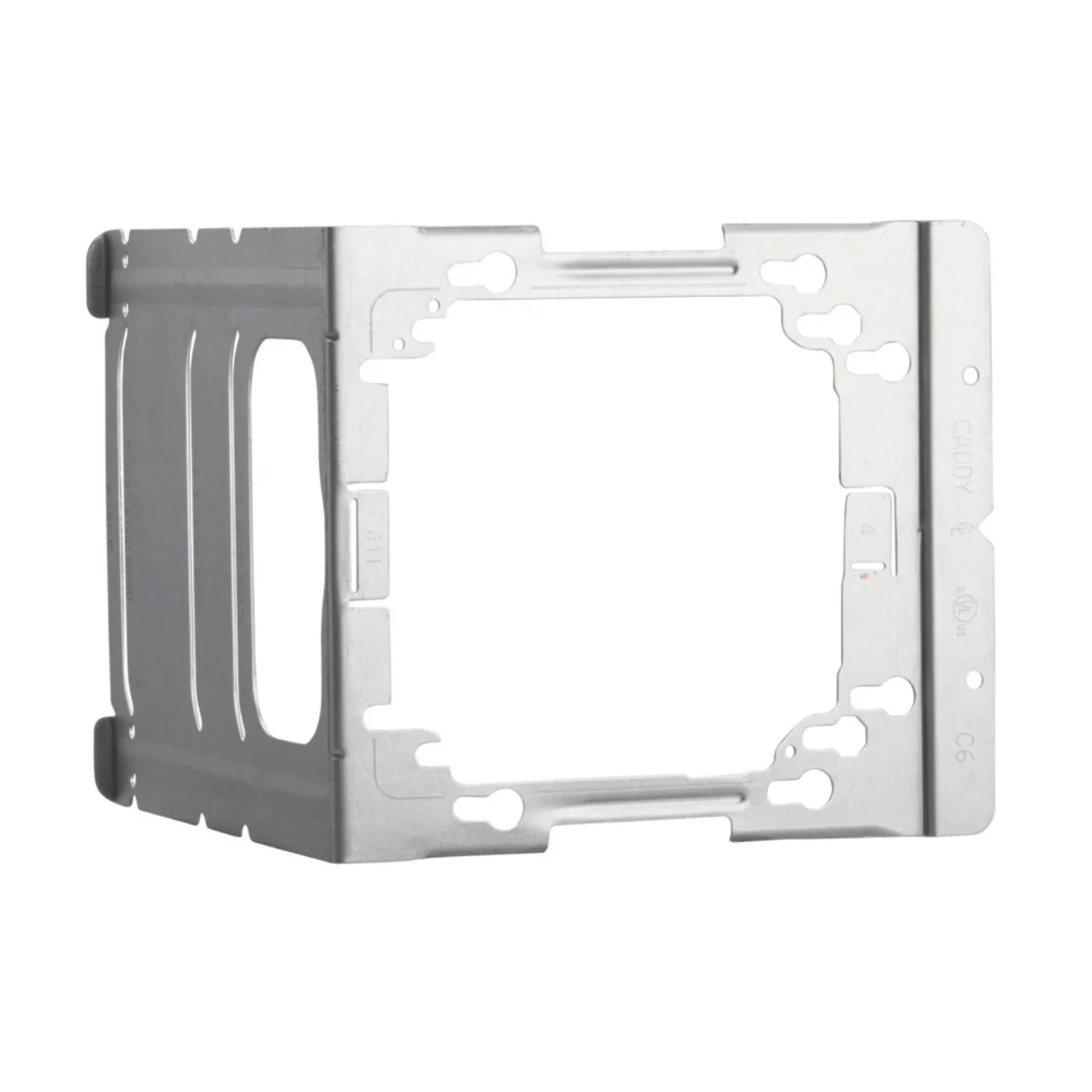

The NVENT C6 C Series Electrical Box Bracket to Stud replaces H-Brackets with an improved design providing increased rigidity. It works with standard and adjustable single and double gang mud rings. Designed for 2 1/2", 3 5/8", 5 1/2", 6" stud wall depths and 4" and 4 11/16" boxes.

• Improved keyhole pattern to make mounting of 4 11/16" boxes easier
• Box lock tab secures box to bracket during assembly
• Designed with thicker steel to significantly increase rigidity

Product Highlights

The C6 bracket features additional bend points for greater versatility and mounts mud rings for low voltage applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: C6
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Finish: Pregalvanized
• Stud Wall Depth: 2 1/2" - 3 5/8"; 5 1/2" Min; 6" Min
• Box Size: 4";4 11/16"
• Depth (D): 6.03"
• Height (H): 5.05"
• Width (W): 5.91"
• Thickness (T): 0.03"
• UPC: 782856864271
• EAN: 0782856864271
• Standard Packaging Quantity: 50
• Packing Quantity: 1
• ECCN: EAR99
• Series: C Series
• Use With: Electrical Box
• Box Depth: 3.51 in
• Depth: 5.89 in
• Width: 5-3/4 in
• Standard & Approvals: cULus Listed
