Nvent C4 Bracket Box Electrical 4in 4-11/16in

Product Description

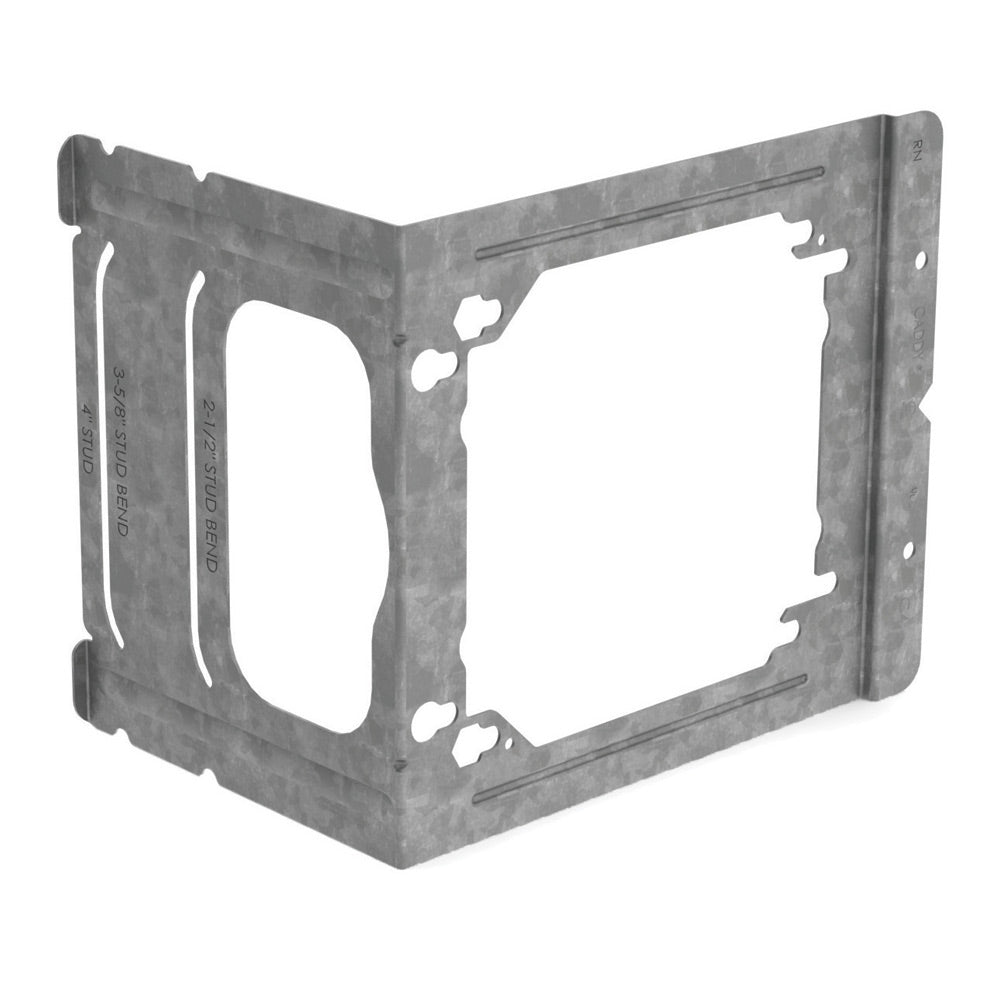

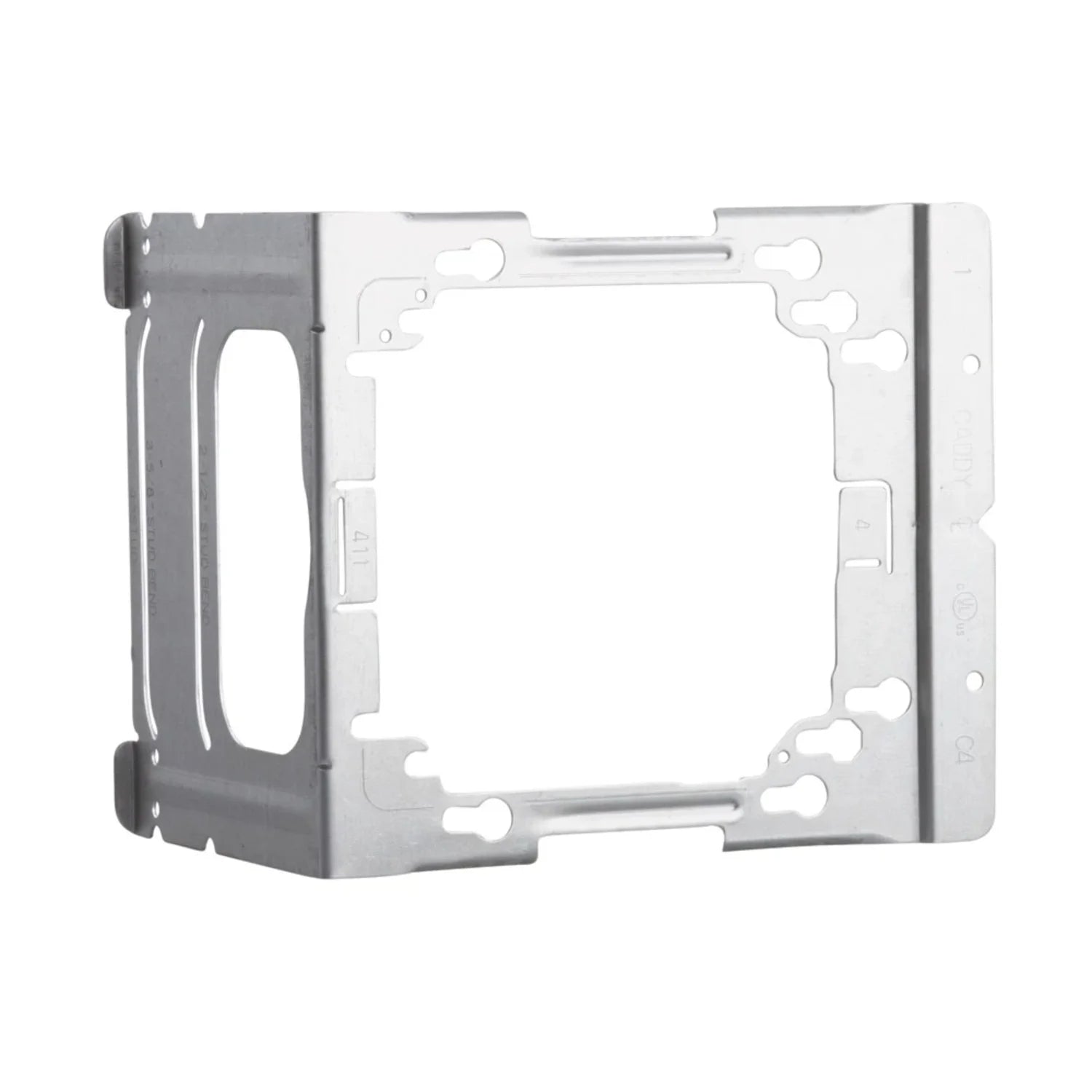

The NVENT C4 Electrical Box Bracket is a pre-galvanized steel stud-mount bracket from the C Series, designed for electrical box installations. It accommodates 4 inch and 4-11/16 inch electrical boxes and is compatible with 2-1/2 inch, 3-5/8 inch, and 4 inch stud walls. This bracket is engineered with thicker steel for enhanced rigidity, preventing box movement and trim out issues in various electrical fixing and fastening applications.

• Replaces H-brackets with improved design.
• Thicker steel to significantly increase rigidity and help prevent box movement and trim out issues.
• Works with both standard and adjustable 1 and 2-gang mud rings.

Product Highlights

Improved design, thicker steel construction, and compatibility with standard and adjustable mud rings for secure electrical box mounting.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: C4

Technical Specifications

• Finish: Pre-Galvanized
• Series: C Series
• Box Size: 4 in, 4-11/16 in
• Stud Wall Compatibility: 2-1/2 in, 3-5/8 in, 4 in Stud Wall
• Suitable For Use With: Electrical Box
• Material: Steel
• Application: Electrical Fixing and Fastening Applications
• Mounting Type: Stud
• Standards/Approvals: UL Recognized|cUL Recognized|cULus Listed|cUL QCRV7.E165702|CAN/CSA C22.2 No. 18.1-04|UL QCRV.E165702|ANSI/UL 514A|BABA Compliant|RoHS Compliant
• Thickness: 0.03 in
• Product Type: Electrical Box Bracket
