Nvent C12C12 Consolet Enclosure (12 x 12 x 9.09) C12C12 HOF

Product Description

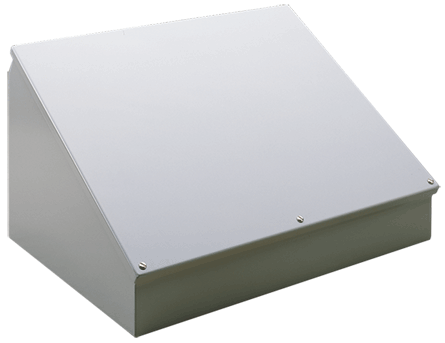

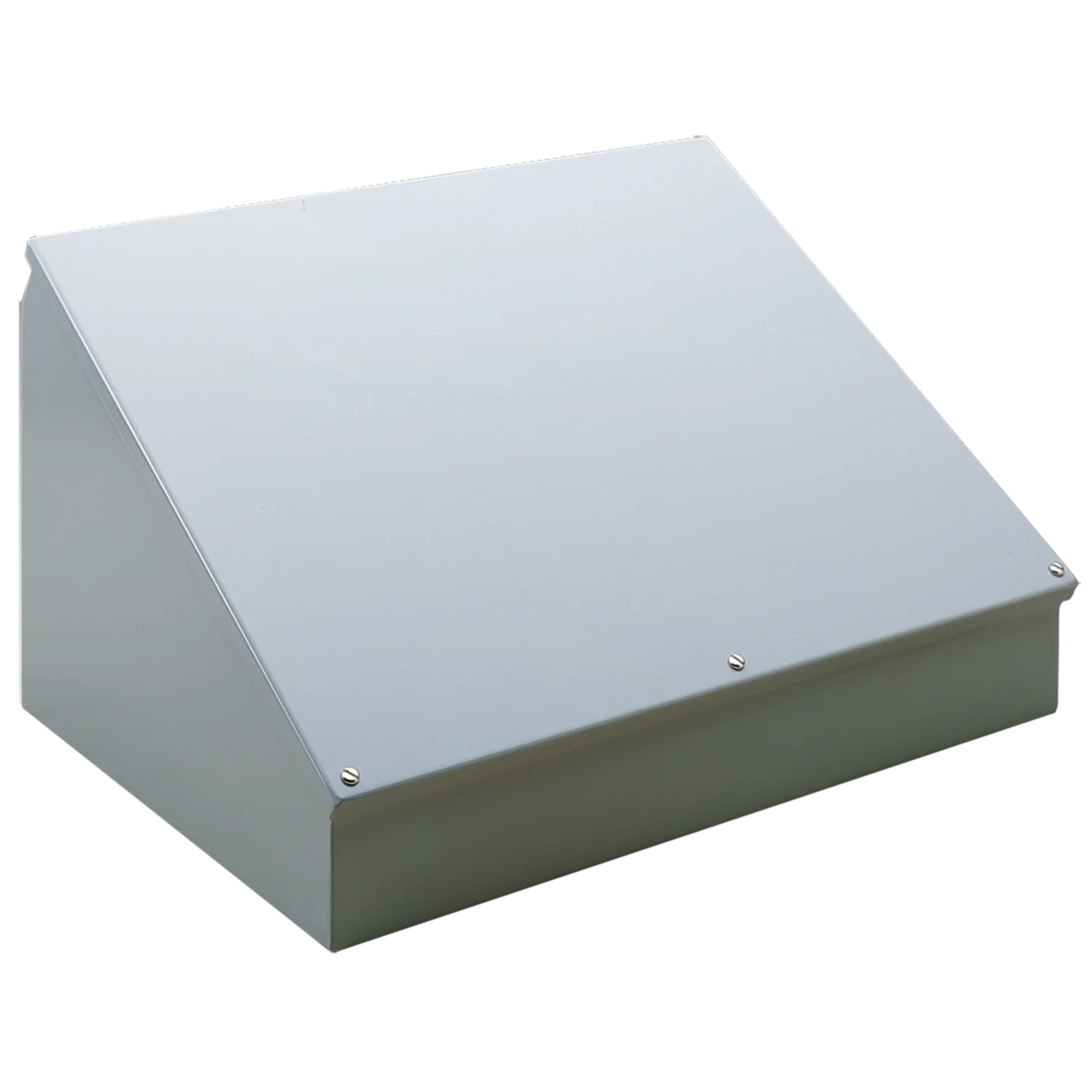

The Nvent C12C12 is a consolet Type 12 industrial enclosure constructed of mild steel with external dimensions 12.00 x 12.00 x 9.09 inches. It provides NEMA 12/13 and IP65 protection and features a continuous hinged sloped cover, oil-resistant gasket, captivated cover screws, and continuously welded seams. The enclosure is intended for mounting small control or instrumentation devices and can be positioned for 30 or 60 degree surface access.

• 14 gauge mild steel construction with painted gray (ANSI 61) polyester powder finish
• NEMA 12/13 and IP65 rated with continuously welded and ground smooth seams
• Continuous hinged sloped cover, oil-resistant gasket, captivated cover screws, and pre-installed weld nuts

Product Highlights

Type 12 consolet enclosure, 12 x 12 x 9.09 in; mild steel 14 ga; continuous hinge; NEMA 12/13 IP65

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: C12C12
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• MPN: C12C12
• Model: C12C12 HOF
• Series: C5
• Product Type: Consolet enclosure, Type 12
• Material: Mild steel
• Thickness: 14 ga
• Finish: Painted gray (ANSI 61), polyester powder paint
• External Dimensions: 12.00 x 12.00 x 9.09 in
• Height: 12 in
• Width: 12 in
• Depth: 9.09 in
• NEMA Rating: NEMA 12/13
• IP Rating: IP65
• Cover Type: Continuous hinged / sloped
• Mounting Type: Surface (can be mounted on either of two sides for desktop, pedestal or flat surface placement)
• Seams: Continuously welded and ground smooth
• Gasket: Oil-resistant gasket with adhesive
• Cover Screws: Captivated cover screws thread into sealed wells
• Bonding Provision: Yes (on cover)
• Control Panel Attachment: Control panel attached with continuous hinge
• Standards/Approvals: UL 508A Listed; cUL per CSA C22.2 No. 94; IEC 60529; NEMA/EEMAC Type 12, 13
• Weight: 14 lb
• Country of Origin: Mexico
• Bulletin Number: C5
• Catalog Number / Article Number: 59870
• UPC: 783510598709
