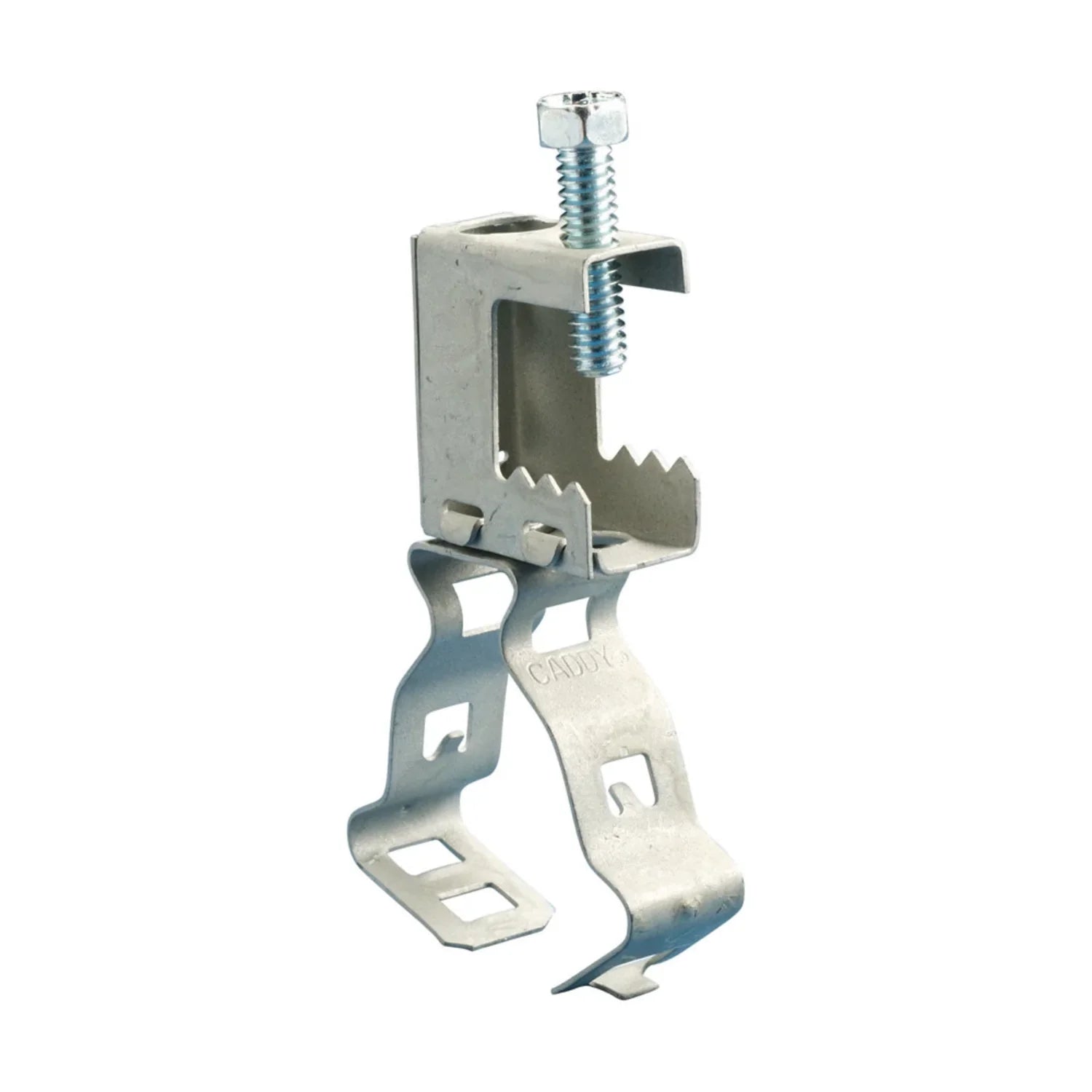

Nvent BC812M Bc-M Conduit to Beam Clamp 1/2 in, 3/4 in EMT/Pipe/Rigid Conduit replacement mpn

Product Description

The NVENT BC812M is a BC-M conduit to beam clamp designed for easy installation to beam flanges. It eliminates offset bending conduit, and the conduit clip rotates 360 degrees. It is suitable for datacom, low voltage, and electrical applications.

• Easy installation to beam flanges
• Eliminates offset bending conduit
• Conduit clip rotates 360 degrees

Product Highlights

The NVENT BC812M conduit to beam clamp provides a secure and versatile solution for mounting conduit to beams, simplifying installation and ensuring proper alignment.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: BC812M
• Country of Origin: USA (subject to change)

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1/2";3/4"
• Rigid Conduit/Pipe Size: 1/2";3/4"
• Outer Diameter (OD): 0.710" - 1.18"
• Flange Thickness (FT): 1/2" Max
• Torque (TQ): 20 ft lbf
• Static Load (F): 100lb
• Trade Size: 1/2 to 3/4IN
• Application: Datacom and Low Voltage and Electrical Applications
• Conduit Size: 1/2 in, 3/4 in EMT/Pipe/Rigid
• Load Capacity: 100 lb Static
• Product Name: Conduit to Beam Clamp
• Special Features: CLAMP,BEAM,1/2 3/4 CONDUIT 1/2 FLANGE
• Standard: cULus Listed
• Type: Snap Close Clamps
• Suitable For Use With: EMT/Rigid Conduit
• Standard & Approvals: cULus Standard
• Flange Thickness: 1/2 in
• Brand: NVENT
• Item: Beam Clamp
• Compatible Conduit Type: EMT; RMC
• Nominal Conduit/Pipe/Threaded Rod: 3/4 in
• Jaw Opening: Up to 1/2 in
• Beam Flange Thickness: 1/2 in
• Mounting Orientation: Top
• Mount: On
• Mounting Style: Clamp
• Thread Size: #10-24
• Standards: cULus
• Manufacturer Part Number: BC812M
• UNSPSC: 31162905
