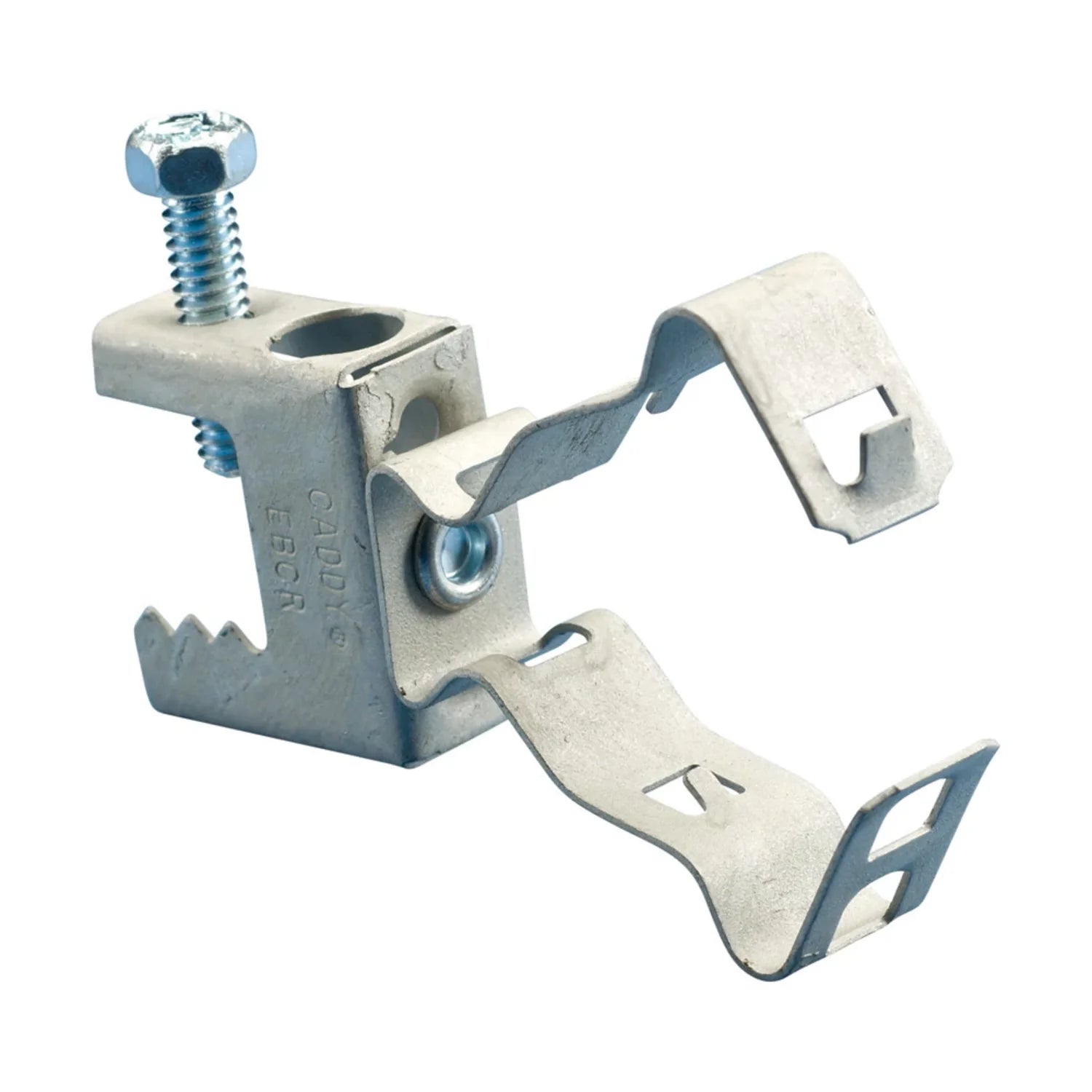

Nvent BC24MSM Conduit To Beam Clamp, Side Mount 1 1/2 inches EMT, 1 1/2 inches Rigid/Pipe, 0.5 inches Max Flange

Product Description

The NVENT BC24MSM is a conduit to beam clamp designed for side mounting. It is suitable for 1 1/2" EMT and 1 1/2" rigid/pipe conduits, accommodating a maximum flange thickness of 0.5". This clamp simplifies installation to beam flanges and eliminates the need for offset bending of conduit. The conduit clip can rotate 360 degrees for versatile positioning.

• Easy installation to beam flanges
• Eliminates offset bending conduit
• Conduit clip rotates 360 degrees

Product Highlights

The NVENT BC24MSM offers easy installation, eliminates offset bending, and provides a rotating conduit clip for flexible positioning.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: BC24MSM

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1 1/2"
• Rigid Conduit/Pipe Size: 1 1/2"
• Flange Thickness (FT): 1/2" Max
• Torque (TQ): 20 ft ·lbf
• Static Load (F): 25lb
• Diameter: 1 1/2 in
• Clamp Type: Conduit to Beam
• Conduit Position: Side
• Flange Thickness: 1/2 in.
• For Conduit Type: 1-1/2 in. EMT Conduit/1-1/2 in. Rigid Conduit
• Load Rating: 25 lb.
• Static Load: 25 lb.
• Torque: 20 lb. ft.
• Trade Size: 1-1/2 in. EMT/Rigid/Pipe
