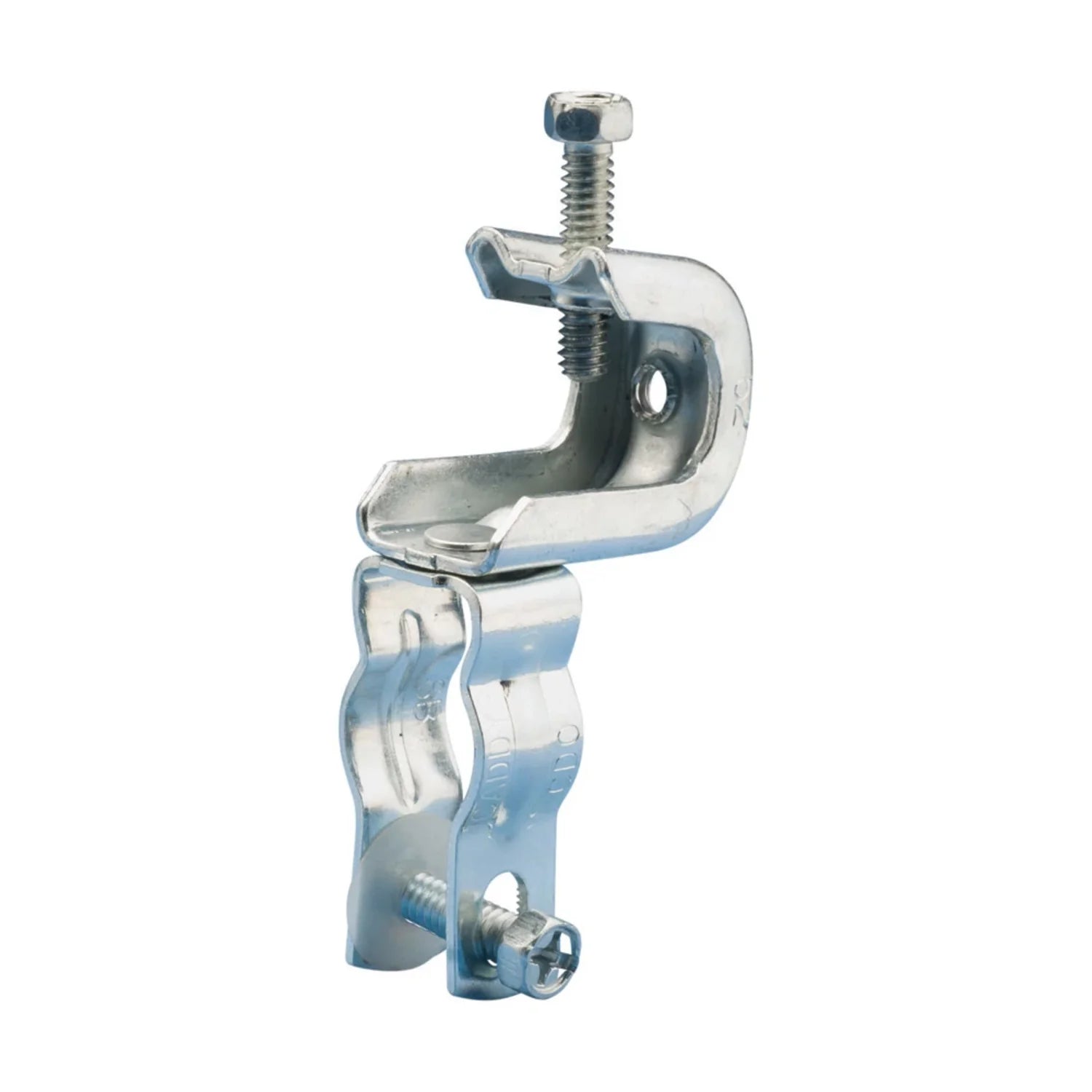

Nvent BC200CD2B Bc200-cd Conduit to Beam Clamp 1 inches EMT, 1 inches Rigid, 1/2 inches Max Flange

Product Description

The NVENT BC200CD2B BC200-CD conduit to beam clamp is designed for 1" EMT and 1" rigid conduits with a 1/2" max flange. It is ideal for electrical, mechanical, and HVAC applications. The clamp features a threaded hole on the back and eliminates offset bending conduit.

• Eliminates offset bending conduit
• Threaded hole on back
• Ideal for electrical, mechanical, and HVAC applications

Product Highlights

The BC200-CD Conduit to Beam Clamp is suitable for electrical, mechanical, and HVAC applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: BC200CD2B
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Outer Diameter (OD): 1.000" - 1.31"
• EMT Conduit Size: 1"
• Rigid Conduit Size: 1"
• Flange Thickness (FT): 1/2" Max
• Rod Size (RS): 1/4"
• Torque (TQ): 3 ft ·lbf
• Static Load (F): 100lb
• Suitable For Use With: EMT/Rigid Conduit
• Flange Thickness: 1/2 in.
• Standard & Approvals: cULus Standard, ARRA, Buy American Act Compliant
• Application: Data Communication, Low Voltage, Electrical Fixing, Fastening, HVAC and Mechanical Applications
• Type: Type BC200-CD
• Conduit Size: 1
• Load Capacity: 100
• Country of Origin: US - United States
• Use With: 1 in. Rigid or EMT Conduit
• Max. Load: 100 lbs.
• Manufacturer: nVent
• Brand: nVent CADDY
• Made in USA: Yes
• Special Features: CLAMP,BEAM,1 CONDUIT
• Standard: cULus®
