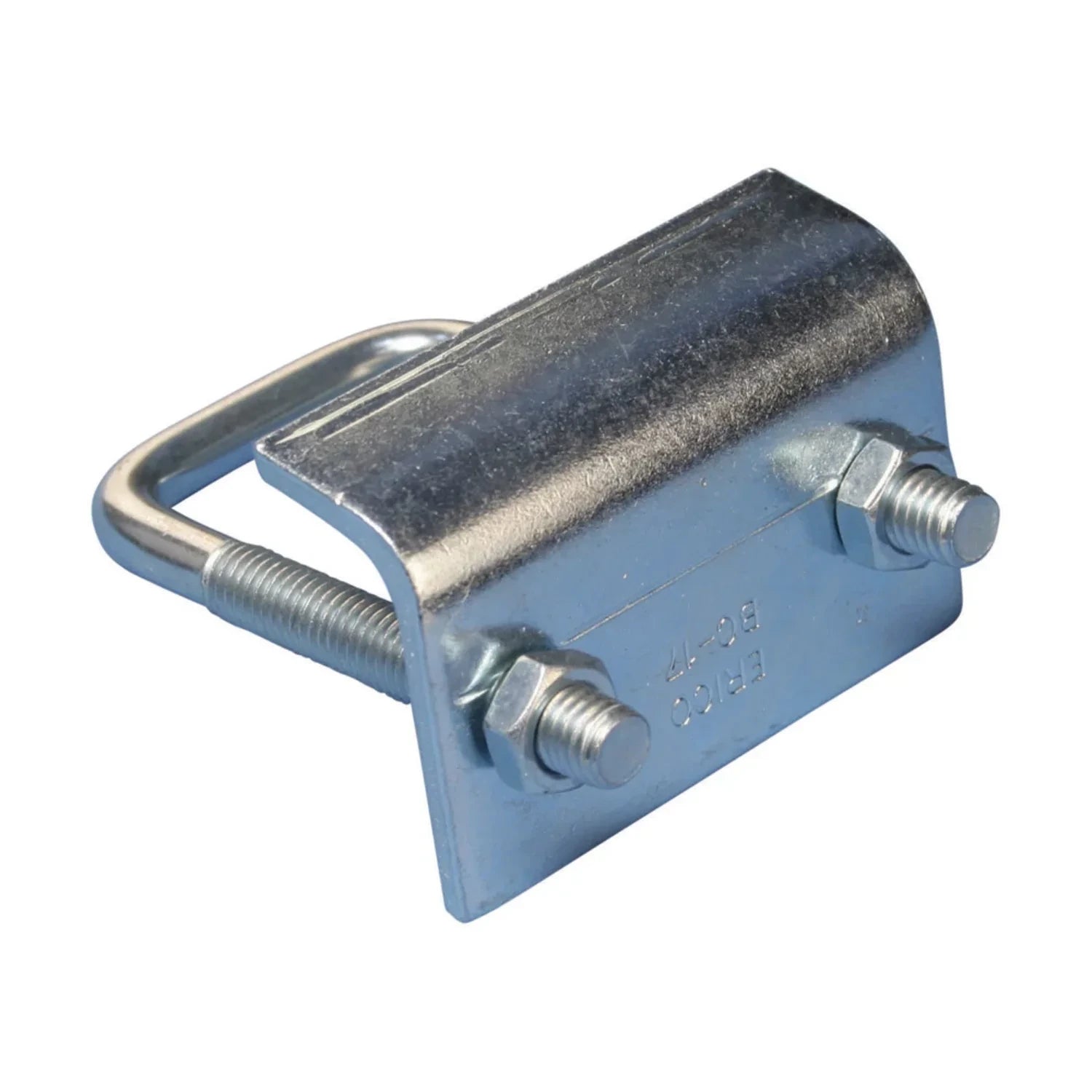

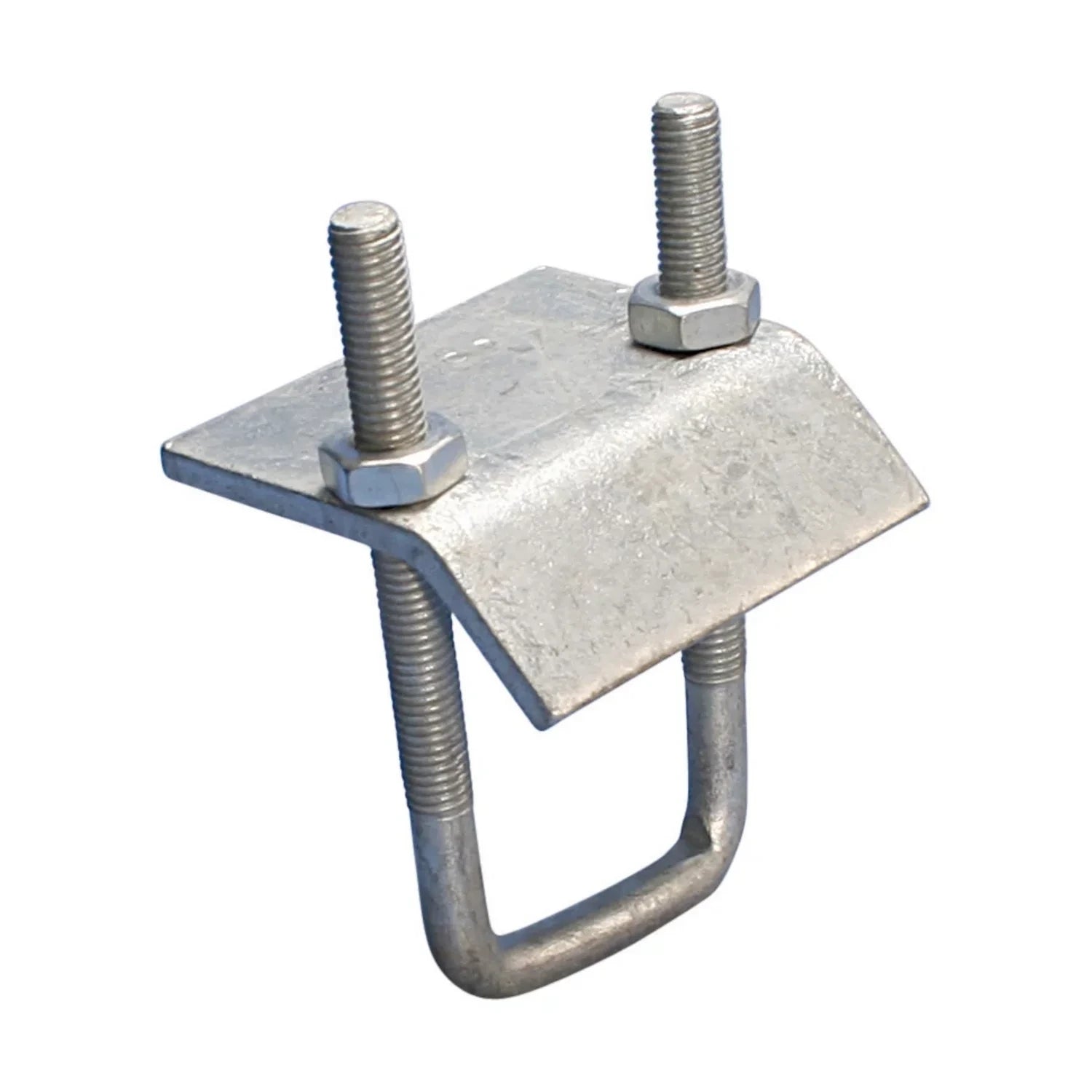

Nvent BC17A000EG Dual purpose strut beam clamp with U-bolt and nut (13/16 in flange)

Product Description

nVent BC17A000EG is a dual-purpose strut beam clamp supplied with a U-bolt and nut for securing A and C Eristrut channels. The steel clamp has an electro-galvanized finish, accepts 3/8 in rod, fits flange thickness up to 13/16 in, and has a 1200 lb static load rating (based on one pair). Dimensions are approximately 1-11/16 in H x 3 in W x 1/4 in thickness and it requires installation in pairs.

• Steel construction with electro-galvanized finish; supplied complete with U-bolt and nuts
• Fits nVent CADDY Type A (1-5/8 in x 1-5/8 in) and Type CC (13/16 in x 1-5/8 in) strut; rod size 3/8 in; flange thickness up to 13/16 in
• Static load rating 1200 lb (based on one pair); dimensions ~1-11/16 in H x 3 in W x 1/4 in thickness; requires installation in pairs

Product Highlights

Dual-purpose electro-galvanized steel beam clamp for A and C strut; 3/8 in rod; 13/16 in flange; 1200 lb static load (pair)

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: BC17A000EG

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: BC17A000EG
• Product Type: Dual purpose strut beam clamp
• Material: Steel
• Finish: Electro-galvanized
• Flange Thickness (Max): 13/16 in
• Rod Size: 3/8 in
• Static Load Capacity: 1200 lb (static, based on one pair)
• Dimensions: 1.6875 in H x 3 in W x 0.25 in thickness
• Overall Length: 3-3/8 in
• Compatible Strut Types: nVent CADDY Type A 1-5/8 in x 1-5/8 in; Type CC 13/16 in x 1-5/8 in
• Includes: U-bolt and nuts
• Installation: Requires installation in pairs
• Applications: Datacom and low voltage; electrical; fire sprinkler; HVAC; plumbing and refrigeration; spanning bar joist applications
• Weight (lbs): 0.73
• UPC: 782856340171
• GTIN / EAN: 0782856340171
