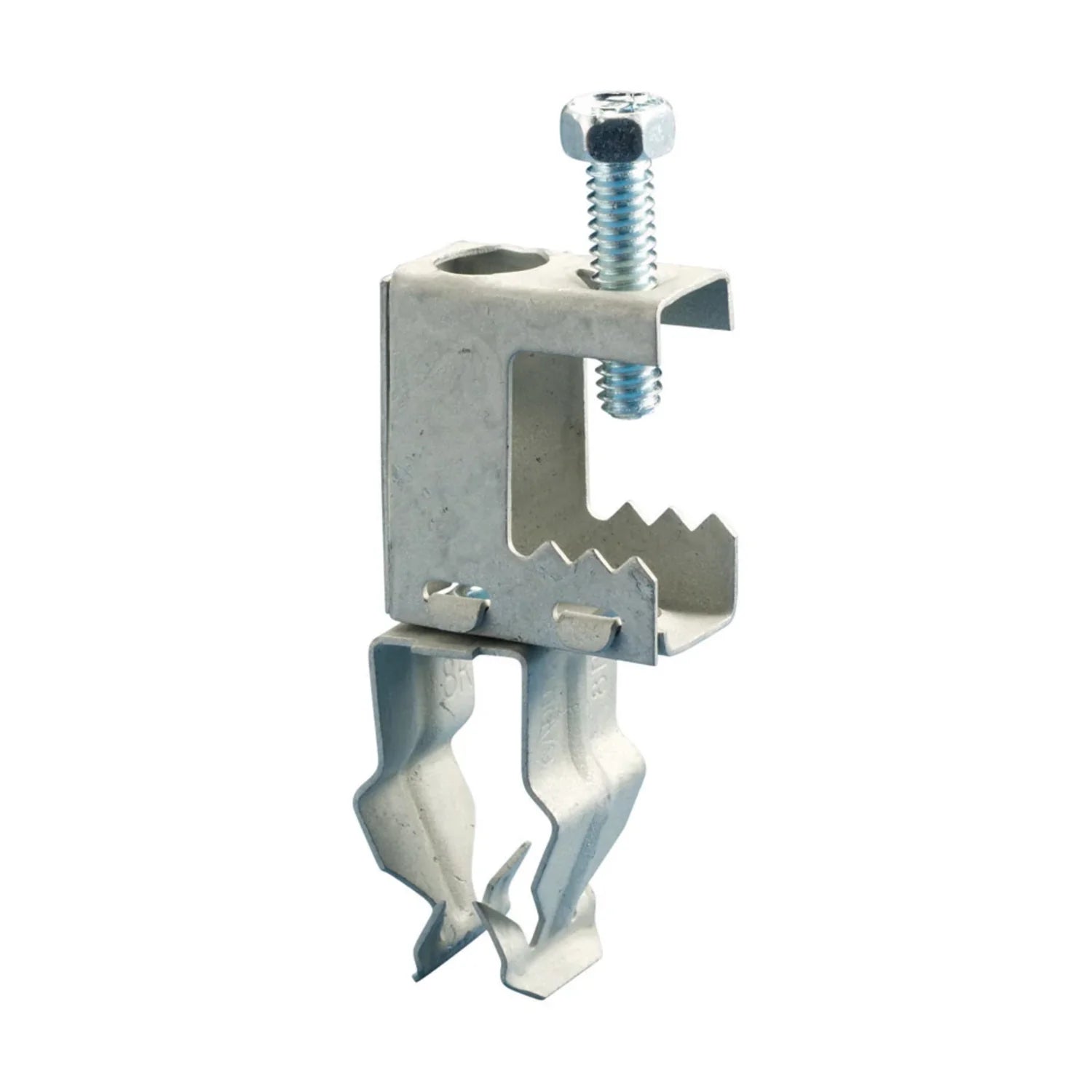

Nvent BC12P BC-P Conduit to Beam Clamp, 3/4 inches EMT, 1/2 inches Rigid, 0.5 inches Max Flange

Product Description

The NVENT BC12P is a BC-P conduit to beam clamp designed for easy installation to beam flanges. It eliminates offset bending conduit and is suitable for 3/4" EMT or 1/2" rigid conduit with a max flange of 1/2 in. and a load rating of 25 lb. Ideal for datacom, low voltage, and electrical applications.

• Easy installation to beam flanges
• Eliminates offset bending conduit
• Suitable for 3/4" EMT or 1/2" rigid conduit

Product Highlights

BC-P Conduit to Beam Clamp, 3/4" EMT, 1/2" Rigid, 0.5" Max Flange, Load Rating 25 lb.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: BC12P
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4"
• Rigid Conduit Size: 1/2"
• Flange Thickness (FT): 1/2" Max
• Torque (TQ): 20 ft ·lbf
• Ultimate Static Load (F): 25lb
• Use With: 3/4 in. EMT or 1/2 in. Rigid Conduit
• Flange Thickness: 1/2 in.
• Applications: Datacom and Low Voltage, Electrical
• Trade Size: 1/2 Inch
• Type: BC-P Conduit to Beam Clamp
• Brand: nVent Caddy
• Sub Brand: CADDY
