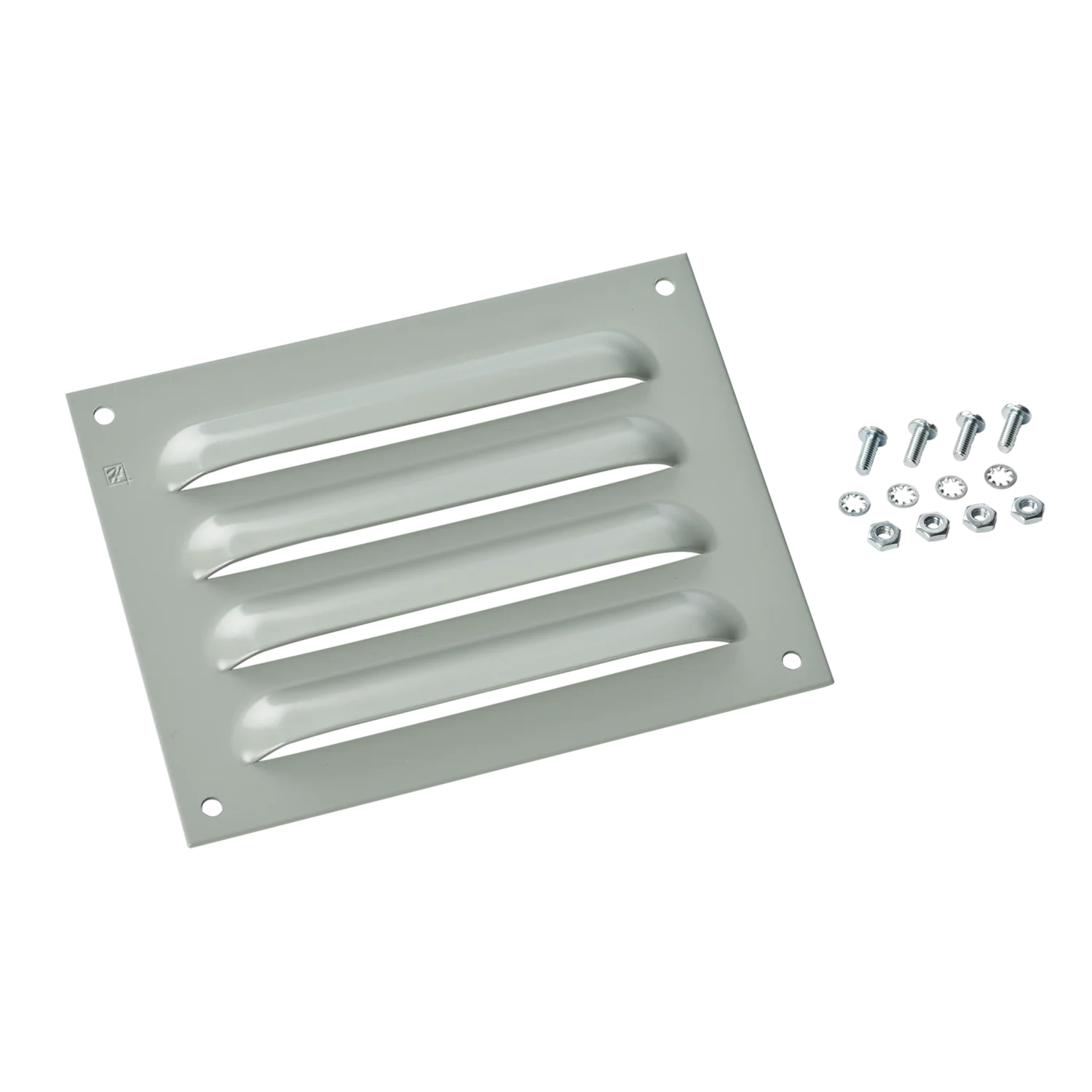

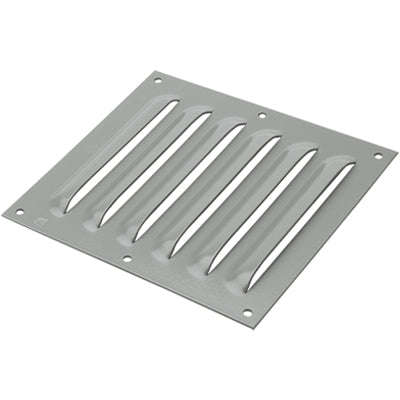

Nvent AVK812 Louver Plate Kit (15.31 x 9.50 inch)

Product Description

The Nvent AVK812 is a louver plate kit that provides ventilation for enclosures by permitting airflow to reduce internal heat and moisture. The plate is constructed from 14-gauge mild steel with a polyester powder finish and includes 12 louvers and mounting hardware for field installation. Dimensions are 15.31 x 9.50 inches with a usable area of 24.22 in2 and a nominal thickness of 14 ga.

• Constructed from 14-gauge mild steel with ANSI 61 polyester powder finish; powder coated for corrosion resistance
• Includes 12 louvers and mounting hardware; field-installable by cutting appropriate cutout
• Usable area 24.22 in2; external dimensions 15.31 in (H) x 9.50 in (W); weight 3.2 lb

Product Highlights

Louver plate kit for enclosure ventilation with 12 louvers, 14-ga steel construction, and 24.22 in2 usable area

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: AVK812

Technical Specifications

• Manufacturer: Nvent
• Manufacturer Part Number: AVK812
• Catalog Number / Article Number: 25000
• Product Name: Louver Plate Kit
• Material: Mild steel (14 ga)
• Thickness: 14 ga
• Louvre Quantity: 12
• Usable Area: 24.22 in2
• External Height: 15.31 in (388.9 mm)
• External Width: 9.50 in (241 mm)
• External Depth: 0.31 in
• Finish: Polyester powder coat (ANSI 61)
• For Use With: Enclosures
• Mounting: Hardware furnished for mounting; field-installable
• Weight: 3.2 lb
• RoHS Compliant: Yes
• SVHC: No SVHC (15-Jan-2019)
• US ECCN: EAR99
• UPC: 783510250003
• EAN: 8713574254800
• Standard Packaging Quantity: 1
• Bulletin Number: D85
