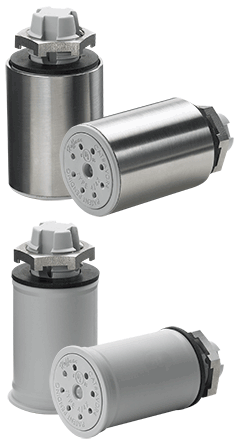

nVent AVDR4SS4 Hoffman H20 Vent Drain 1.38 in Dia x 2 in L

Product Description

The nVent AVDR4SS4 is a Hoffman Vent Drain designed for use with NPT/NPS threaded conduit hubs. It is made from 304 stainless steel, ensuring durability and resistance to corrosion.

• Uses gravity to remove collected liquids.
• Helps reduce corrosion that can limit the life of internal electrical and electronic components.
• Installs in a seven-eighths inch hole in the bottom of the enclosure.

Product Highlights

This vent drain maintains the UL type rating of the enclosure when installed properly. It is suitable for mild steel, aluminum, stainless steel, or non-metallic enclosures.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351017764

Technical Specifications

• Dimensions: 1.38 inches diameter x 2 inches length
• Material: 304 stainless steel
• Series: H20
• Standards/Approvals: UL 508A, File No. E61997; CSA C22.2 File No. 94, E61997; RoHS Compliant
• Suitable For Use With: NPT/NPS threaded conduit hub
