Product Description

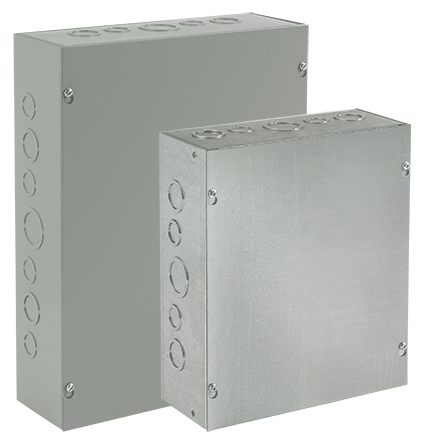

The nVent HOFFMAN Pull Box, MPN ASG6X6X4, is designed for commercial and general industrial applications. This pull box measures six inches in width, four inches in depth, and six inches in height. It features a screw cover and is rated NEMA 1/IP30. The box includes various knockouts that accommodate cable entry sizes, making it versatile for different wiring needs.
- Constructed from steel with a polyester powder finish.
- Includes (4) knockouts for three-quarter to one-inch cables.
- Supports (8) knockouts for half to three-quarter inch cables at the bottom, sides, and top.
Product Highlights
This pull box is ideal for tight wiring situations and can be flush-mounted for a clean finish. The product is robust and includes features that support efficient installation and grounding provisions.
Product Information
Standard Information
-
Manufacturer: nVent
-
UPC: 78351042010
Technical Specifications
-
Application: Commercial and General Industrial Applications
-
Cable Entry Size: (4) 3/4 to 1 in Knockout, (8) 1/2 to 3/4 in Knockout Bottom/Sides/Top
-
Color: Gray
-
Cover Type: Screw
-
Depth: 4 in
-
Finish: Polyester Powder Painted
-
Height: 6 in
-
Manufacturer Part Number: ASG6X6X4
-
Material: Steel
-
Mounting Type: Flush
-
NEMA Rating: NEMA 1/IP30
-
Series: A90P1
-
Standards/Approvals: cUL Listed per CSA C22.2 File No. 40 File No. E27525|IEC 60529|UL 50/50E Listed File No. E27525
-
Width: 6 in
