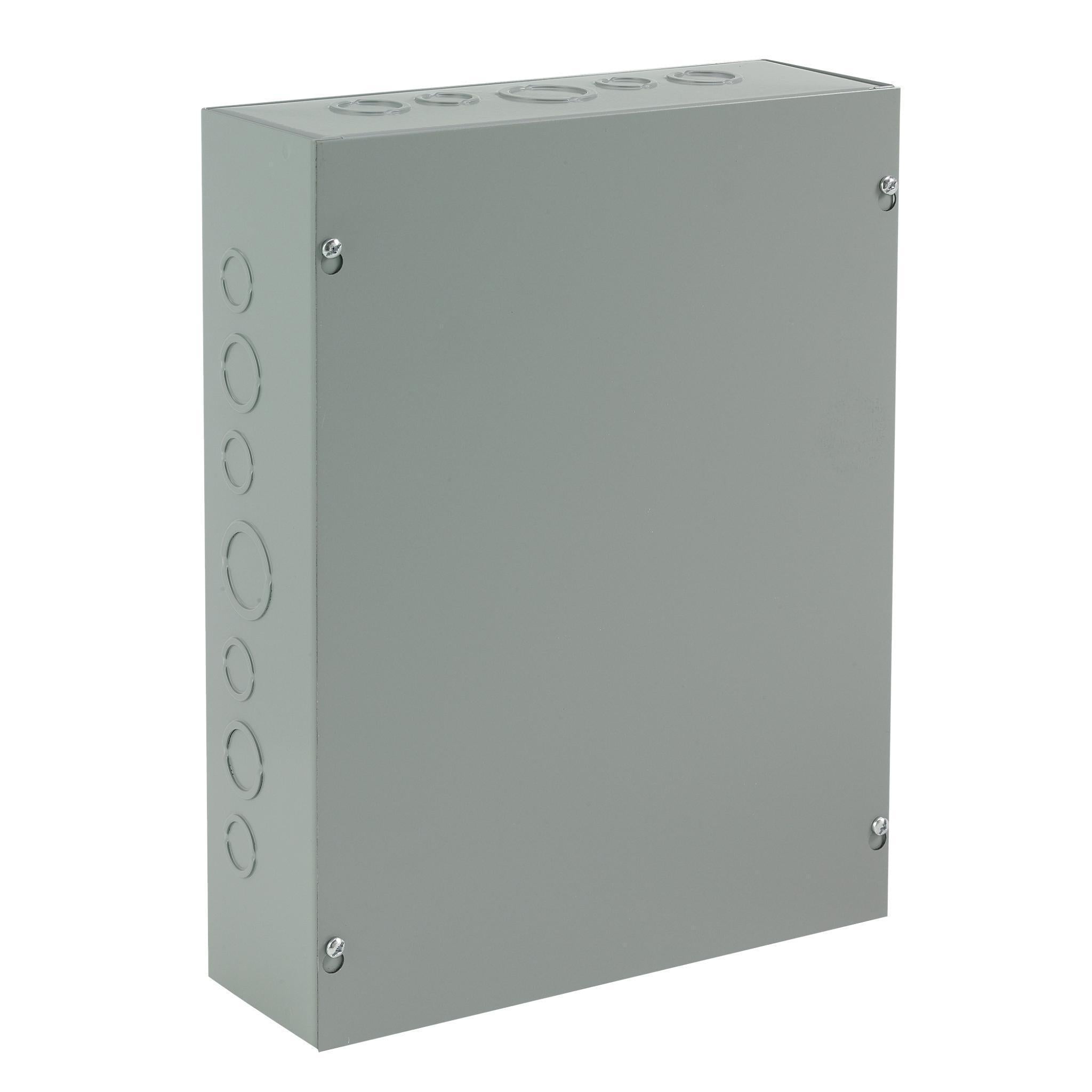

Nvent ASE4X4X4 A90P1 Pull Box with Knockout (4 in x 4 in x 4 in)

Product Description

The Nvent ASE4X4X4 (A90P1) is a steel pull/junction box designed for commercial and general industrial applications. The enclosure measures 4 in x 4 in x 4 in and features a screw-mounted flat cover, polyester powder painted finish, and multiple concentric knockouts for conduit or cable entry. The box provides grounding provisions and mounting holes on the back and is rated NEMA 1 / IP30 for indoor use.

• Steel construction with polyester powder paint finish and flat screw-mounted cover
• Multiple concentric knockouts: (4) 3/4 to 1 in and (4) 1/2 to 3/4 in on bottom, sides, and top for cable entry
• NEMA 1 / IP30 rated with provision for grounding and mounting holes on back of box

Product Highlights

NEMA 1/IP30 steel pull/junction box, 4 x 4 x 4 in, screw cover, multiple conduit knockouts

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE4X4X4
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: nVent
• Brand Name: nVent Hoffman
• Manufacturer Part Number: ASE4X4X4
• Series: A90P1
• Width: 4 in
• Height: 4 in
• Depth: 4 in
• Material: Steel (mild steel)
• Body Thickness: 16 ga
• Finish: Polyester powder painted / Painted
• Cover Type: Screw-mounted flat cover
• Mounting Type: Flush (mounting holes on back of box)
• Cable Entry / Knockouts: (4) 3/4 to 1 in knockouts and (4) 1/2 to 3/4 in knockouts on bottom/sides/top
• Knockouts Included: Yes
• NEMA Rating: NEMA 1
• IP Rating: IP30
• Standards/Approvals: UL 50/50E Listed; cUL Listed per CSA C22.2 No. 40; IEC 60529; File No. E27525
• Weight: 1.9 lb
• UPC: 783510429904
• Country of Origin: Mexico
• Bulletin Number: A90P1
