Nvent ASE24X24X8 Screw Cover Pull Box 24 x 24 x 8 (HOASE24X24X8)

Product Description

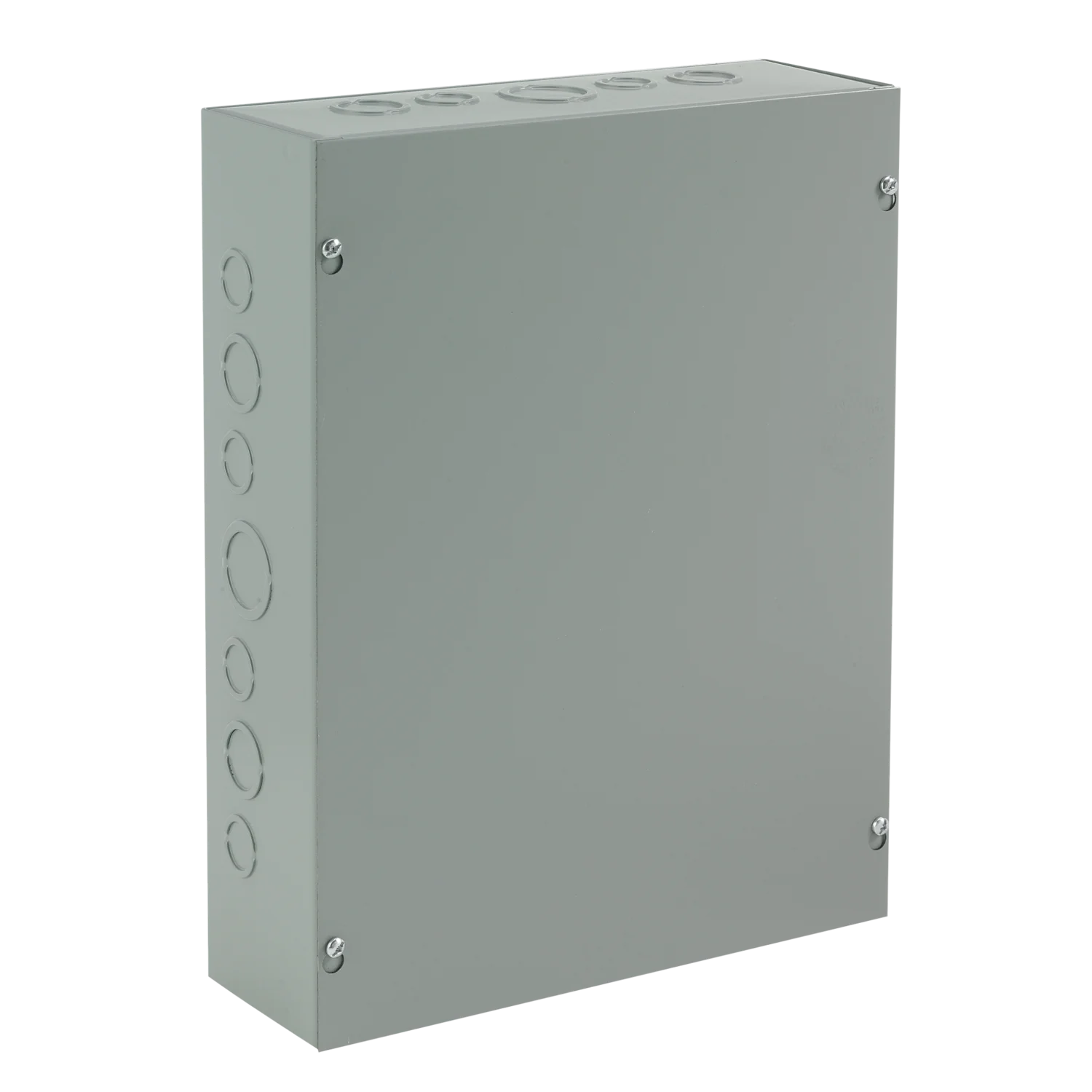

The Nvent ASE24X24X8 is a screw-cover pull/junction box (Series A90P1) constructed from steel with a polyester powder painted finish. It measures 24 in height x 24 in width x 8 in depth and is rated NEMA 1 / IP30. The enclosure includes multiple concentric knockouts for cable entry, a removable screw-fastened cover, provisions for grounding, and mounting holes on the back for flush installations.

• Dimensions: 24 in H x 24 in W x 8 in D; steel construction with polyester powder painted finish
• Knockouts: (16) 3/4 to 1 in; (16) 1/2 to 3/4 in; (4) 1 to 1-1/4 in on bottom, sides, and top; flat removable screw cover
• Standards: NEMA 1 / IP30; UL 50/50E Listed; cUL Listed per CSA C22.2; IEC 60529; provision for grounding and back mounting holes

Product Highlights

24 x 24 x 8 in steel NEMA 1/IP30 screw-cover junction box with multiple knockouts

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE24X24X8
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: ASE24X24X8
• Brand: Nvent
• Series: A90P1
• Material: Steel (mild steel)
• Finish: Polyester powder painted (painted gray)
• Height: 24 in
• Width: 24 in
• Depth: 8 in
• NEMA Rating: NEMA 1
• IP Rating: IP30
• Cover Type: Screw cover (flat, removable)
• Cover Screw Quantity: 4
• Knockouts: (16) 3/4 to 1 in; (16) 1/2 to 3/4 in; (4) 1 to 1-1/4 in (bottom/sides/top)
• Mounting Type: Flush
• Grounding Provision: Provision for grounding
• Mounting Holes: Mounting holes on back of box
• Body Thickness: 14 ga
• Door Thickness: 16 ga
• Weight: 39 lb
• Country of Origin: Mexico
• Standards/Certifications: UL 50/50E Listed; cUL Listed per CSA C22.2 No. 40; IEC 60529 (IP30); File No. E27525
• EECO Number / Replacement MPN: HOASE24X24X8
