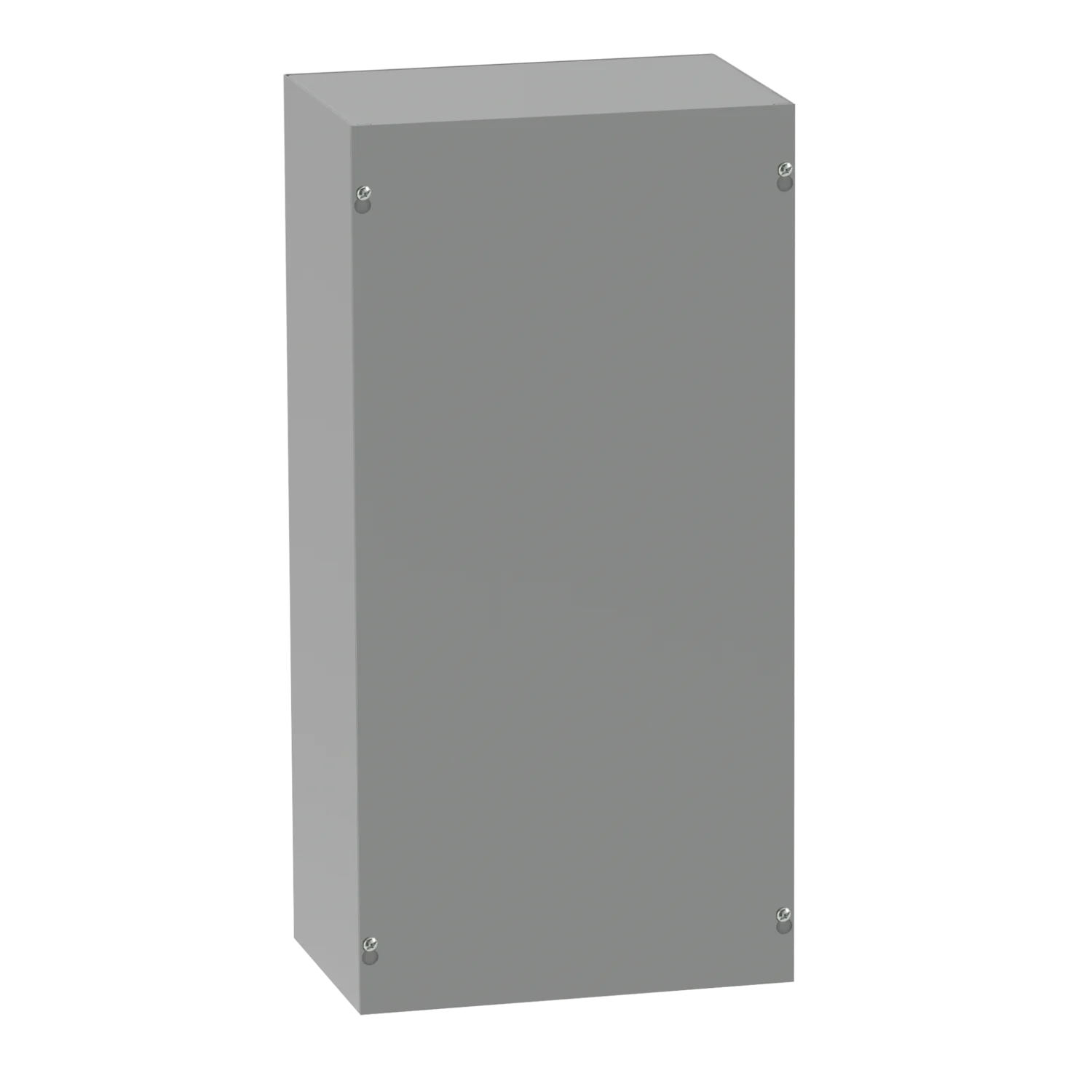

Nvent ASE16X12X6NK Pull Box 16 x 12 x 6 in

Product Description

The Nvent ASE16X12X6NK pull box is a nVent Hoffman screw-cover enclosure designed for commercial and general industrial junction and pull box applications. It is a flush-mount steel enclosure measuring 12 in W x 6 in D x 16 in H with a polyester powder painted finish, NEMA 1/IP30 rating and no knockouts. The flat removable cover is secured with plated steel screws and the box includes grounding provision and rear mounting holes.

• Steel construction with polyester powder painted finish; dimensions 16 in H x 12 in W x 6 in D; flat screw-cover secured with four plated steel screws
• NEMA 1 / IP30 rated; UL 50/50E and cUL listed; IEC 60529 compliance (A90P1 series)
• No knockouts; provision for grounding; mounting holes on back; optional flush covers and door frames available separately

Product Highlights

Steel NEMA 1/IP30 screw-cover pull/junction box, 16 x 12 x 6 in, no knockouts, A90P1 series

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE16X12X6NK
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: ASE16X12X6NK
• Series: A90P1
• Product Type: Pull/Junction box (Type 1 screw-cover)
• Material: Steel
• Finish: Polyester powder painted
• Height: 16 in
• Width: 12 in
• Depth: 6 in
• Dimensions: 16 in H x 12 in W x 6 in D
• NEMA Rating: NEMA 1
• IP Rating: IP30
• Cover Type: Flat, screw-cover
• Cover Screw Quantity: 4
• Knockouts Included: No
• Mounting Type: Flush
• Provision for Grounding: Yes
• Mounting Holes Location: Back of box
• Material Gauge: 16/14/12 ga
• Weight: 12.7 lb
• Standards/Approvals: UL 50/50E Listed; cUL Listed per CSA C22.2; IEC 60529; File No. E27525
• UPC: 783510864606
• Country of Origin: Mexico
• UNSPSC: 39121303
• Bulletin Number: A90P1
